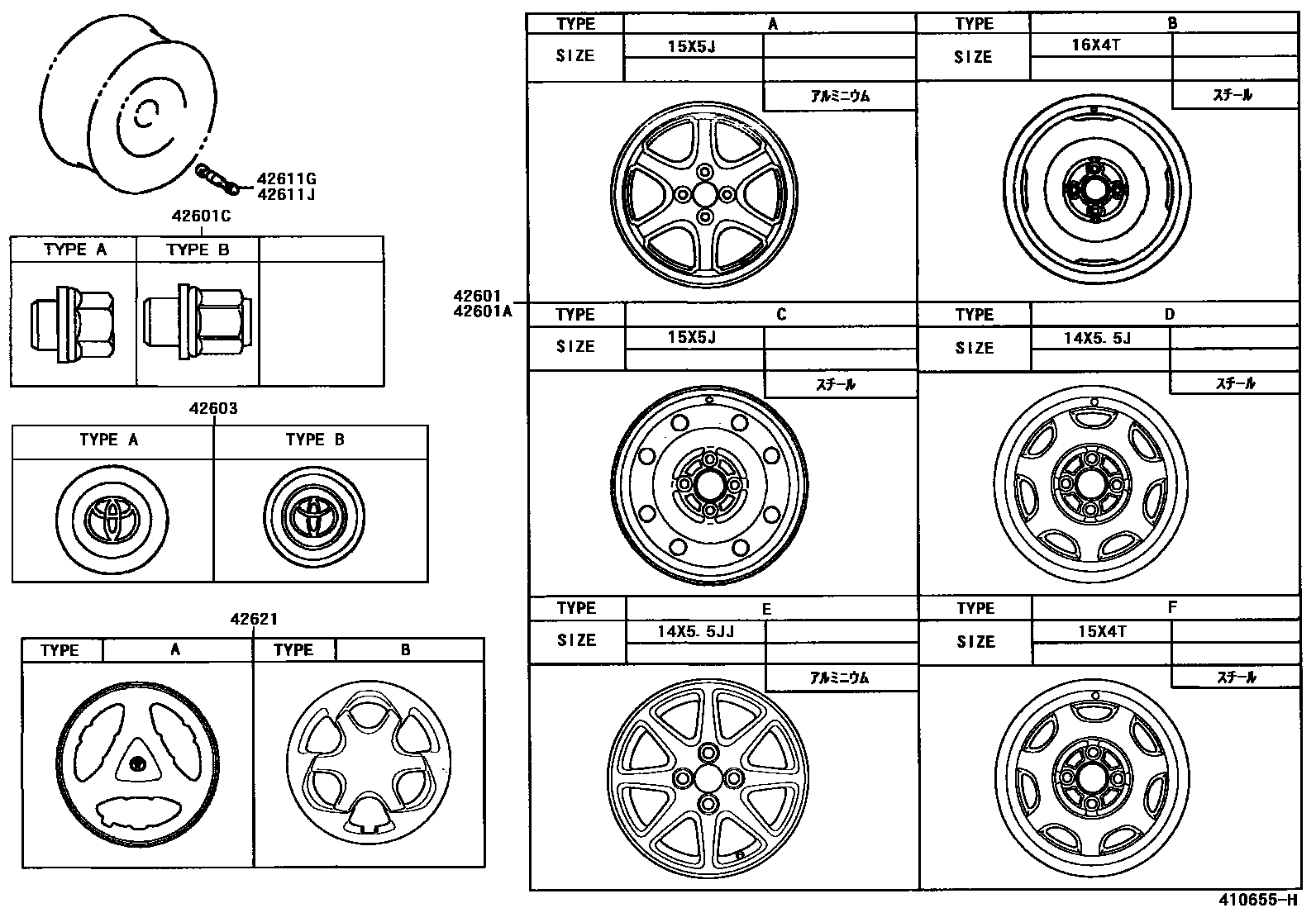

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-1A250-03×4iNHW11200005

main42611-47010×4iNHW10199712-200005

main42611-47020×4iNHW1#199712

main42611-47030×4iNHW11200108

main42611-47040×4iNHW11200005

42601AWHEEL, DISC (FOR SPARE)

main42611-10320iNHW10199712-199906

main42611-10321iNHW1#199906

main42611-1A010iNHW11200108

main42611-47010iNHW10199712-200005

main42611-47030iNHW11200108

main42611-47040iNHW11200005

42601CNUT, HUB (FOR AXLE)

main90942-01033×16iNHW11200005

main90942-01062×16iNHW10199712-200005

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20620×4iNHW11200108

main42603-52030×4iNHW11200005

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNHW1#199712

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNHW1#199712

42621CAP, WHEEL

main42602-47010×4iNHW11200005

main42602-47020×4iNHW11200208-200303

main42603-47010-B0×4iNHW10199901-200005

main42603-47010-H0×4iNHW10199712-200005

main42603-47010-K0×4iNHW10199712-200005

main42603-47020-B0×4iNHW10199911-200005

7 parts on this diagram · 3 diagrams in section
