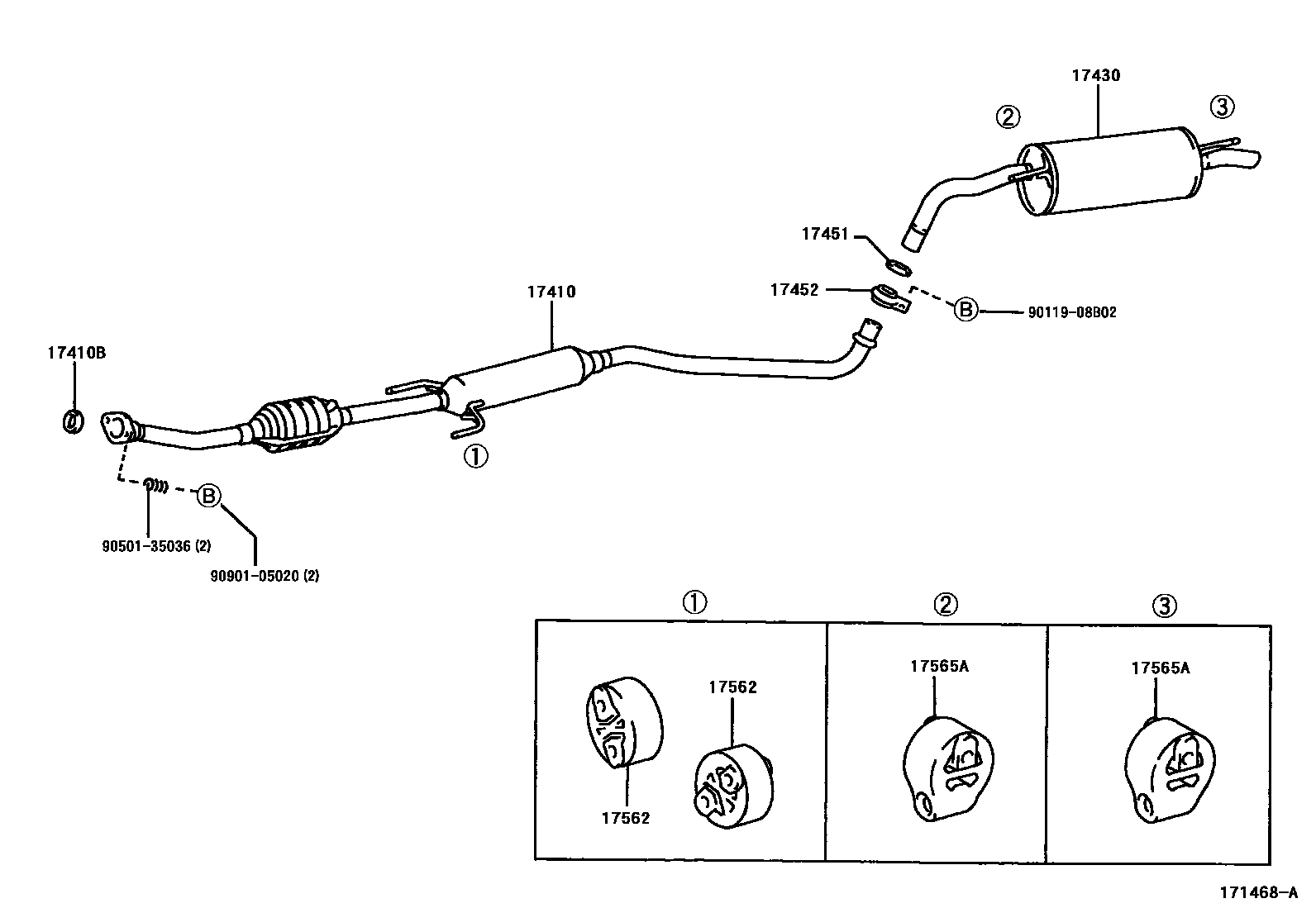

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21030i1NZFXE..NHW10199712-200005

main17410-21270i1NZFXE..NHW11200005

17410BGASKET, EXHAUST PIPE

main17451-16030i1NZFXE..NHW10199712-199803

main17451-21010i1NZFXE..NHW10199803-200005

main17451-21040i1NZFXE..NHW11200005

17430PIPE ASSY, EXHAUST, TAIL

main17430-21010i1NZFXE..NHW10199712-200005

main17430-21170i1NZFXE..NHW11200005

17451GASKET, EXHAUST PIPE

main90917-06081i1NZFXE..NHW1#199712

17452CLAMP, EXHAUST PIPE

main90461-16066i1NZFXE..NHW1#199712

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-21020×2i1NZFXE..NHW10199712-200005

main17562-21021×2i1NZFXE..NHW11200005

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-21010×2i1NZFXE..NHW1#199712

9011908B02

main90119-08B02

9050135036

main90501-35036

9090105020

main90901-05020

10 parts on this diagram · 2 diagrams in section
