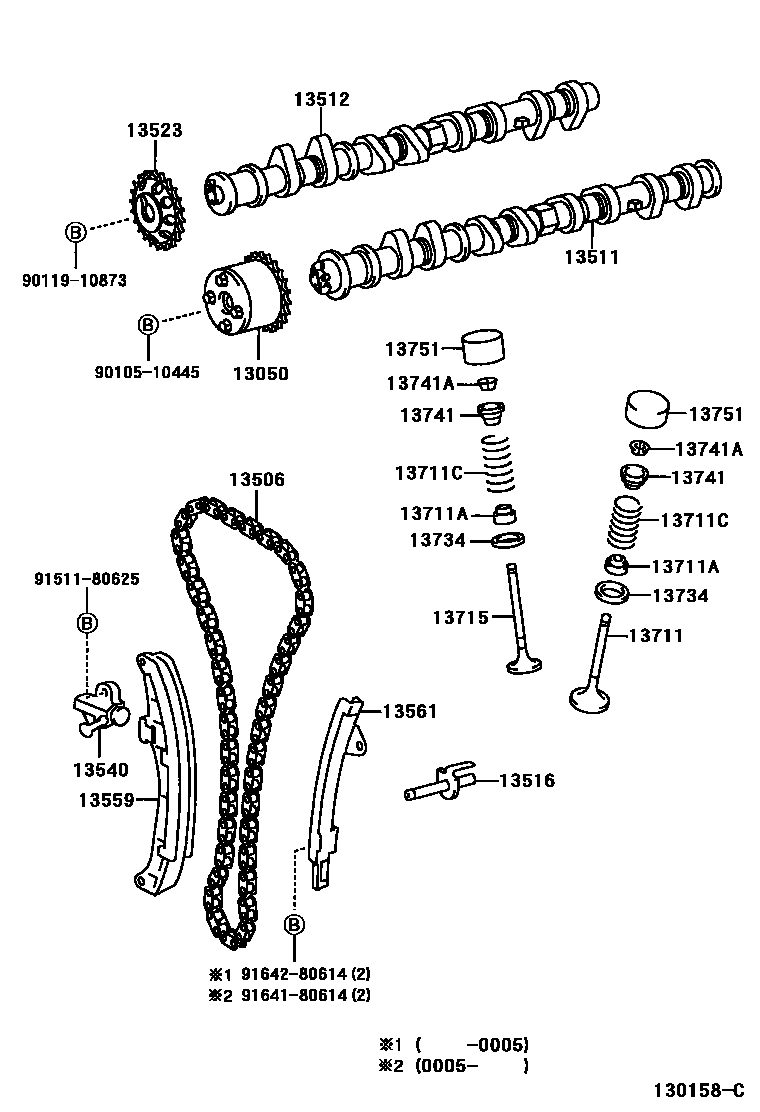

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13512CAMSHAFT, NO.2
13516JET, OIL
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711CSPRING, COMPRESSION(FOR OUTER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
9010510445
main90105-10445
9011910873
main90119-10873
9151180625
main91511-80625
9164180614
main91641-80614
9164280614
main91642-80614
22 parts on this diagram · 1 diagram in section
