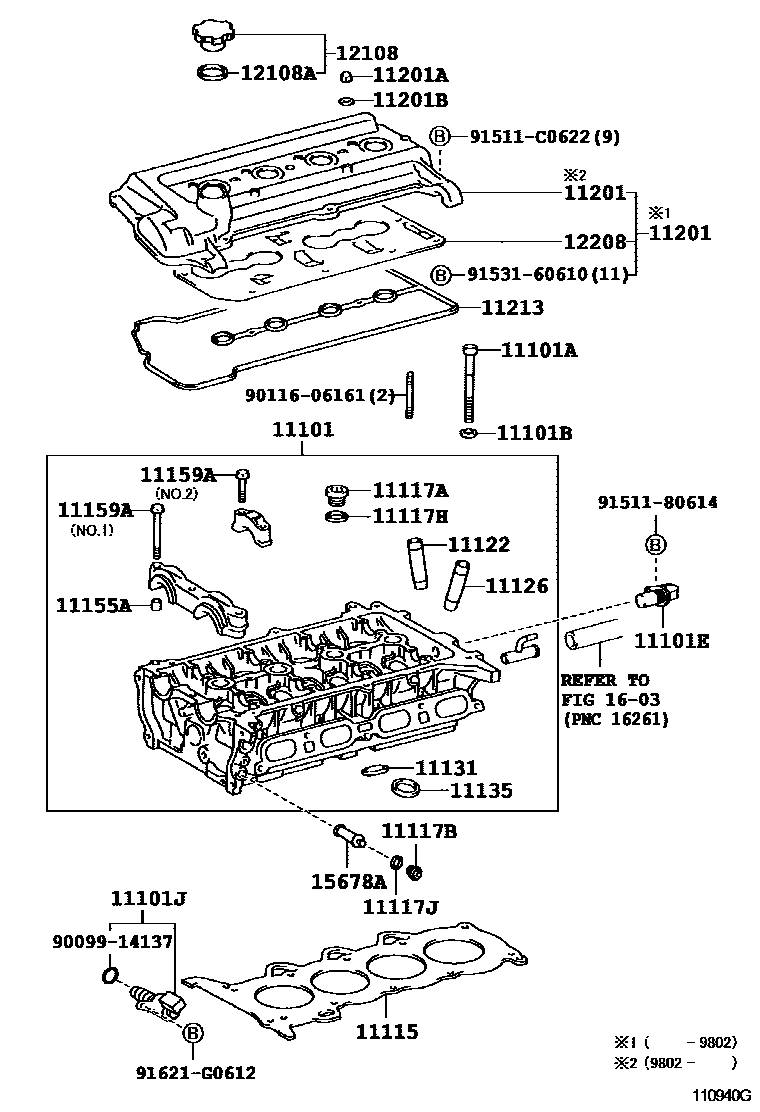

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21020i1NZFXE..NHW10199712-200005

main11101-21031i1NZFXE..NHW11200005-200304

sub11101-21033

main11101-21033i1NZFXE..NHW11200304-200305

sub11101-21034

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126i1NZFXE..NHW1#199712-200305

sub90910-02170

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZFXE..NHW1#199712-200305

11101ESENSOR, CAM POSITION

main90919-05024i1NZFXE..NHW1#199712-200305

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21010i1NZFXE..NHW1#199712-200112

sub15330-21011

main15330-21011i1NZFXE..NHW11200112-200305

11115GASKET, CYLINDER HEAD

main11115-21020i1NZFXE..NHW10199712-200005

main11115-21030i1NZFXE..NHW11200005-200302

sub11115-21040

main11115-21040i1NZFXE..NHW11200302-200305

sub11115-21050

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFXE..NHW1#199712-200305

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFXE..NHW1#199712-200305

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFXE..NHW1#199712-200305

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFXE..NHW1#199712-200305

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1NZFXE..NHW1#199712

main11123-21010i1NZFXE..NHW1#199712

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1NZFXE..NHW1#199712

main11123-21010i1NZFXE..NHW1#199712

11131SEAT, INTAKE VALVE

main11131-21010i1NZFXE..NHW10199712-199908

sub11131-21020

main11131-21020i1NZFXE..NHW1#199908-200305

sub11131-21021

main11132-21010i1NZFXE..NHW10199712-199908

sub11132-21020

main11132-21020i1NZFXE..NHW1#199908-200308

sub11132-21021

11135SEAT, EXHAUST VALVE

main11135-21010i1NZFXE..NHW10199712-200005

main11135-21020i1NZFXE..NHW11200005-200208

sub11135-21041

main11135-21040i1NZFXE..NHW11200208-200305

sub11135-21041

main11136-21010i1NZFXE..NHW10199712-200005

main11136-21020i1NZFXE..NHW11200005-200208

main11136-21040i1NZFXE..NHW11200208-200308

11155APIN, RING W/HEAD

main90253-12001i1NZFXE..NHW10199712-200005

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1NZFXE..NHW1#199712-200305

main90119-08A29i1NZFXE..NHW1#199712-200305

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21040i1NZFXE..NHW10199712-199802

sub11201-21041

sub12208-21010

sub91531-60610

main11201-21041i1NZFXE..NHW10199802-200005

main11201-21060i1NZFXE..NHW11200005-200105

sub11201-21061

main11201-21061i1NZFXE..NHW11200105-200305

sub11201-21062

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-06028i1NZFXE..NHW10199712-200005

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1NZFXE..NHW1#199712-200305

11213GASKET, CYLINDER HEAD COVER

main11213-21010i1NZFXE..NHW10199712-199908

sub11213-21011

main11213-21011i1NZFXE..NHW1#199908-200305

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFXE..NHW11200005-200305

main12180-55010i1NZFXE..NHW10199712-200005

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i1NZFXE..NHW1#199712-200305

12208PLATE SUB-ASSY, VENTILATION BAFFLE

main12208-21010i1NZFXE..NHW10199712-199908

sub12208-21020

main12208-21020i1NZFXE..NHW10199908-200005

sub12208-21021

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFXE..NHW1#199712-200305

1603

9009914137

main90099-14137

9011606161

main90116-06161

9151180614

main91511-80614

91511C0622

main91511-C0622

9153160610

main91531-60610

91621G0612

main91621-G0612

31 parts on this diagram · 2 diagrams in section
