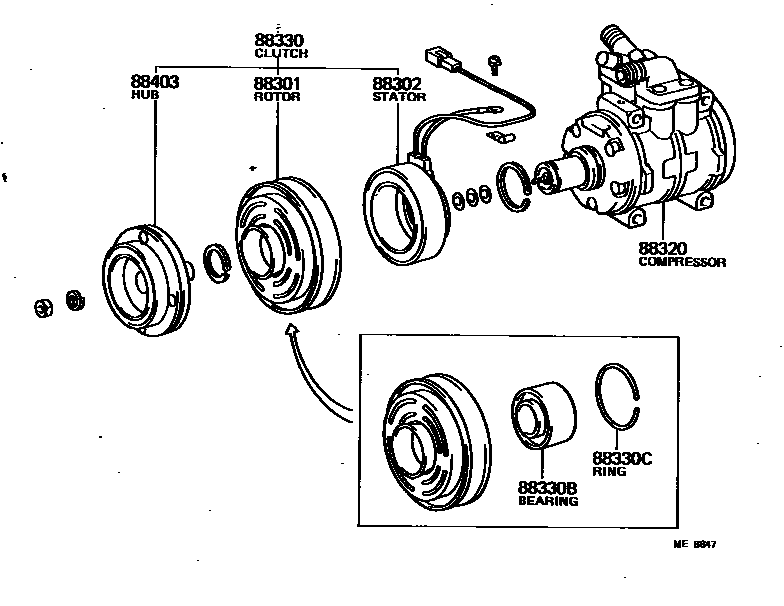

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12110iAA63198305-198507

main88412-14010iRA63198109-198210

main88412-14020iKA67198308-198804

main88412-14030iAA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198712

main88412-14050iSA60198109-198804

main88412-14070iTA63..GTT198210-198507

main88412-20070iCA6#198202-198804

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCA6#,KA67,RA63,SA60198109-198804

main88411-14060iAA60,TA6#198109-198712

main88411-22070iAA63198305-198507

88320COMPRESSOR ASSY, COOLER

main88320-12270iAA63198305-198507

W/POWER STEERING

main88320-12280iAA63198305-198507

main88320-12300iAA60198305-198712

main88320-14260iRA63198109-198210

main88320-14360iSA60198109-198201

main88320-14380iTA6#..DLX,GT,SE,SG,ST,STD198109-198308

main88320-14390iAA60198109-198305

main88320-14420iSA60198201-198305

main88320-14430iTA63..GTT198210-198507

main88320-14450iKA67198308-198804

main88320-14490iSA60198305-198804

main88320-20350iCA6#198202-198804

88330CLUTCH ASSY, MAGNET

main88410-12150iAA63198305-198507

main88410-14090iRA63198109-198210

main88410-14100iKA67198308-198804

main88410-14110iAA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198712

main88410-14120iCA6#198202-198804

main88410-14130iSA60198109-198804

main88410-14150iTA63..GTT198210-198507

88330BBEARING, MAGNET CLUTCH

main90099-10133iAA63,CA6#,KA67,RA63,SA60198109-198804

main90099-10135iAA60,TA6#198109-198712

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iTA63..GTT198210-198507

main90099-07114iAA6#,KA67,RA63,TA6#..DLX,GT,SE,SG,ST,STD198205-198804

main90099-07118iCA6#,SA60198205-198804

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iAA63,CA6#,KA67,RA63,SA60198109-198804

main88403-14040iAA60,TA6#198109-198712

7 parts on this diagram · 6 diagrams in section
