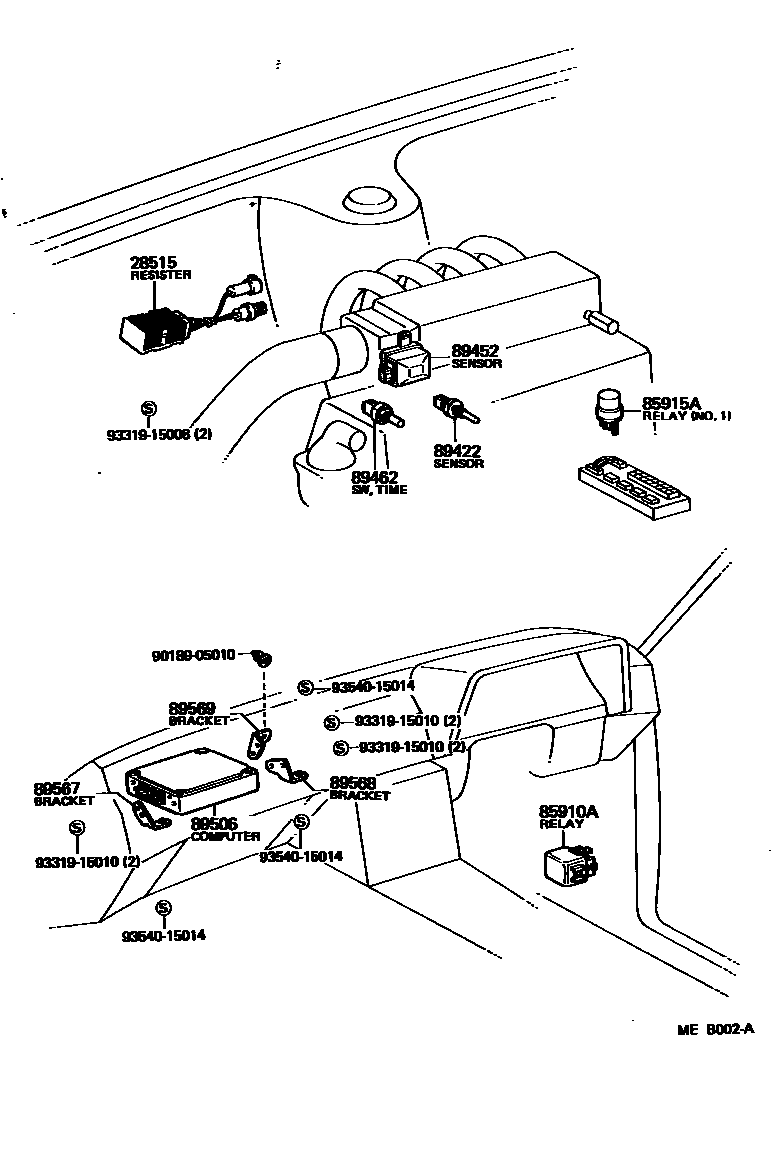

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1

28515RESISTOR, SOLENOID

main28515-26040i18RGEU,2TGEU,3TEU..RA63,TA61,63198109-198305

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iAA63,RA63,TA61,63198109-198507

85915ARELAY, MAIN

main85915-14050iAA63,TA63..GT,GTT198210-198507

NO.2

main90987-02004iAA63,RA63,TA61,63198109-198507

NO.1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iAA63,RA63,TA61,63198109-198507

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iTA61,63..GT,SE,ST198109-198305

main89452-14010iRA63198109-198210

main89452-14030iTA63..GTT198210-198507

main89452-28010iAA63198305-198507

89462SWITCH, START INJECTOR TIME

main89462-30011iAA63,TA61,63..GT,SE,ST198304-198507

main89462-40010iTA63..GTT198304-198507

89506COMPUTER SET, FUEL INJECTION

main89561-12032iTA61198109-198305

main89561-14022iRA63198109-198210

main89561-14032iTA63..SE,ST198109-198305

main89561-14190iTA63..GTT198210-198507

main89661-14060iAA63198305-198308

main89661-14061iAA63198308-198507

89567BRACKET, FUEL INJECTION COMPUTER

main89567-14060iRA63,TA61,63..GT,SE,ST198109-198305

main89567-14090iTA63..GTT198210-198507

89568BRACKET, FUEL INJECTION COMPUTER

main89568-14050iRA63,TA61,63..GT,SE,ST198109-198305

main89568-14080iTA63..GTT198210-198507

89569BRACKET, FUEL INJECTION COMPUTER

main89569-14050iRA63,TA61,63..GT,SE,ST198109-198305

main89569-14070iTA63..GTT198210-198507

9018905010

main90189-05010

9331915008

main93319-15008

9331915010

main93319-15010

9354015014

main93540-15014

14 parts on this diagram · 3 diagrams in section
