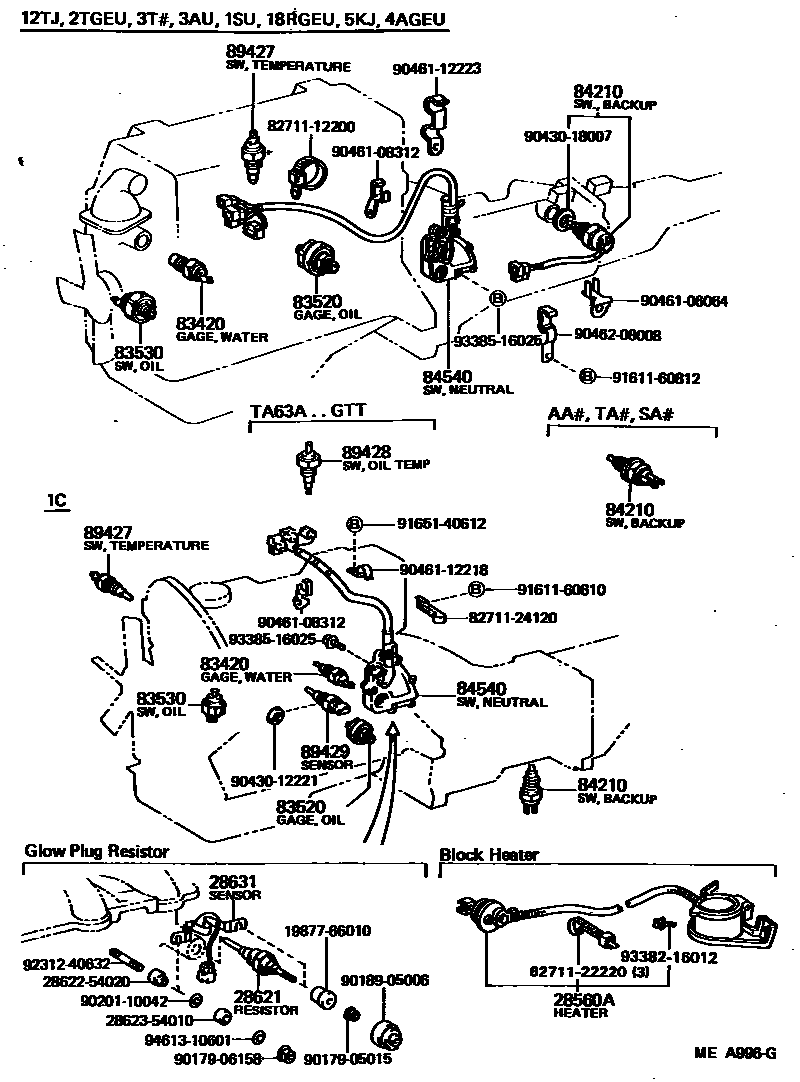

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28560ABLOCK, HEATER

main28560-69015i1C..CA6#198202-198804

28621RESISTOR, GLOW PLUG

main28621-64011i1C..CA67198405-198804

main28621-64020i1C..CA67198308-198405

28631SENSOR, GLOW PLUG CURRENT

main28631-64010i1C..CA6#198202-198804

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAA6#,CA6#,RA63,SA60,TA6#198109-198308

DENSO

main83420-20020iAA6#,CA6#,RA63,SA60,TA6#198109-198308

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iAA6#,TA63..GT,GTT,SE,ST; AA60..SG198310-198406

MY ROAD

main83520-14022iAA60..SG198406-198705

MY ROAD

main83520-14023iAA60..SG198705-198712

MY ROAD

main83520-14040iSA60..SE,ST; SA60..SG198310-198407

MY ROAD

main83520-14041iSA60..SE,ST; SA60..SG198407-198509

MY ROAD

main83520-14042iSA60..SG; SA60..ST198511-198705

MY ROAD

main83520-14043iSA60..SG198705-198712

MY ROAD

main83520-55011iCA60198202-198305

W/TACHOMETER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKA67,SA60,TA63..DLX,GTT,SE,SG,STD198305-198310

main83530-12040iAA60,KA67..DLX,SG,ST,STD; SA60..SG198410-198512

main83530-14020iAA63; SA60..SE; SA60..SG198410-198507

main83530-14030iTA63198502-198507

main83530-30042iCA67198409-198502

main83530-30050iAA60,KA67198709-198712

main83530-30060iCA67198502-198804

main83530-30080iSA60..SG198512-198712

main83530-36011iCA6#..DLX,SG198202-198409

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main84210-14010iCA6#..5F198202-198508

main84210-60010iRA63198109-198210

84540SWITCH ASSY, NEUTRAL START

main84540-14080iAA60..4FC198305-198405

main84540-14090iAA60,KA67..3FC198109-198804

89427SWITCH, TEMPERATURE DETECT

main89427-12051iCA67198507-198804

HEATER IDLE UP DEVICE

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-14060iTA63..GTT198210-198308

OIL TEMPERATURE

main89428-14061iTA63198308-198507

OIL TEMPERATURE

89429SENSOR, OIL TEMPERATURE

main89422-30020iCA6#198202-198804

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271122220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22220

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9043018007

main90430-18007

9046106064

main90461-06064

9046108312

main90461-08312

9046112218

main90461-12218

9046112223

main90461-12223

9046208008

main90462-08008

9161160610

main91611-60610

9161160812

main91611-60812

9165140612

main91651-40612

9231240632

main92312-40632

9338216012

main93382-16012

9338516025

main93385-16025

9461310601

main94613-10601

35 parts on this diagram · 5 diagrams in section
