Toyota CARINA FR — REAR MOULDING

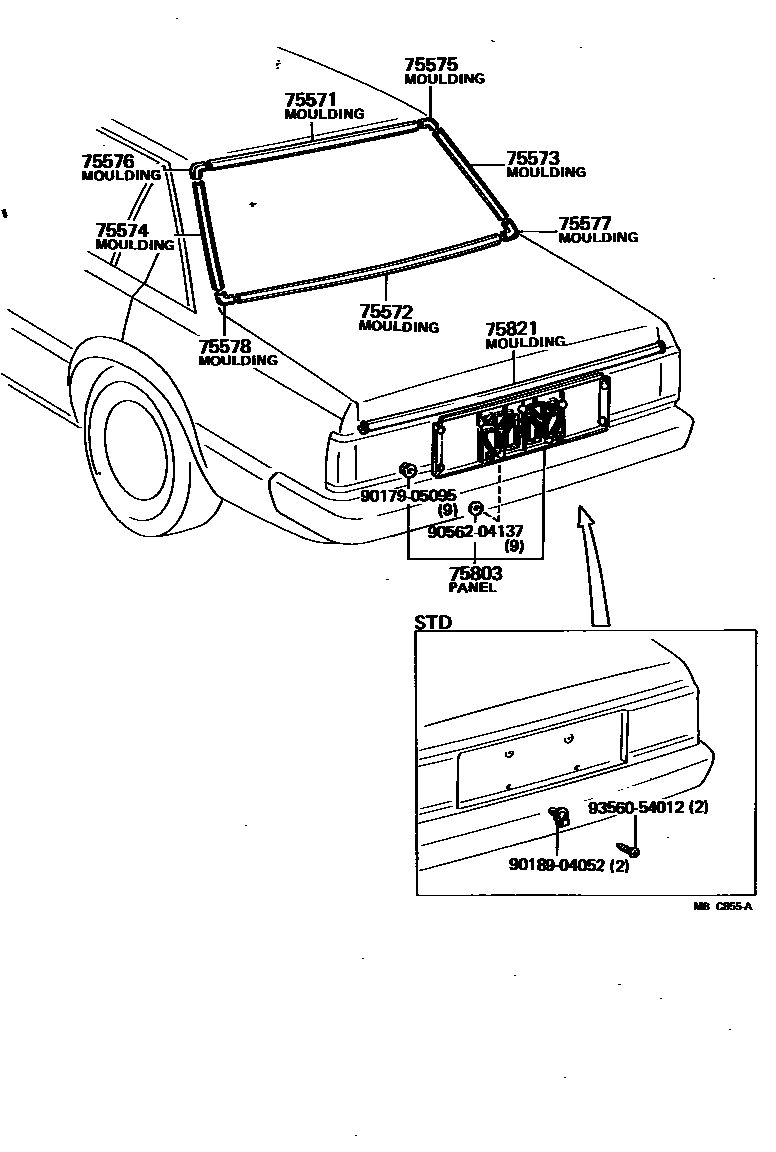

Parts diagram

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

75572MOULDING, BACK WINDOW, LOWER

75573MOULDING, BACK WINDOW SIDE, RH

75574MOULDING, BACK WINDOW SIDE, LH

75575MOULDING, BACK WINDOW CORNER, UPPER RH

75576MOULDING, BACK WINDOW CORNER, UPPER LH

75577MOULDING, BACK WINDOW CORNER, LOWER RH

75578MOULDING, BACK WINDOW CORNER, LOWER LH

75803PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

9017905095

9018904052

9056204137

9356054012

14 parts on this diagram · 3 diagrams in section

REAR MOULDING for Toyota CARINA FR

This section contains 26 genuine Toyota parts for the REAR MOULDING system of the Toyota CARINA FR. Key components include: PANEL SUB-ASSY, BACK DOOR FINISH, MOULDING, BACK WINDOW, OUTSIDE UPPER, MOULDING, BACK WINDOW, LOWER, MOULDING, BACK WINDOW SIDE, RH, MOULDING, BACK WINDOW SIDE, LH.
