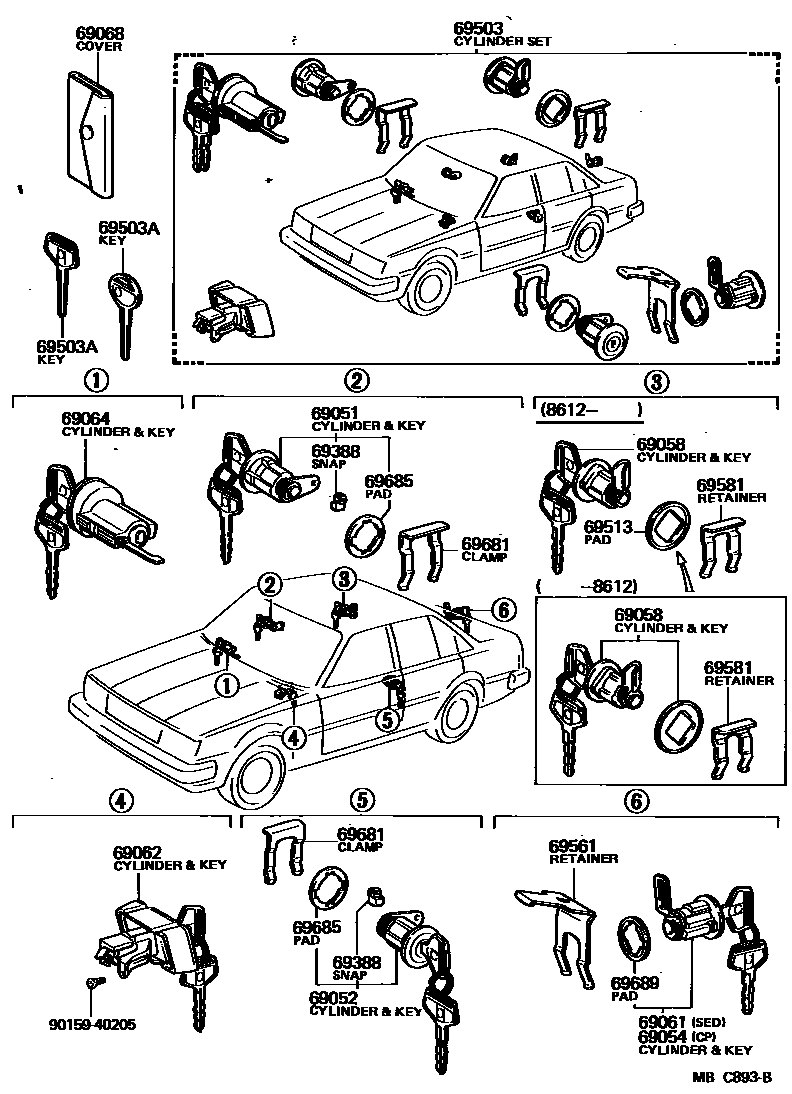

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-14061iAA6#,CA60,SA60,TA63..CP,SED198305-198804

main69051-19265iAA60,CA60,RA63,SA60,TA61,63..CP,SED198109-198305

sub69051-19275

main69051-19285iCA67,TA67198109-198308

sub69051-19295

main69051-91C03iSA60..WG198305-198701

sub69051-91C05

main69051-91C05iSA60..ST198701-198804

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-14061iAA6#,CA60,SA60,TA63..CP,SED198305-198804

main69052-19265iAA60,CA60,RA63,SA60,TA61,63..CP,SED198109-198305

sub69052-19275

main69052-19285iCA67,TA67198109-198308

sub69052-19295

main69052-91C03iSA60..WG198305-198701

sub69052-91C05

main69052-91C05iCA67,KA67198701-198804

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-19435iAA6#,RA63,SA60,TA61,63..CP198109-198507

main69055-91256iCA67,KA67,TA67198109-198701

sub69055-91257

main69055-91257iCA67,KA67198701-198804

main69055-91C01iSA60..WG198202-198701

sub69055-91C03

main69055-91C03iSA60..ST198701-198804

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-14060iAA60..DLX,STD198612-198804

main69058-19135iAA60,CA60,RA63,SA60,TA61,63..SED198109-198612

sub69058-14060

main69058-19155iCA67,KA67,TA67198109-198701

sub69058-19165

main69058-91C03iCA67,KA67198701-198804

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-19375iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

sub69055-20271

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14030-01iAA6#,CA60,RA63,SA60,TA61,63..CP,SED198109-198804

BLACK

sub69056-20120

sub69056-14030

main69056-91C01-01iCA67,KA67,SA60,TA67..V,WG198109-198701

BLACK,BLACK,TRIM2#

sub69056-91C01

sub69056-91C03

main69056-91C03-01iCA67,KA67,SA60..V,WG198701-198804

BLACK,BLACK,TRIM2#

sub69056-91C03

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14050iAA60,CA60,RA63,SA60,TA61,63..CP,SED198109-198303

sub69057-14060

main69057-14090iAA6#,CA60,SA60,TA63..CP,SED198303-198804

sub69057-14060

main69057-91C01iCA67,KA67,SA60,TA67..V,WG198109-198701

sub69057-91C03

main69057-91C03iCA67,KA67,SA60..V,WG198701-198804

sub69057-14060

69068COVER SUB-ASSY, KEY

main69555-20010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iSA60..WG198305-198804

RH

main69759-20090iSA60..WG198305-198804

LH

main69759-24080iCA67,TA67198109-198308

RH

main69759-24090iAA60,CA6#,RA63,SA60,TA6#198109-198308

LH

main69759-30040iAA6#,CA60,SA60,TA63..CP,SED198305-198804

RH

main69759-30050iAA6#,CA60,SA60,TA63..CP,SED198305-198804

LH

69503CYLINDER SET, LOCK

main69005-14350iAA60,CA60,RA63,SA60,TA61,63..SED198109-198305

main69005-14351iAA60..DLX,STD198305-198712

main69005-14450iAA6#,CA60,SA60,TA63..SED..(GT,GTT,SE,SG,ST)198305-198712

main69005-14470iAA60,RA63,SA60,TA61,63..CP198109-198305

main69005-14500iAA6#,SA60,TA63..CP198305-198507

main69005-91C01-01iCA67,TA67198109-198308

BLACK,BLACK,TRIM2#

sub69005-91C01

main69005-91C02-01iSA60..ST198202-198305

BLACK,BLACK,TRIM2#

sub69005-91C02

main69005-91C06iCA67,KA67198308-198701

sub69005-91C10

main69005-91C09iSA60..WG198305-198701

sub69005-91C11

main69005-91C10iCA67,KA67198701-198804

main69005-91C11iSA60..ST198701-198804

69503AKEY, BLANK

main90999-00066iAA6#,CA60,RA63,SA60,TA61,63..CP,SED198109-198804

sub90999-00085

main90999-00067iCA67,KA67,SA60,TA67..V,WG198109-198804

main90999-00068iAA6#,CA60,RA63,SA60,TA61,63..CP,SED198109-198804

sub90999-00094

main90999-00071iCA67,KA67,SA60,TA67..V,WG198109-198804

main90999-00124iCA67,KA67,SA60..V,WG198701-198804

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-12020iSA60..WG198305-198804

main69513-14010iAA60..DLX,STD;AA6#,SA60,TA63..CP198109-198804

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-12050iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main69561-14060iAA6#,RA63,SA60,TA61,63..CP198109-198507

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-14010iAA60,CA6#,RA63,SA60,TA6#198109-198804

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

69685PAD, LOCK CYLINDER

main69513-12020iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

69689PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69685-12010iAA6#,CA60,RA63,SA60,TA61,63..CP,SED198109-198804

9015940205

main90159-40205

18 parts on this diagram · 2 diagrams in section
