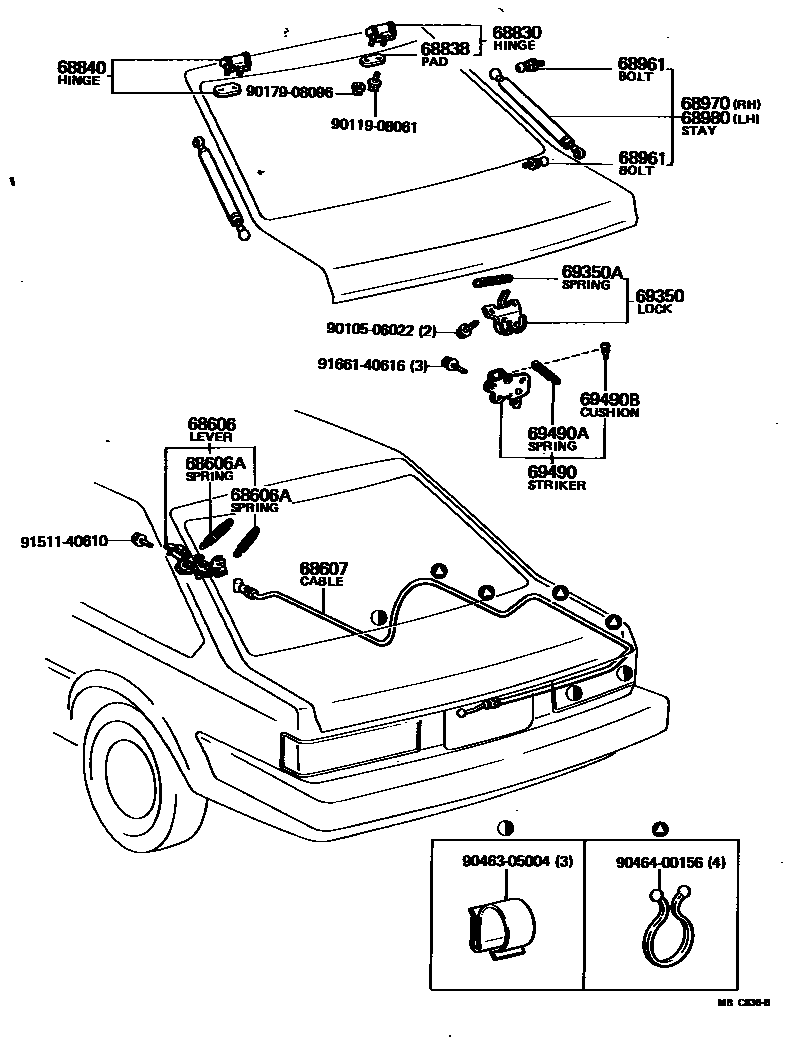

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-14030iAA6#,RA63,SA60,TA61,63..CP198109-198507

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iAA6#,RA63,SA60,TA61,63..CP198109-198507

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-14170iAA6#,RA63,SA60,TA61,63..CP198109-198507

68830HINGE ASSY, BACK DOOR, RH

main68801-14030iAA60,RA63,SA60,TA61,63..CP198109-198212

main68801-20020iAA60,SA60,TA61,63..CP198212-198507

main68810-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2iAA6#,RA63,SA60,TA61,63..CP198109-198507

main68838-15010×2iCA67,KA67,SA60,TA67..V,WG198109-198804

68840HINGE ASSY, BACK DOOR, LH

main68801-14030iAA60,RA63,SA60,TA61,63..CP198109-198212

main68801-20020iAA60,SA60,TA61,63..CP198212-198507

main68810-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

68961BOLT, BACK DOOR STAY

main68961-12010×4iCA67,KA67,SA60..V,WG198402-198508

main68961-14010×4iCA67,KA67,SA60,TA67..V,WG198109-198402

main68961-14020×4iAA6#,RA63,SA60,TA61,63..CP198109-198408

main68961-16010×4iAA6#,SA60,TA63..CP198408-198507

main68961-23010×4iCA67,KA67,SA60..V,WG198508-198804

68970STAY ASSY, BACK DOOR, RH

main68950-19195iAA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

COLD SPEC

main68950-19205iAA6#,SA60,TA63..CP..(GT,SG,ST); AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

COLD SPEC

main68950-19215iCA67,TA67198109-198308

TOKICO

main68950-19225iSA60..ST198202-198203

TOKICO

main68950-19235iCA67,TA67198109-198308

KAYABA

main68950-19245iSA60..ST198202-198203

KAYABA

main68950-19285iAA6#,SA60,TA63..CP..(GT,SG,ST)198109-198507

main68950-19355iSA60..ST198203-198305

TOKICO

main68950-19365iSA60..ST198203-198305

KAYABA

main68950-19485iCA67,KA67198308-198804

main68950-19505iSA60..WG198305-198804

68980STAY ASSY, BACK DOOR

main68950-19195iAA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

COLD SPEC

main68950-19205iAA6#,SA60,TA63..CP..(GT,SG,ST); AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

COLD SPEC

main68950-19285iAA6#,SA60,TA63..CP..(GT,SG,ST)198109-198507

main68960-19105iCA67,TA67198109-198308

TOKICO

main68960-19115iSA60..ST198202-198203

TOKICO

main68960-19125iCA67,TA67198109-198308

KAYABA

main68960-19135iSA60..ST198202-198203

KAYABA

main68960-19165iSA60..ST198203-198305

TOKICO

main68960-19175iSA60..ST198203-198305

KAYABA

main68960-19215iCA67,KA67198308-198804

main68960-19235iSA60..WG198305-198804

69350LOCK ASSY, BACK DOOR

main69350-14041iAA6#,RA63,SA60,TA61,63..CP198109-198507

main69350-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

69350ASPRING(FOR BACK DOOR LOCK)

main90506-08020iAA6#,RA63,SA60,TA61,63..CP198109-198507

69490STRIKER ASSY, BACK DOOR LOCK

main69430-14070iAA6#,RA63,SA60,TA61,63..CP198109-198507

main69430-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

69490ASPRING(FOR BACK DOOR LOCK STRIKER)

main90501-07484iAA6#,RA63,SA60,TA61,63..CP198109-198507

WD=0.7

main90506-08001iAA6#,RA63,SA60,TA61,63..CP198109-198507

WD=0.8

69490BCUSHION(FOR BACK DOOR LOCK STRIKER)

main90541-06002iCA67,KA67,SA60,TA67..V,WG198109-198804

main90541-06010iAA6#,RA63,SA60,TA61,63..CP198109-198507

9010506022

main90105-06022

9011908061

main90119-08061

9017908096

main90179-08096

9046305004

main90463-05004

9046400156

main90464-00156

9151140610

main91511-40610

9166140616

main91661-40616

21 parts on this diagram · 2 diagrams in section
