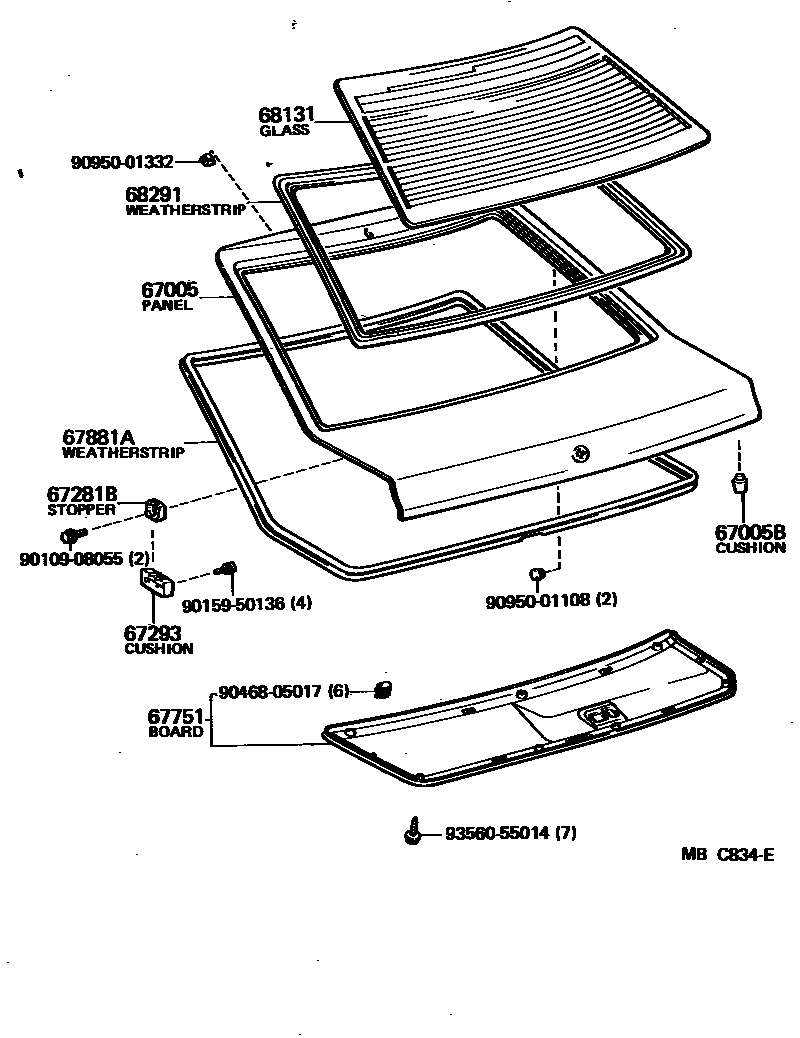

BACK DOOR PANEL & GLASS

0001 1 0002 1

67005PANEL SUB-ASSY, BACK DOOR

main67005-14400iAA60,SA60,TA63..CP..(SG,ST)198109-198305

main67005-14420iSA60,TA63..CP..ST198109-198312

W/7 WAY PARCEL TRAY

main67005-14440iAA6#..CP..(GT,SG,ST)198305-198312

W/7 WAY PARCEL TRAY

main67005-14490iAA63,TA63..CP198305-198507

GT-R,GT-TR PACKAGE

main67005-91C13iCA67,KA67,TA67..DLX,STD198109-198710

main67005-91C15iCA67,KA67,TA67..DLX,SG198109-198710

W/RR WIPER

main67005-91C16iSA60..WG198202-198710

main67005-91C21iCA67,KA67..DLX,STD198710-198804

main67005-91C23iCA67,KA67..DLX,SG198710-198804

W/RR WIPER

main67005-91C24iSA60..ST198710-198804

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09020×2iAA6#,RA63,SA60,TA61,63..CP198109-198507

67281BSTOPPER, BACK DOOR, LOWER

main67281-13030×4iCA67,KA67,SA60,TA67..V,WG198109-198710

OD=11

main67281-14030×2iAA6#,RA63,SA60,TA61,63..CP198109-198507

main67281-95500×4iCA67,KA67,SA60..V,WG198710-198804

OD=15

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-14020×2iAA6#,RA63,SA60,TA61,63..CP198109-198507

67751BOARD, BACK DOOR TRIM

main64780-91C01-01iCA67,TA67198109-198209

BLACK,BLACK,TRIM2#

main64780-91C01-06iCA67,TA67..DLX,SG198109-198209

DARK BROWN,BROWN,TRIM4#

main64780-91C02-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main64780-91C02-04iSA60..WG198202-198804

BLUE,BLUE,TRIM8#

main64780-91C02-06iSA60..WG198202-198405

DARK BROWN,BROWN,TRIM4#

main64781-14040-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main64781-14040-04iTA63..CP198305-198507

BLUE,BLUE,TRIM8#

main64781-14040-06iTA63..CP198305-198405

DARK BROWN,BROWN,TRIM4#

main64781-91C01-01iCA67,KA67,TA67198209-198804

BLACK,BLACK,TRIM2#

main64781-91C01-06iCA67,KA67,TA67..DLX,SG198209-198804

DARK BROWN,BROWN,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-14070iAA6#,RA63,SA60,TA61,63..CP198109-198309

main67881-14090iAA6#,SA60,TA63..CP198309-198507

main67881-91702iCA67,KA67,SA60,TA67..V,WG198109-198804

68131GLASS, BACK DOOR

main68105-91C01iCA67,KA67,TA67198109-198804

main68105-91C02iSA60..WG198202-198804

main68131-14050iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198109-198507

main68131-14060iAA6#,RA63,SA60,TA61,63..CP..(GT,SE)198109-198507

T=4.0,*EHTT,W/RR ANTENA

main68131-14130iAA60..CP..SG198310-198507

MY ROAD,BRONZE

main68131-91C01iCA67,KA67,TA67..DLX,STD198109-198804

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-14030iAA6#,RA63,SA60,TA61,63..CP198109-198507

main68291-91C01iKA67,TA67..STD198109-198804

main68291-91C02iCA67,KA67,TA67..DLX,SG198109-198804

main68291-91C03iSA60..WG198202-198804

9010908055

main90109-08055

9015950136

main90159-50136

9046805017

main90468-05017

9095001108

main90950-01108

9095001332

main90950-01332

9356055014

main93560-55014

14 parts on this diagram · 2 diagrams in section
