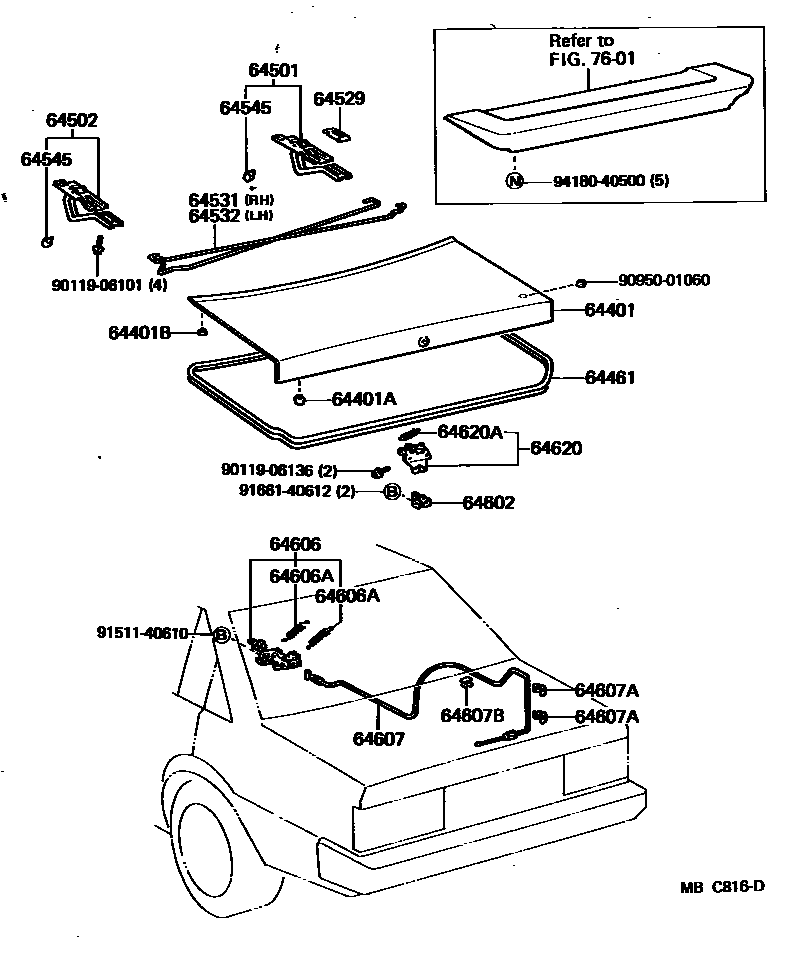

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-14360iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main64401-14420iAA63,TA63..SED198405-198507

W/SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09021×2iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

RR

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

FR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-14170iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main64461-14180iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

COLD SPEC

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-14090iAA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SG,ST,STD)198109-198712

main64510-14100iCA60,SA60..SED..SE198109-198405

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-14090iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

T=1.0

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-14120iAA63,TA63..SED198405-198507

W/SPOILER

main64531-14130iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-14120iAA63,TA63..SED198405-198507

W/SPOILER

main64532-14130iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×2iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-14030iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-14190iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×2iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-14050iAA60..DLX,STD198109-198804

main64610-14060iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198112-198712

W/CANCEL

main64610-22020iAA60,RA63,SA60,TA61,63..SED..(GT,SE,SG,ST)198109-198712

W/CANCEL

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-09001iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,SG,ST)198109-198712

W/CANCEL

main90506-10028iAA60..DLX,STD198109-198712

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906101

main90119-06101

9011906136

main90119-06136

9095001060

main90950-01060

9151140610

main91511-40610

9166140612

main91661-40612

9418040500

main94180-40500

25 parts on this diagram · 1 diagram in section
