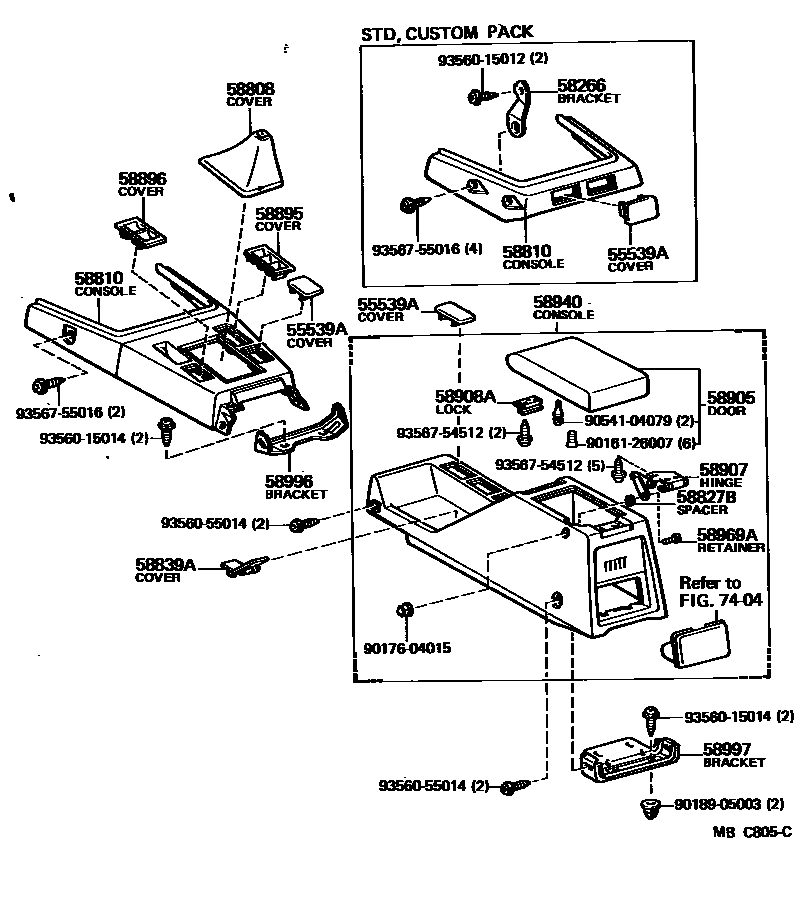

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-01×5iAA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V198109-198804

BLACK,BLACK,TRIM2#

main55539-24010-04×5iTA63198305-198507

BLUE,BLUE,TRIM8#

main55539-24010-06×5iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main55388-14030iTA67..4F..DLX198109-198206

RH,CUSTOM PACK

main55389-14010iKA67,TA67..4F..DLX198210-198804

LH,CUSTOM PACK

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-14120-01iAA6#,KA67,RA63,SA60,TA6#..(CP,SED,V)..MTM..(DLX,GT,GTT,SE,SG,ST)198109-198804

BLACK,BLACK,TRIM2#

main58808-14120-04iAA6#,RA63,SA60,TA61,63..MTM..(DLX,GT,SE,SG,ST)198109-198804

BLUE,BLUE,TRIM8#

main58808-14120-16iCA67198508-198804

DARK BROWN,BROWN,TRIM4#

main58808-14130-01iCA6#..5F198202-198508

BLACK,BLACK,TRIM2#

main58808-14130-04iCA60..5F198202-198405

BLUE,BLUE,TRIM8#

main58808-14130-16iCA6#..5F198202-198508

DARK BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main55434-14020-01iTA67..4F..DLX198109-198206

CUSTOM PACK,BLACK,BLACK,TRIM2#

main58811-14190-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main58811-14190-04iTA63198305-198507

BLUE,BLUE,TRIM8#

main58811-14190-06iTA63198305-198405

DARK BROWN,BROWN,TRIM4#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iAA6#,CA60,RA63,SA60,TA61,63..GT,SE,ST198109-198804

58839ACOVER, CONSOLE BOX HOLE

main58839-14010-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main58839-14010-04iTA63198305-198507

BLUE,BLUE,TRIM8#

main58839-14010-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

58895COVER, SWITCH HOLE, NO.1

main55528-14030-01iSA60..WG198305-198804

W/COIN POCKET,BLACK,BLACK,TRIM2#

main55528-14030-04iTA63198305-198507

W/COIN POCKET,BLUE,BLUE,TRIM8#

main55528-14030-06iTA63198305-198405

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

58896COVER, SWITCH HOLE, NO.2

main55539-14030-01iRA63,SA60,TA63..GT,SE198109-198208

W/AUTO DRIVE,BLACK,BLACK,TRIM2#

main55539-14030-04iRA63,SA60,TA63..GT,SE198109-198208

W/AUTO DRIVE,BLUE,BLUE,TRIM8#

main55539-14030-06iRA63,SA60,TA63..GT,SE198109-198208

W/AUTO DRIVE,DARK BROWN,BROWN,TRIM4#

main55539-14031-01iRA63,SA60,TA63..GT,SE198208-198405

W/AUTO DRIVE,BLACK,BLACK,TRIM2#

main55539-14031-04iRA63,SA60,TA63..GT,SE198208-198405

W/AUTO DRIVE,BLUE,BLUE,TRIM8#

main55539-14031-06iRA63,SA60,TA63..GT,SE198208-198405

W/AUTO DRIVE,DARK BROWN,BROWN,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14040-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main58905-14040-04iTA63198305-198507

BLUE,BLUE,TRIM8#

main58905-14040-06iAA60,SA60..DLX,SG198310-198804

MY ROAD,DARK BROWN,BROWN,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-14010iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST198109-198804

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-22010iAA60..SG198206-198804

JEUNE

58940CONSOLE ASSY, REAR

main58901-14040-01iAA60,CA6#,KA67,SA60,TA67..DLX,SG198109-198804

BLACK,BLACK,TRIM2#

main58901-14040-04iAA60,CA60,SA60..DLX,SG198109-198804

BLUE,BLUE,TRIM8#

main58901-14040-06iAA60,CA6#,KA67,SA60,TA67..DLX,SG198109-198804

DARK BROWN,BROWN,TRIM4#

main58901-14050-01iSA60..WG198305-198804

BLACK,BLACK,TRIM2#

main58901-14050-04iTA63198305-198507

BLUE,BLUE,TRIM8#

main58901-14050-06iAA6#,CA60,RA63,SA60,TA61,63..GT,SE,ST198109-198405

DARK BROWN,BROWN,TRIM4#

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST198109-198804

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58902-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,GTT,SE,SG,ST198109-198804

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,GTT,SE,SG,ST198109-198804

7404ASH RECEPTACLE

→ Go to FIG 74-04

9016126007

main90161-26007

9017604015

main90176-04015

9018905003

main90189-05003

9054104079

main90541-04079

9356015012

main93560-15012

9356015014

main93560-15014

9356055014

main93560-55014

9356754512

main93567-54512

9356755016

main93567-55016

25 parts on this diagram · 1 diagram in section
