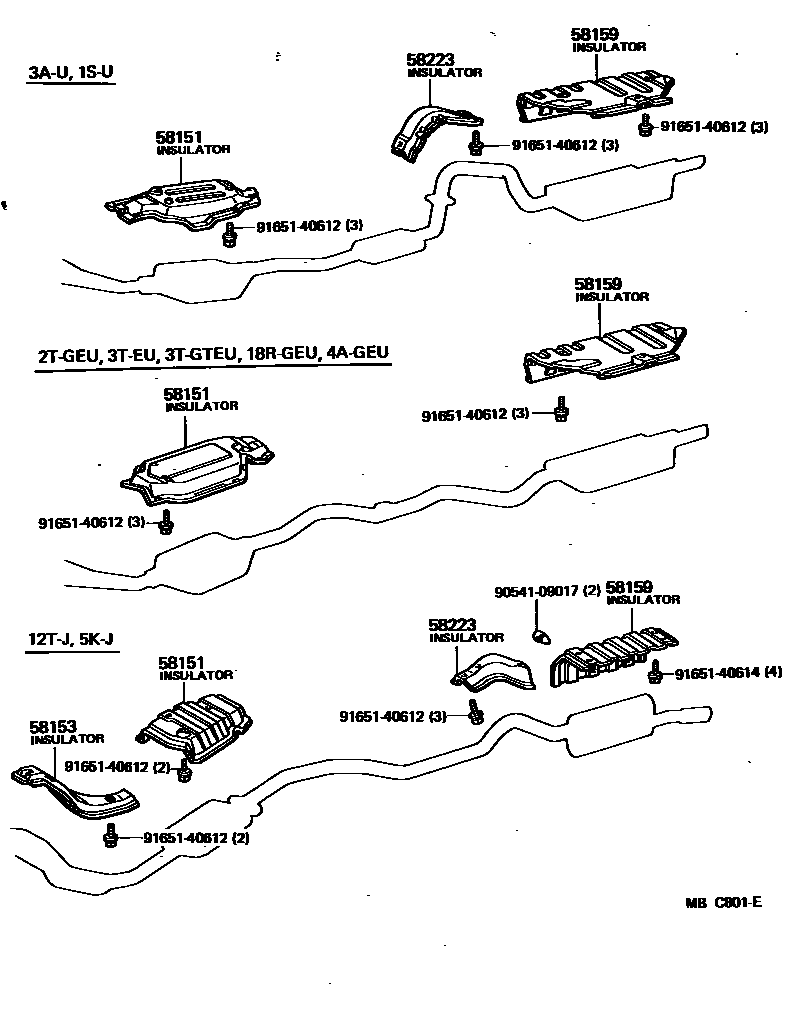

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-14070iRA63,TA61,63..GT,SE,ST198109-198305

main58041-24010iAA60,SA60198109-198804

main58151-14070iTA63..GTT198210-198507

main58151-91C01iKA67,TA67198109-198804

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-14040iKA67,TA67198109-198804

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-14020iAA6#,RA63,SA60,TA61,63198109-198804

main58368-21020iKA67,TA67198109-198804

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-14030iAA60,SA60198109-198804

main58223-91255iKA67,TA67198109-198804

9054109017

main90541-09017

9165140612

main91651-40612

9165140614

main91651-40614

7 parts on this diagram · 1 diagram in section
