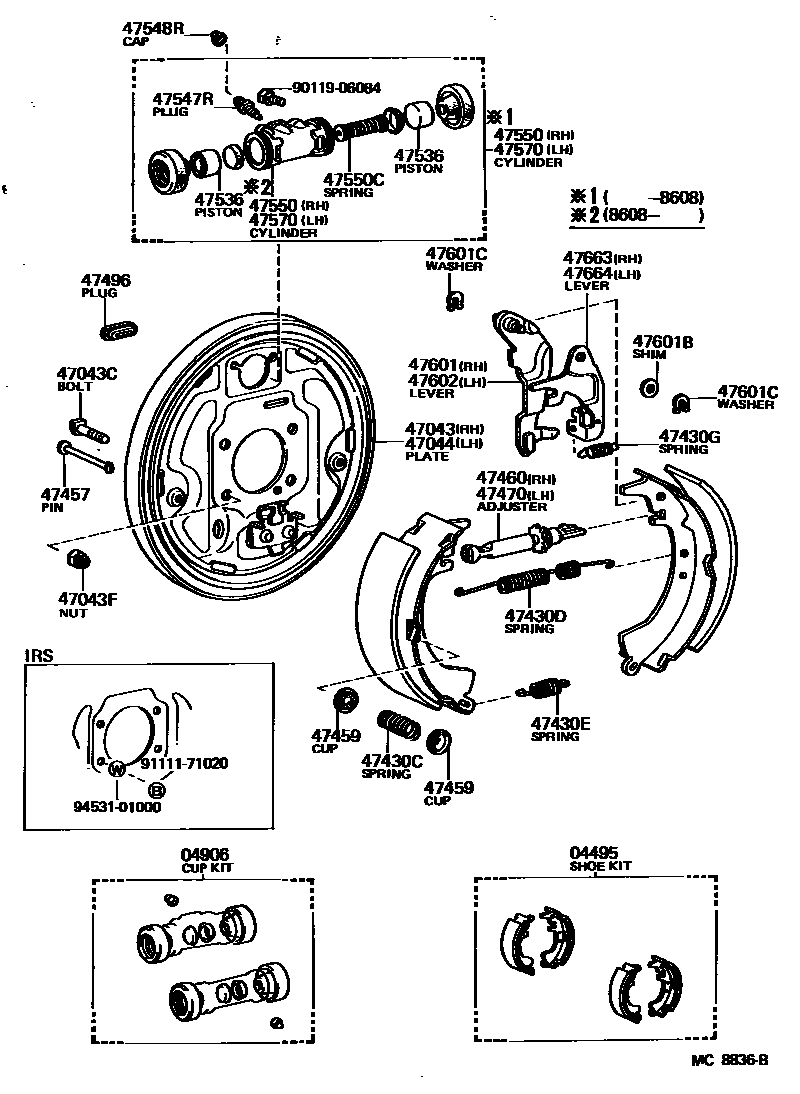

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

main04495-14040iTA63..ST198109-198305

main04497-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

REBUILT

main04497-14030iTA63..ST198109-198305

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

ID=20.64

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-14040iTA63..ST198109-198305

main47043-20050iAA60,CA6#,KA67,SA60,TA67198109-198804

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iAA60,CA6#,KA67,SA60,TA67198109-198804

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iAA60,CA6#,KA67,SA60,TA67198109-198804

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-14040iTA63..ST198109-198305

main47044-20050iAA60,CA6#,KA67,SA60,TA67198109-198804

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main90506-29008iTA63..ST198109-198305

RH

main90506-29009iTA63..ST198109-198305

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198710

main47061-14040iAA60,CA67,KA67,SA60198710-198804

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198710

main47062-14040iAA60,CA67,KA67,SA60198710-198804

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iAA60,CA6#,KA67,SA60,TA67198109-198804

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22040×4iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12060iAA60,CA67,KA67,SA60198608-198804

main47550-19135iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198608

ID=20.64

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12060iAA60,CA67,KA67,SA60198608-198804

main47550-19135iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198608

ID=20.64

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

main47601-14020iTA63..ST198109-198305

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

main90564-08151×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

main90564-08152×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

main90564-08172×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

main90564-08173×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

main90564-08174×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

main47602-14020iTA63..ST198109-198305

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198804

9011906084

main90119-06084

9111171020

main91111-71020

9453101000

main94531-01000

30 parts on this diagram · 1 diagram in section
