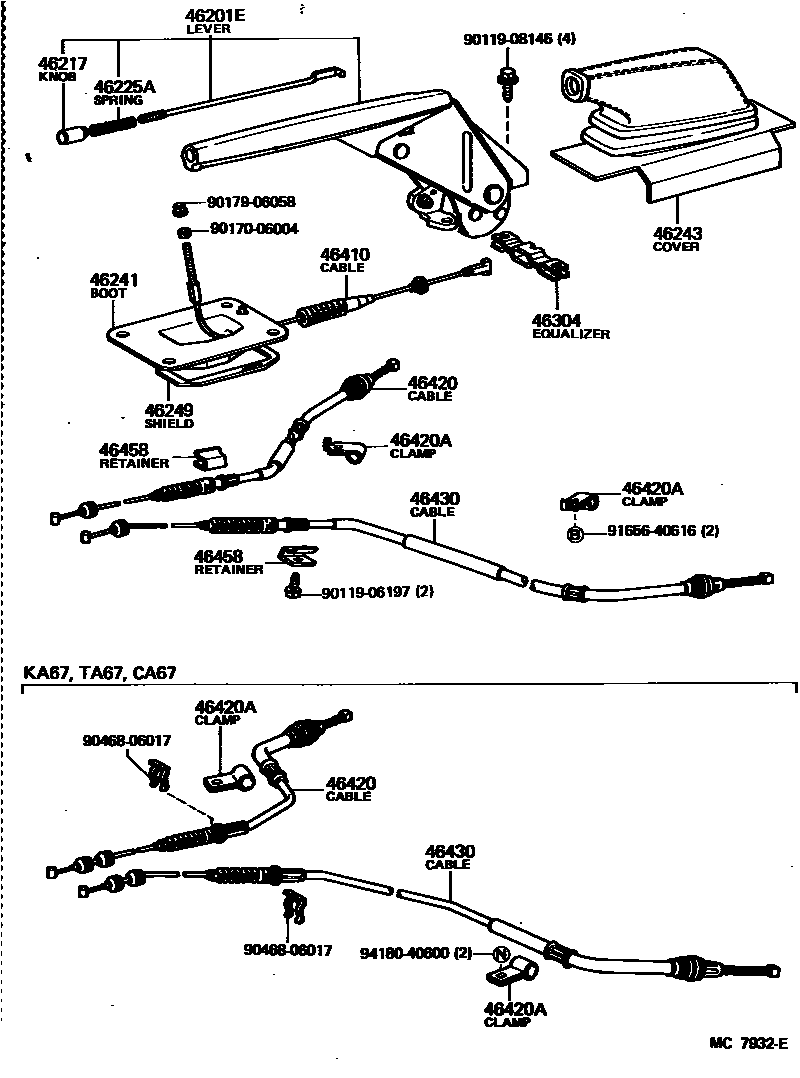

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14110-01iAA60,CA6#,SA60,TA67..DLX,SG,STD198109-198305

BLACK,BLACK,TRIM2#

main46201-14110-04iAA60,CA60,SA60..DLX,SG198208-198305

BLUE,BLUE,TRIM8#

main46201-14110-06iAA60..(3FC,4F)..SG198206-198208

DARK BROWN,BROWN,TRIM4#

main46201-14130-01iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198305-198804

BLACK,BLACK,TRIM2#

main46201-14130-04iAA60,CA60,SA60..DLX,SG198305-198605

BLUE,BLUE,TRIM8#

main46201-14130-06iAA60,CA6#,KA67,SA60,TA67..DLX,SG198305-198804

DARK BROWN,BROWN,TRIM4#

main46201-14130-14iAA60,SA60..DLX,SG198605-198712

BLUE,BLUE,TRIM8#

main46201-24010-01iAA6#,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST)198109-198804

BLACK,BLACK,TRIM2#

main46201-24010-04iAA6#,CA60,RA63,SA60,TA61,63..GT,SE,ST198208-198804

BLUE,BLUE,TRIM8#

main46201-24010-06iAA6#,CA60,RA63,SA60,TA61,63..GT,SE,ST198208-198804

DARK BROWN,BROWN,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iAA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V198109-198804

BLACK,BLACK,TRIM2#

main46217-10020-14iAA6#,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST198208-198603

BLUE,BLUE,TRIM8#

main46217-10020-26iAA60..(3FC,4F)..SG198206-198208

DARK BROWN,BROWN,TRIM4#

main46217-10020-54iAA60,SA60198603-198804

BLUE,BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

46241BOOT, PARKING BRAKE LEVER

main46241-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

46243COVER, PARKING BRAKE LEVER

main46243-14060iTA67..4F..DLX198109-198206

CUSTOM PACK

46249SHIELD, PARKING BRAKE HOLE

main46249-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14170iAA60,CA60,SA60198109-198804

main46420-14190iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

main46420-14210iTA63..ST198109-198305

main46420-14230iCA67,KA67,TA67198109-198804

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-12121×2iAA60,CA60,SA60198109-198804

main90461-12965×2iCA67,KA67,TA67198109-198804

main90461-14013×2iAA63,RA63,TA61,63198109-198507

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14210iAA60,CA60,SA60198109-198804

main46430-14230iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

main46430-14250iTA63..ST198109-198305

main46430-14270iCA67,KA67,TA67198109-198804

46458RETAINER, CABLE

main46458-20020×2iAA6#,CA60,RA63,SA60,TA61,63198109-198804

9011906197

main90119-06197

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046806017

main90468-06017

9165640616

main91656-40616

9418040600

main94180-40600

19 parts on this diagram · 2 diagrams in section
