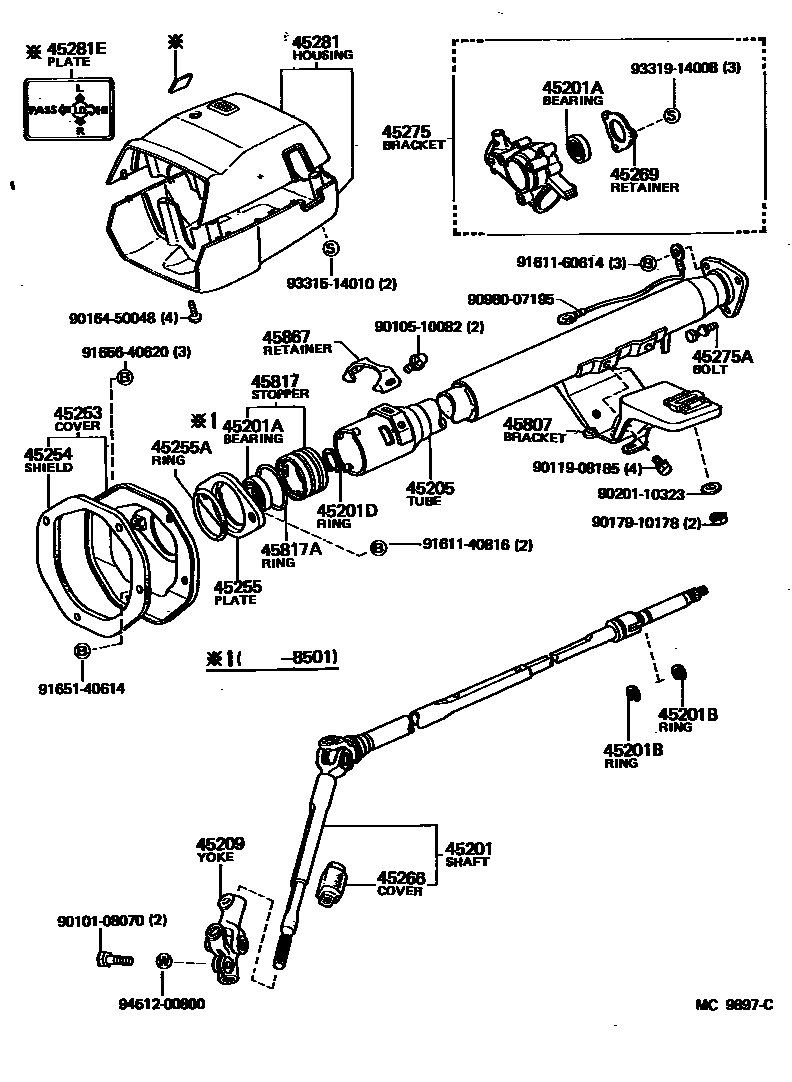

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-14130iCA67,KA67,TA67..DLX,STD198109-198804

RIGID STRG

main45210-14010iAA60..DLX,SG,STD198109-198201

main45210-14020iAA60..DLX,SG,STD198201-198305

main45210-14021iAA60..DLX,SG,STD198305-198712

main45210-14080iCA67,KA67,TA67198109-198804

COLLAPSIBLE STRG

main45210-20130iAA60..SG198205-198305

W/PS

main45210-22050iAA63,CA60,RA63,SA60,TA61,63198109-198804

W/TILT STRG,W/TILT STRG & PS

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST198109-198804

UPR,W/TILT STEERING

main90363-18038iAA60,CA67,KA67,TA67..DLX,SG,STD198109-198804

main90363-28001iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST198109-198804

CTR,W/TILT STEERING

main90363-30007iAA6#,CA60,RA63,SA60,TA61,63198109-198501

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90520-17196×2iAA60,CA67,KA67,SA60,TA67..DLX,SG,STD198109-198804

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAA6#,CA60,RA63,SA60,TA61,63198109-198804

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-14140iCA67,KA67,TA67..DLX,STD198109-198804

RIGID STEERING

main45870-14100iAA60..DLX,SG,STD198109-198712

main45870-14110iAA60..(3FC,4F)..SG; AA60..5F..SG198305-198712

ROAD RUNNER; W/TILT STEERING

main45870-14130iCA67,KA67,TA67198109-198804

COLLAPSIBLE STEERING

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14010iRA63,TA61,63198109-198305

main45209-14020iSA60,TA63198109-198202

W/POWER STEERING

main45209-14030iAA60,CA60,SA60..DLX,SG,ST,STD198109-198305

main45209-32010iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD); AA6#,SA60,TA63..CP,WG198305-198804

45253COVER, STEERING COLUMN HOLE

main45025-14100iAA6#,CA60,RA63,SA60,TA61,63198109-198804

main45025-14130iCA67,KA67,TA67198109-198804

45254SHIELD, STEERING COLUMN HOLE

main45254-24011iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iCA67,KA67,TA67198109-198804

main45255-12030iAA6#,CA60,RA63,SA60,TA61,63198109-198804

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iCA67,KA67,TA67198109-198804

main90301-59001iAA6#,CA60,RA63,SA60,TA61,63198201-198804

main90301-60122iAA60,RA63,SA60,TA61,63198109-198201

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iAA6#,CA60,RA63,SA60,TA61,63198109-198804

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iAA60,CA67,KA67..DLX,SG,STD198406-198804

main45269-35010iAA60,CA67,KA67,TA67..DLX,SG,STD198109-198406

45275BRACKET, STEERING COLUMN, UPPER

main45280-24011iAA60,CA60,RA63,SA60,TA61,63..GT,SE,SG,ST198109-198209

W/TILT STEERING

main45280-24012iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST198209-198804

W/TILT STEERING

main45280-24030iAA60,CA67,TA67..DLX,SG,STD198109-198209

main45280-24031iAA60,CA67,KA67,TA67..DLX,SG,STD198209-198804

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iAA60..DLX,SG,STD198109-198209

main45897-14010iTA63;AA60,CA60,RA63,SA60,TA61..GT,SG,ST198201-198207

W/TILT STEERING

45281HOUSING, STEERING COLUMN

main45286-14922-01iAA60,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,SG,ST)198109-198305

BLACK,W/TILT STEERING,BLACK,TRIM2#

main45286-14922-04iAA60..5F..SG; CA60,SA60;AA6#,TA63..GT,GTT,SE,ST198305-198605

BLUE,W/TILT STEERING,BLUE,TRIM8#; BLUE,W/TILT,ROAD RUNNER,BLUE,TRIM8#

main45286-14922-06iCA60,SA60;AA6#,TA63..GT,GTT,SE,ST198305-198804

DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

main45286-14922-14iSA60198605-198804

BLUE,W/TILT STEERING,BLUE,TRIM8#

main45286-24900-01iAA60,CA67,KA67,TA67..DLX,SG,STD198109-198804

BLACK,BLACK,TRIM2#

main45286-24900-04iAA60..DLX,SG198208-198605

BLUE,BLUE,TRIM8#

main45286-24900-06iAA60,CA67,KA67,TA67..DLX,SG198208-198804

DARK BROWN,BROWN,TRIM4#

main45286-24900-14iAA60..DLX,SG198605-198712

BLUE,BLUE,TRIM8#

45281EPLATE, SAFETY CAUTION

main45283-22010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-14050iAA60..(3FC,4F)..SG; AA60..5F..SG198305-198712

ROAD RUNNER; W/TILT STEERING

main45807-24011iAA60,CA67,KA67,TA67..DLX,SG,STD198109-198804

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iAA6#,CA60,RA63,SA60,TA61,63198109-198501

main45808-12030iAA6#,SA60,TA63198501-198804

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iAA6#,CA60,RA63,SA60,TA61,63198109-198804

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iAA6#,CA60,RA63,SA60,TA61,63198109-198804

9010108070

main90101-08070

9010510082

main90105-10082

9011908185

main90119-08185

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9098007195

main90980-07195

9161140816

main91611-40816

9161160614

main91611-60614

9165140614

main91651-40614

9165640620

main91656-40620

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

34 parts on this diagram · 4 diagrams in section
