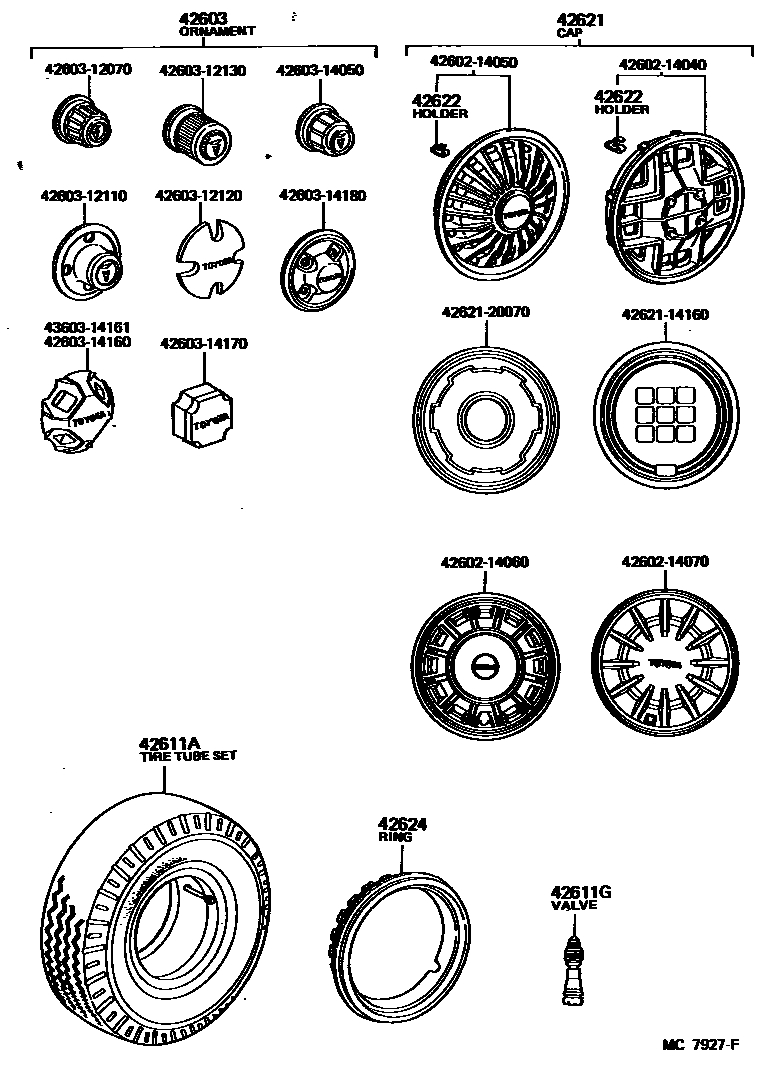

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070×4iAA60,TA67..STD198109-198804

main42603-12110×4iAA60,CA60,SA60..SG,ST198109-198804

HALF CAP

main42603-12120×4iAA60,CA60,SA60..SE,ST198109-198804

W/ALUMI WHEEL

main42603-12130×4iAA60..DLX198109-198712

main42603-14050×4iCA67,KA67,TA67198305-198804

main42603-14160×4iRA63,TA61,63198109-198305

W/ALUMI WHEEL,5.5JJ-14

main42603-14170×4iAA63,TA63198305-198507

W/ALUMI WHEEL,6JJ-15

main42603-14180×4iAA63,TA63198305-198507

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-12410×5iAA60,CA60,SA60198109-198804

165SR13,T/L

main42652-14180×5iAA60,CA60,SA60198109-198804

185/70HR13,T/L

main42652-14260×5iRA63,TA61198109-198305

185/70HR14,MICHELIN

main42652-14340×5iTA63..SE,ST198109-198305

165SR14,T/L

main42652-14350×5iAA63,RA63,TA61,63198109-198507

185/70SR14

main42652-14410×5iCA67,KA67,TA67198109-198804

165R13-6

main42652-14420×4iAA63,TA63198305-198507

195/60HR15

main42652-24050iTA63198305-198507

SPARE TIRE,W/LSD,T135/70D16

main42652-32030iAA60,CA60,SA60..CP,SED198305-198804

SPARE TIRE,T125/70D14

main42652-40040iAA63,TA63198305-198507

SPARE TIRE

main98061-55134×5iCA67,KA67,TA67198109-198804

5.50-13-8,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAA6#,CA60,KA67,RA63,SA60,TA61,63198109-198804

42621CAP, WHEEL

main42602-12050×4iAA60..SG; SA60..SED..SG198301-198712

ROAD RUNNER

main42602-14040×4iTA63..SE198109-198305

main42602-14050×4iAA60..(3FC,4F)..SG198206-198712

JEUNE

main42602-14060×4iSA60..WG198305-198804

main42602-14070×4iAA60,SA60..CP..SE198305-198507

main42621-14160×4iSA60..SE,ST;AA60,CA60..SE198109-198305

main42621-20070×4iKA67,TA67..4F..DLX..05S198210-198804

CUSTOM PACK

42622HOLDER, WHEEL CAP

main42622-14010×4iTA63..SE198109-198305

42624RING, WHEEL CAP

main42624-14030×4iRA63,TA61198109-198201

main42624-14031×4iRA63,TA61,63..GT,GTT198201-198305

4260214040CAP SUB-ASSY, WHEEL

main42602-14040

4260214050CAP SUB-ASSY, WHEEL

main42602-14050

4260214060CAP SUB-ASSY, WHEEL

main42602-14060

4260214070CAP SUB-ASSY, WHEEL

main42602-14070

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070

4260312110ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12110

4260312120ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120

4260312130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12130

4260314050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050

4260314160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14160

4260314170ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14170

4260314180ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14180

4262114160CAP, WHEEL

main42621-14160

4262120070CAP, WHEEL

main42621-20070

4360314161

main43603-14161

21 parts on this diagram · 2 diagrams in section
