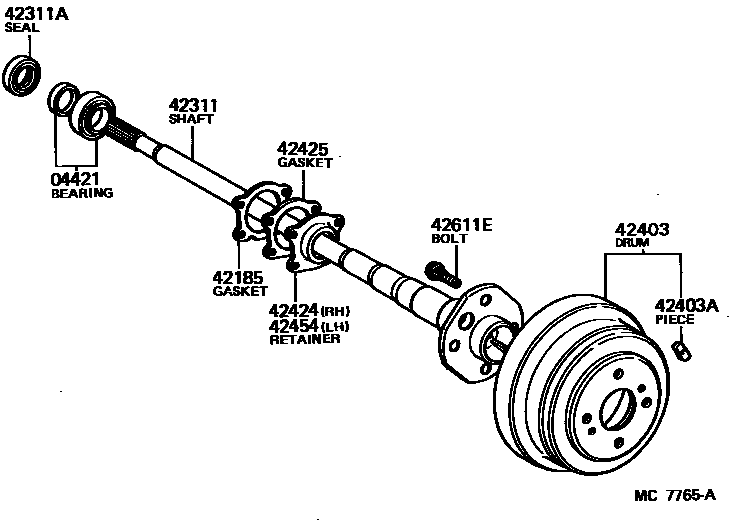

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30011×2iAA60,CA6#,KA67,SA60,TA67198109-198804

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main42185-22030×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198502

42311SHAFT, REAR AXLE

main42301-22050×2iAA63,RA63,TA61,63198109-198507

main42311-14140×2iAA60,CA6#,KA67,SA60,TA67198109-198510

main42311-14141×2iAA60,CA67,KA67,SA60198510-198804

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009×2iAA63,RA63,TA61,63198109-198507

main90311-52059×2iAA60,CA6#,KA67,SA60,TA67198109-198804

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060×2iAA60,CA6#,KA67,SA60,TA67198109-198510

main42431-14061×2iAA60,CA67,KA67,SA60198510-198804

main42431-14080×2iTA63..ST198109-198305

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198510

main90937-01118×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198510

main90937-01119×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198510

main90937-01195×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198703

main90937-01196×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198703

main90937-01197×2iTA63..ST;AA60,CA6#,KA67,SA60,TA67198109-198703

main90937-01287×2iAA60,CA67,KA67,SA60198510-198804

main90937-01288×4iAA60,CA67,KA67,SA60198510-198804

main90937-01289×4iAA60,CA67,KA67,SA60198510-198804

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iAA60,CA6#,KA67,SA60,TA67198109-198804

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iAA60,CA6#,KA67,SA60,TA67198109-198804

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iAA6#,CA6#,RA63,SA60,TA6#198109-198307

main90942-02047×8iAA6#,CA6#,KA67,SA60,TA6#198307-198804

10 parts on this diagram · 4 diagrams in section
