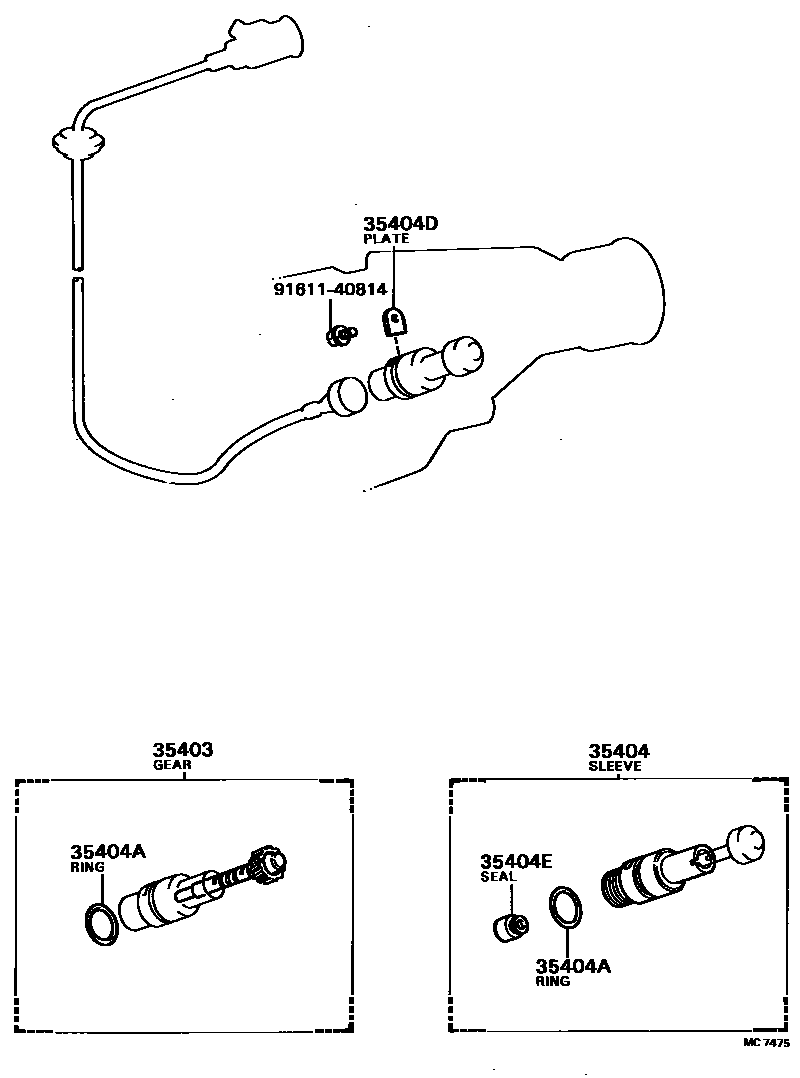

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29065iSA60,TA63..4FC198109-198804

N=20

main33482-29025iKA67,TA67..3FC198109-198507

W/165R14 TIRE,N=22

main33482-39015iAA60,CA60,KA67,TA67..ATM198109-198804

N=21

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
