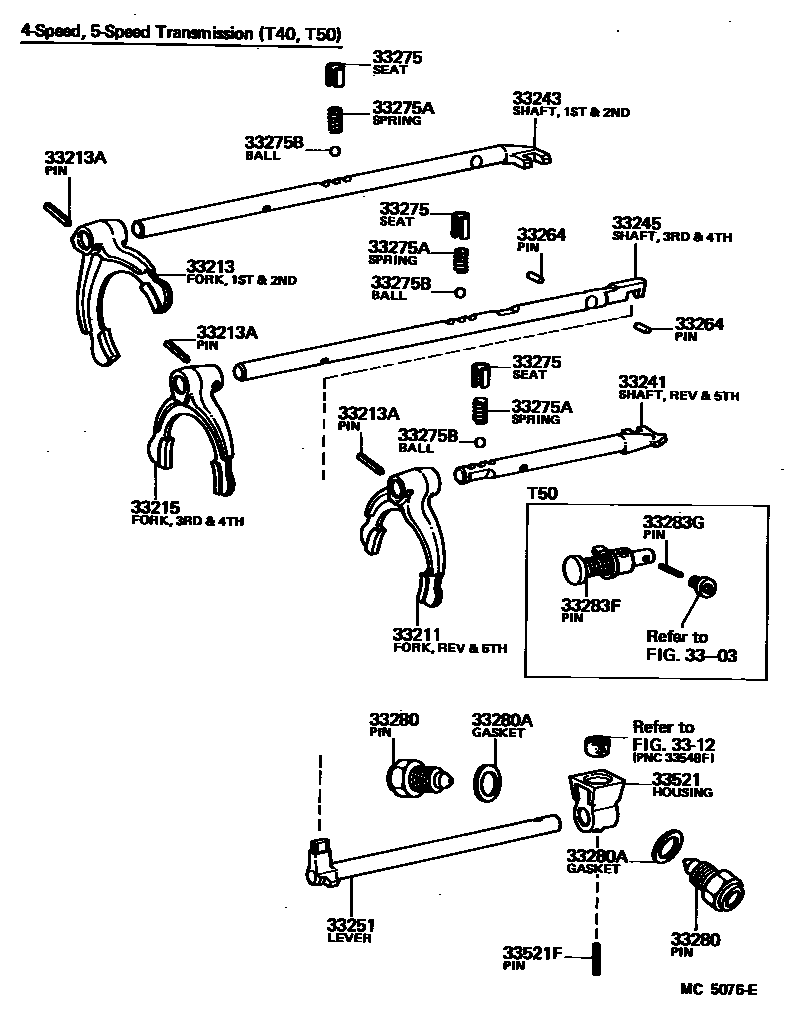

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0004 1

3303

3312

33211FORK, REVERSE SHIFT

main33214-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33213FORK, 1ST & 2ND SHIFT

main33212-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33212-20050iCA6#..5F198202-198508

main33212-22020iRA63,TA63..5F..(GT,GTT)198109-198804

sub33212-30050

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iAA6#,CA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main90254-05016iRA63,TA63..5F..(GT,GTT)198109-198804

33215FORK, 3RD & 4TH SHIFT

main33213-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33213-22030iCA67198109-198804

sub33213-22040

main33213-31010iCA6#..5F198202-198508

33241SHAFT, REVERSE SHIFT FORK

main33244-14050iAA6#,KA67,SA60,TA6#..5F..(GT,SE,SG,ST)198109-198804

main33244-14060iAA60,KA67,SA60,TA67..4F198109-198804

main33244-20902iCA6#..5F198202-198508

main33244-22020iRA63,TA63..5F..(GT,GTT)198109-198804

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-14030iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33242-20060iCA6#..5F198202-198508

main33242-22020iRA63,TA63..5F..(GT,GTT)198109-198804

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iTA63..5F..GTT198302-198804

sub33240-22021

main33243-14030iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198403

main33243-14040iAA6#,KA67,SA60..MTM198403-198804

main33243-20031iCA6#..5F198202-198508

main33243-22030iRA63,TA63..5F..(GT,GTT)198109-198302

sub33240-22020

sub33214-22030

33251LEVER, SHIFT & SELECT

main33251-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33251-20040iCA6#..5F198202-198508

main33251-22030iRA63,TA63..5F..(GT,GTT)198109-198302

sub33251-22050

main33251-22050iTA63..5F..GTT198302-198804

sub33251-22051

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iRA63,TA63..5F..(GT,GTT)198109-198804

main33264-31010iCA6#..5F198202-198508

main90250-06188iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main90341-10004iCA6#..5F198202-198508

main90341-12004iCA67198109-198710

main90341-12014iCA67198710-198804

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13001iCA6#..5F198202-198508

main90501-13004iRA63,TA63..5F..(GT,GTT)198109-198804

sub90501-14123

main90501-14237iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33275BBALL, SHAFT DETENT

main90360-08009iCA6#..5F198202-198508

main90360-10003iAA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

33280PIN ASSY, REVERSE RESTRICT

main33280-12040iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

RH

main33280-12050iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

LH

main33280-22020iCA67198109-198804

RH

main33280-22030iCA67198109-198804

LH

33280AGASKET, REVERSE RESTRICT PIN

main90430-18007iRA63,TA63..5F..(GT,GTT)198109-198408

sub90430-18008

main90430-18008iTA63..5F198408-198804

main90430-22002iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33283PIN, REVERSE RESTRICT, NO.1

main33283-22010iCA6#..5F198202-198508

33283FPIN, REVERSE RESTRICT

main33280-20030iAA6#,KA67,SA60,TA6#..5F..(GT,SE,SG,ST)198109-198804

main33280-22010iRA63,TA63..5F..(GT,GTT)198109-198804

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05001iAA6#,KA67,SA60,TA6#..5F..(GT,SE,SG,ST)198109-198804

main90254-05016iCA67198109-198804

33521HOUSING, SHIFT LEVER

main33502-14100iRA63,TA63..5F..(GT,GTT)198109-198507

main33502-22180iCA67198508-198804

main33521-14060iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33521-20140iCA6#..5F198202-198301

sub33521-20141

main33521-20141iCA6#..5F198301-198508

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90105-08079iCA67198303-198804

main90113-08001iRA63,TA63..5F..(GT,GTT)198109-198303

main90254-05001iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main90254-05016iCA6#..5F198202-198508

21 parts on this diagram · 3 diagrams in section
