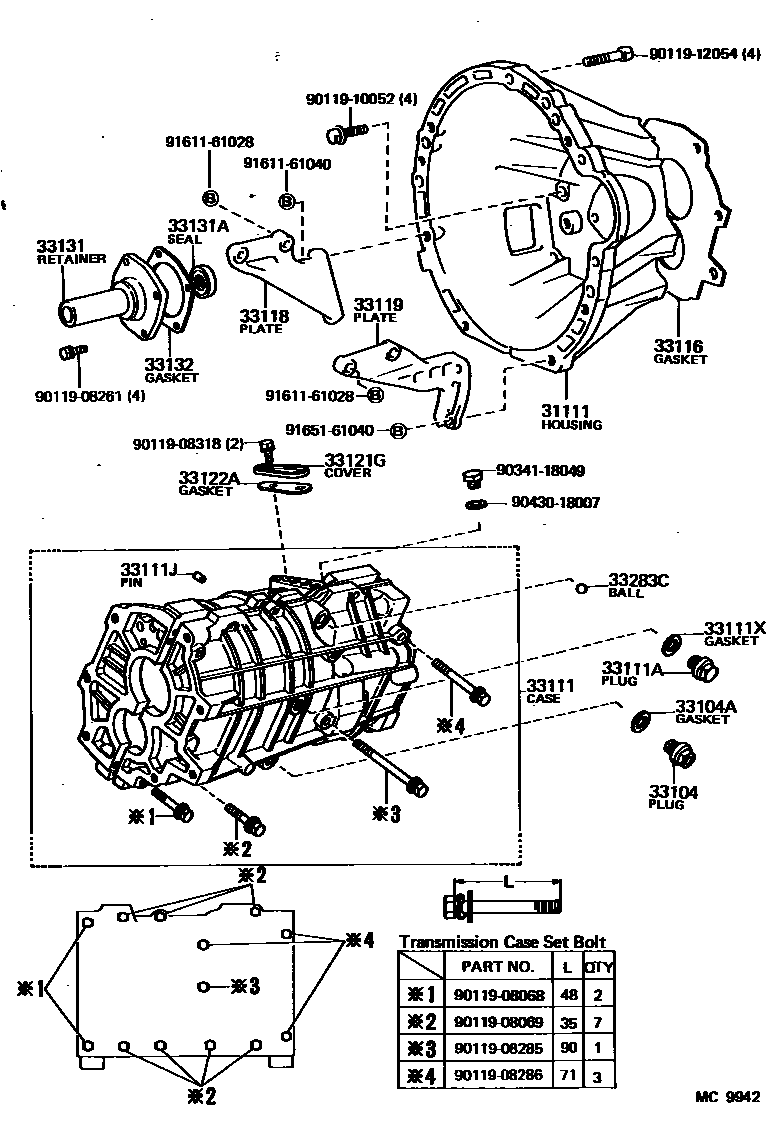

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

31111HOUSING, CLUTCH

main31111-12040iAA60..MTM198208-198712

main31111-12050iAA63198305-198507

main31111-12060iKA67..MTM198308-198804

main31111-14060iRA63198109-198210

main31111-14070iTA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198308

main31111-14080iAA60..MTM198109-198208

main31111-14090iSA60..MTM198109-198804

main31111-20160iTA63..5F..GTT198210-198507

main31111-20200iCA6#..5F198202-198508

main31111-22120iCA67198508-198804

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iCA6#,RA63..5F198109-198804

main90341-18081iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198410

main90430-18008iAA6#,CA67,KA67,SA60,TA63..MTM198410-198804

33111CASE, MANUAL TRANSMISSION

main33101-14040iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198608

main33101-14051iAA60,KA67,SA60..MTM198608-198804

main33101-22021iRA63,TA63..5F..(GT,GTT)198109-198411

main33101-22030iCA67198508-198804

main33101-30021iCA6#..5F198207-198508

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iAA60,CA6#,RA63,SA60,TA6#..MTM198109-198210

main90341-18006iAA60,KA67,SA60..MTM198508-198804

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08030×2iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main90250-12002×6iCA67198508-198804

main90250-12146×2iRA63198109-198208

main90250-12195×2iCA6#..5F198202-198508

OD=12,L=39

main90334-06017iCA6#..5F198202-198508

OD=6,L=11

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198410

main90430-18008iAA6#,CA67,KA67,SA60,TA63..MTM198410-198804

33116GASKET, MANUAL TRANSMISSION CASE

main33116-14020iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33132-20040iCA6#..5F198202-198508

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKA67..MTM198308-198804

main33118-14010iTA6#..MTM198109-198507

main33118-14030iCA6#,SA60..MTM198109-198410

main33118-14031iCA67,SA60..5F198410-198508

main33118-14032iCA67,SA60..5F198508-198607

main33118-14033iCA67,SA60..5F198607-198804

main33118-14040iAA6#..MTM198109-198804

main33118-22030iRA63198109-198210

33119PLATE, STIFFENER, LH(MTM)

main33119-12021iKA67..MTM198308-198804

main33119-12080iAA60..MTM198208-198302

main33119-12081iAA6#..MTM198302-198804

main33119-14040iTA6#..MTM198109-198507

main33119-14050iCA6#,SA60..MTM198109-198804

main33119-14060iAA60..MTM198109-198208

main33119-22021iRA63198109-198210

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33131RETAINER, BEARING, FRONT(MTM)

main33131-14020iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33131-22020iCA67198508-198804

main33131-31010iCA6#..5F198202-198508

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-25003iAA6#,KA67,SA60,TA6#..MTM198109-198804

main90311-30115iTA63..5F..GTT198210-198507

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-14020iAA6#,KA67,SA60,TA6#..MTM198109-198804

main33132-22010iRA63,TA63..5F..(GT,GTT)198109-198507

33283CBALL, REVERSE RESTRICT

main90360-10003iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

9011908068

main90119-08068

9011908069

main90119-08069

9011908261

main90119-08261

9011908285

main90119-08285

9011908286

main90119-08286

9011908318

main90119-08318

9011910052

main90119-10052

9011912054

main90119-12054

9034118049

main90341-18049

9043018007

main90430-18007

9161161028

main91611-61028

9161161040

main91611-61040

9165161040

main91651-61040

29 parts on this diagram · 8 diagrams in section
