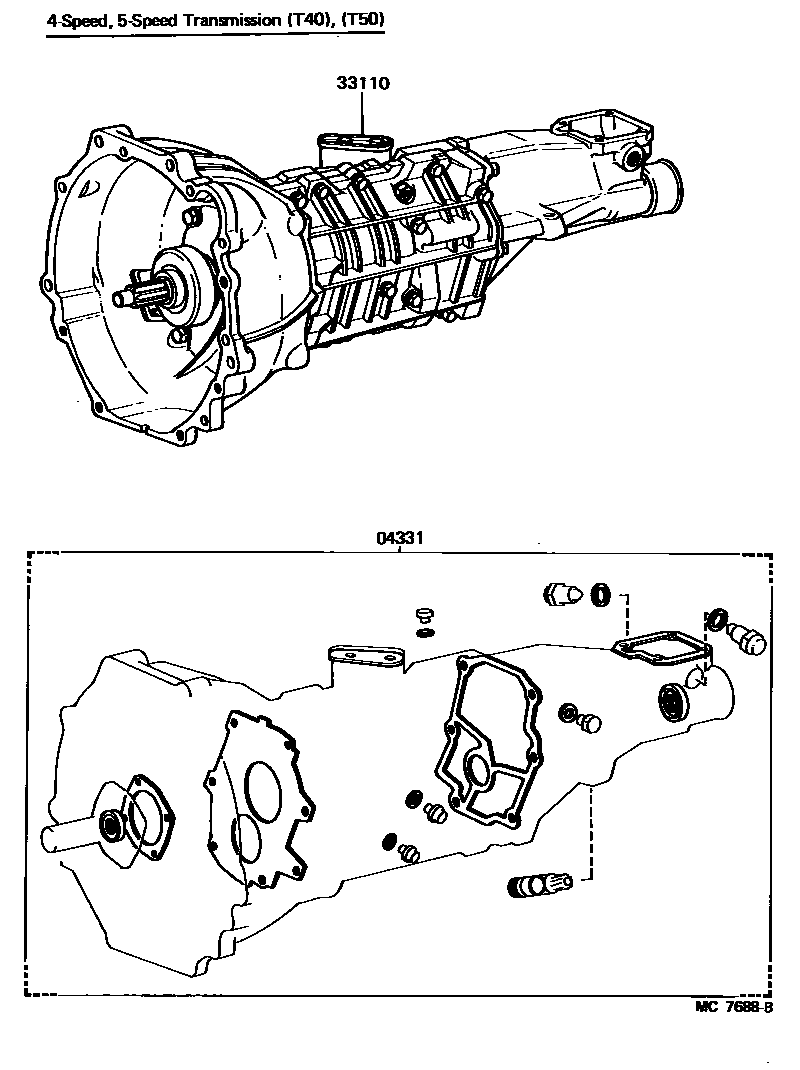

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0004 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14030iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main04331-20050iRA63,TA63..5F..(GT,GTT)198109-198507

main04331-22030iCA6#..5F198202-198508

33110TRANSMISSION ASSY, MANUAL

main33030-12450iAA63198305-198507

main33030-12460iKA67..4F198308-198508

main33030-14540iTA67..4F198109-198304

main33030-14541iTA67..4F198304-198308

main33030-14550iTA6#..5F..(GT,SE,SG,ST)198109-198305

main33030-14551iTA67..5F198305-198308

main33030-14570iSA60..4F198109-198304

main33030-14571iSA60..4F198304-198305

main33030-14590iSA60..5F198109-198305

main33030-14591iSA60..5F198305-198804

main33030-14600iAA60..4F198109-198207

main33030-14601iAA60..4F198207-198304

main33030-14602iAA60..4F198304-198305

main33030-14610iAA60..5F198109-198207

main33030-14611iAA60..5F198207-198304

main33030-14612iAA60..5F198304-198712

main33030-14620iRA63198109-198210

main33030-14710iTA63..5F..GTT198210-198507

main33030-14810iAA60..4F198305-198804

main33030-14830iKA67..5F198308-198804

main33030-2B030iCA6#..5F198202-198507

SMG R=20:6

main33030-2B040iCA67198202-198508

W/165R13 TIRE,SMG R=21:6

main33030-2B120iKA67..4F198508-198804

main33030-2B130iCA67198508-198804

2 parts on this diagram · 3 diagrams in section
