IGNITION COIL & SPARK PLUG / GLOW PLUG

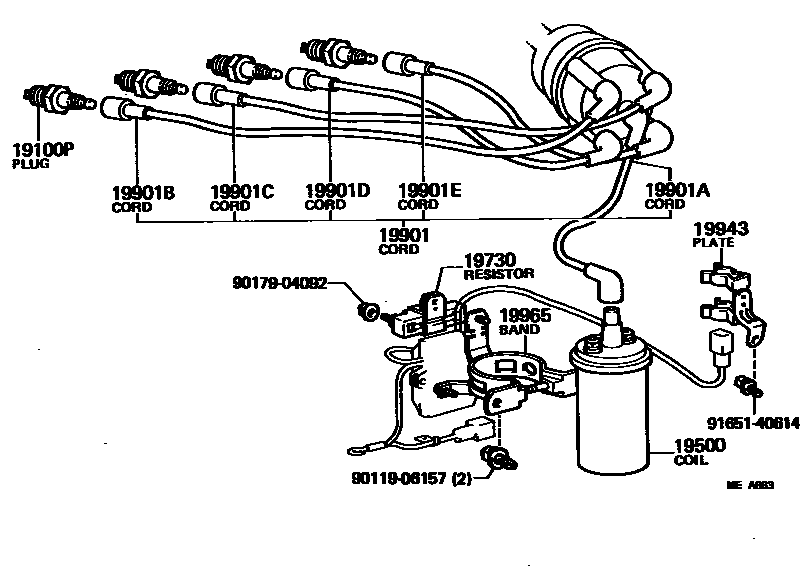

Parts diagram
19100PPLUG, SPARK
main90919-01064i198109-198305
main90919-01085i198109-198712
main90919-01087i198109-198308
BP5EK-A(NGK)
main90919-01090i198109-198308
W16ET-S(DENSO)
main90919-01091i198109-198804
main90919-01102i198109-198305
main90919-01104i198109-198804
main90919-01113i198109-198210
main90919-01114i198109-198210
main90919-01117i198308-198804
main90919-01118i198308-198804
main90919-01121i198305-198507
main90919-01122i198305-198507
main90919-01125i198210-198507
main90919-01126i198210-198507
19500COIL ASSY, IGNITION
main90919-02083i198109-198712
main90919-02113i198305-198507
W/IGNITER
main90919-02117i198109-198308
main90919-02117i198210-198305
W/IGNITER
main90919-02131i198109-198305
main90919-02136i198210-198305
main90919-02147i198308-198804
main90919-02158i198305-198507
19730RESISTOR, IGNITION COIL
main90919-04030i198109-198712
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21120i198109-198308
main90919-21169i198109-198305
main90919-21236i198202-198210
W/PS
main90919-21265i198109-198210
main90919-21266i198109-198305
main90919-21284i198109-198203
sub90919-21305
main90919-21305i198203-198712
main90919-21313i198210-198305
sub90919-21336
main90919-21332i198305-198507
main90919-21336i198305-198507
main90919-21344i198308-198804
main90919-22113i198109-198804
19901ACORD, COIL RESISTIVE
main90072-77405i198109-198305
main90919-13046i198308-198804
sub90919-13048
main90919-13093i198203-198712
main90919-13102i198109-198507
main90919-13105i198202-198210
W/PS
main90919-13105i198109-198308
main90919-13131i198109-198203
main90919-13165i198109-198210
main90919-13208i198210-198305
L=300
main90919-13209i198210-198507
L=230
main90919-13225i198305-198507
L=300
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90072-76848i198109-198305
main90919-12084i198308-198804
main90919-12149i198109-198308
main90919-12224i198109-198305
main90919-12238i198109-198210
main90919-12356i198109-198712
main90919-12391i198109-198209
main90919-12394i198209-198804
main90919-12435i198210-198507
FR
main90919-12436i198210-198507
RR
main90919-12502i198305-198507
sub90919-15558
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90072-76849i198109-198305
main90919-12083i198308-198804
main90919-12150i198109-198308
main90919-12225i198109-198305
main90919-12239i198109-198210
main90919-12357i198109-198712
main90919-12392i198109-198804
main90919-12437i198210-198507
FR
main90919-12438i198210-198507
RR
main90919-12503i198305-198507
sub90919-15559
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90072-76850i198109-198305
main90919-12083i198308-198804
main90919-12151i198109-198308
main90919-12226i198109-198305
main90919-12240i198109-198210
main90919-12358i198109-198712
main90919-12392i198209-198804
main90919-12393i198109-198209
main90919-12439i198210-198507
FR
main90919-12440i198210-198507
RR
main90919-12504i198305-198507
sub90919-15560
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90072-76851i198109-198305
main90919-12084i198308-198804
main90919-12152i198109-198308
main90919-12227i198109-198305
main90919-12241i198109-198210
main90919-12359i198109-198712
main90919-12394i198109-198804
main90919-12441i198210-198507
FR
main90919-12442i198210-198507
RR
main90919-12505i198305-198507
sub90919-15561
19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
main19943-15011i198109-198712
main19943-28010i198109-198305
main19943-88260i198109-198305
19965BAND, IGNITION COIL, NO.1
main90919-03075i198109-198305
main90919-03076i198109-198308
main90919-03077i198109-198712
sub90919-03075
main90919-03086i198210-198507
9011906157
main90119-06157
9017904092
main90179-04092
9165140614
main91651-40614

14 parts on this diagram · 9 diagrams in section
