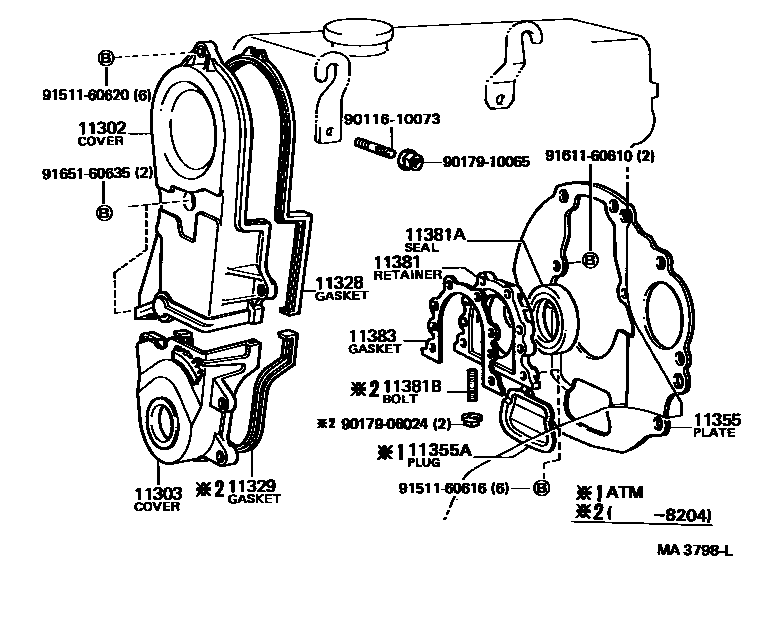

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15010i3AU..AA60198109-198305

main11302-15020i3AU..AA60198305-198712

main11302-63010i1SU..SA60198109-198804

main11321-13041i5KJ..KA67198308-198509

main11321-13042i5KJ..KA67198509-198804

main11321-28010i12TJ,3TEU..TA63,67198109-198308

main11321-88221i2TGEU..TA61198109-198305

main11321-88252i18RGEU..RA63198109-198112

sub11321-88270

main11321-88270i18RGEU..RA63198112-198210

main11321-88280i3TGTEU..TA63198210-198507

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15010i3AU..AA60198109-198204

sub11303-15020

main11303-15020i3AU..AA60198204-198712

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-13011i5KJ..KA67198308-198804

sub11328-13030

main11328-15010i3AU..AA60198109-198305

main11328-15020i3AU..AA60198305-198712

main11328-25011i12TJ,3TEU..TA63,67198109-198201

sub11328-25012

main11328-25012i12TJ,3TEU..TA63,67198201-198308

sub11328-25013

main11328-63010i1SU..SA60198109-198804

main11328-88220i2TGEU,3TGTEU..TA61,63198109-198507

sub11328-88221

main11328-88270i18RGEU..RA63198109-198210

sub11328-88271

11329GASKET, TIMING GEAR REAR COVER

main11329-15010i3AU..AA60198109-198204

11355PLATE, REAR END

main11305-13010i5KJ..KA67..MTM198308-198503

sub11355-24043

sub90950-01343

main11355-15021i3AU,4AGEU..AA6#..MTM198109-198712

main11355-15031i3AU..AA60..ATM198109-198712

main11355-24042i5KJ..KA67..3FC198308-198503

sub11355-24043

main11355-24043i5KJ..KA67198503-198804

main11355-25012i12TJ,2TGEU,3T#..TA6#..MTM198109-198507

main11355-25023i12TJ,3T#..TA63,67..ATM198109-198507

main11355-33012i18RGEU..RA63198109-198210

main11355-63010i1SU..SA60198109-198804

main11355-64010i1C..CA6#..5F198202-198505

sub11355-64011

main11355-64011i1C..CA67198505-198804

main11355-64020i1C..CA60..4FC198202-198405

sub11355-64021

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i3AU..AA60..ATM198109-198712

main90950-01307i12TJ,3T#..TA63,67..ATM198109-198507

main90950-01343i5KJ..KA67..3FC198308-198804

main90950-01358i1C..CA60..4FC198202-198405

sub90950-01548

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13011i5KJ..KA67198308-198804

main11381-15010i3AU,4AGEU..AA6#198109-198712

main11381-25010i12TJ,2TGEU,3T#..TA6#198109-198507

main11381-38010i18RGEU..RA63198109-198210

main11381-63010i1SU..SA60198109-198607

main11381-63011i1SU..SA60198607-198804

sub11381-63012

main11381-64010i1C..CA6#198202-198310

sub11381-64011

main11381-64011i1C..CA6#198310-198505

sub11381-64012

main11381-64012i1C..CA67198505-198804

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-70001i3AU..AA60198109-198201

HTC 70 92 12

main90311-70004i3AU,4AGEU..AA6#198201-198804

HTC 70 92 8.5

sub90311-70007

main90311-75113i12TJ,2TGEU,3T#..TA6#198109-198507

sub90311-75004

main90311-80001i18RGEU..RA63198109-198210

TC80 100 12

main90311-85003i1SU..SA60198109-198804

sub90311-85006

main90311-90002i1C..CA6#198202-198505

main90311-90003i1C..CA67198505-198804

sub90311-90005

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06022i1SU..SA60198109-198607

main90116-06033i1C..CA6#198202-198804

main90116-06035i5KJ..KA67198308-198804

L=23,S=12&9

main92122-60612i3AU..AA60198109-198205

L=21,S=9&9

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-13010i5KJ..KA67198308-198804

main11383-15010i3AU,4AGEU..AA6#198109-198712

sub11383-15011

main11383-25010i12TJ,2TGEU,3T#..TA6#198109-198507

main11383-33010i18RGEU..RA63198109-198210

sub11383-35010

main11383-63010i1SU..SA60198109-198804

sub11383-63011

main11383-64010i1C..CA6#198202-198310

sub11383-64011

9011610073

main90116-10073

9017906024

main90179-06024

9017910065

main90179-10065

9151160616

main91511-60616

9151160620

main91511-60620

9161160610

main91611-60610

9165160635

main91651-60635

17 parts on this diagram · 9 diagrams in section
