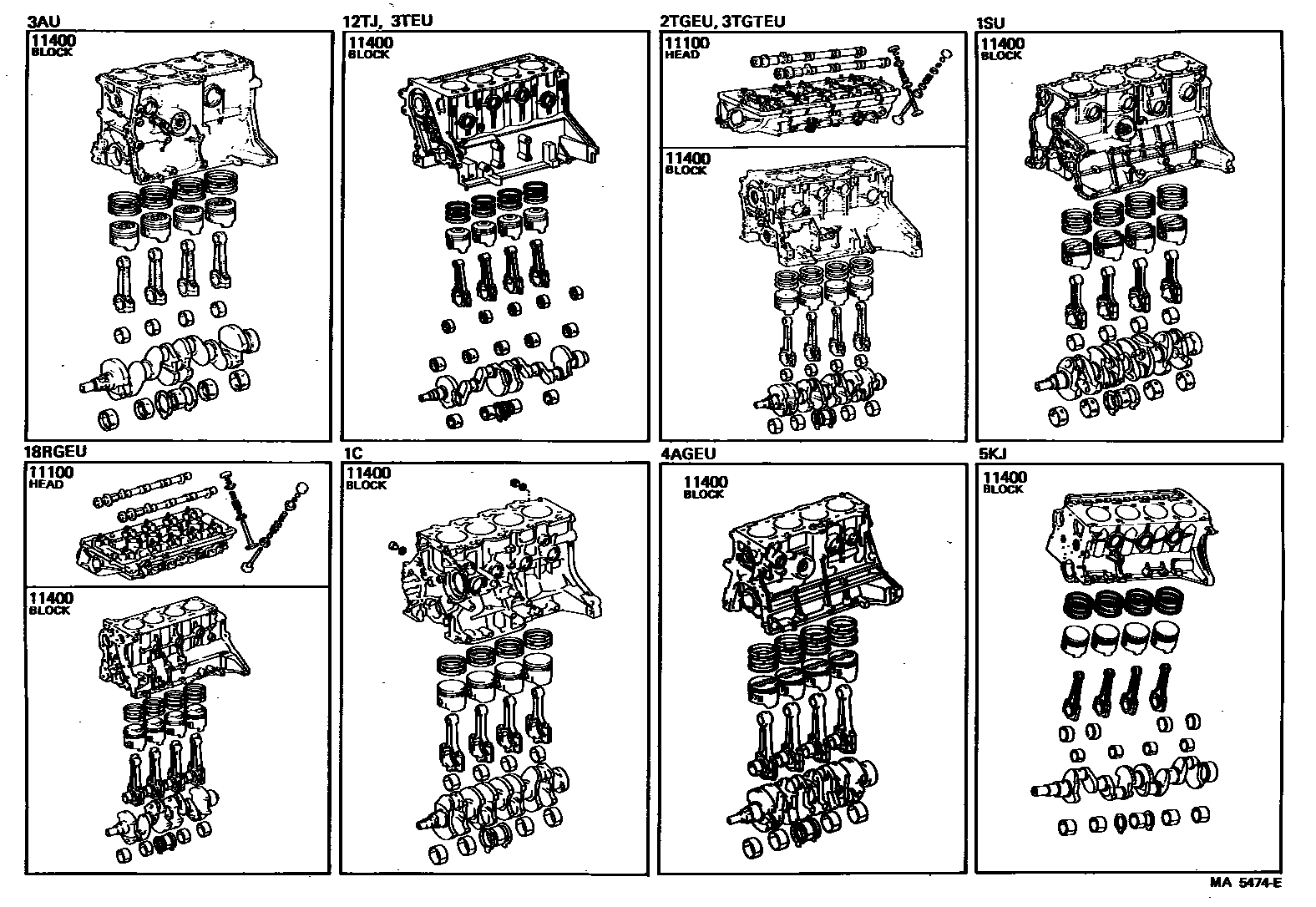

SHORT BLOCK ASSEMBLY

Parts diagram

11100HEAD ASSY, SHORT

main11100-27040i198109-198305

main11100-88270i198109-198210

main11100-88290i198210-198507

11400BLOCK ASSY, SHORT

main11400-13040i198308-198411

main11400-13041i198411-198804

main11400-15020i198109-198305

main11400-15040i198305-198712

main11400-16040i198305-198507

main11400-27080i198109-198207

main11400-27081i198207-198308

main11400-27090i198109-198207

main11400-27091i198207-198305

main11400-28021i198109-198207

main11400-28022i198207-198305

main11400-63010i198109-198607

main11400-63011i198607-198804

main11400-64020i198202-198303

main11400-64021i198303-198307

main11400-64022i198307-198508

main11400-64100i198508-198608

main11400-64101i198608-198804

main11400-88280i198109-198210

main11400-88310i198210-198507

2 parts on this diagram · 1 diagram in section
