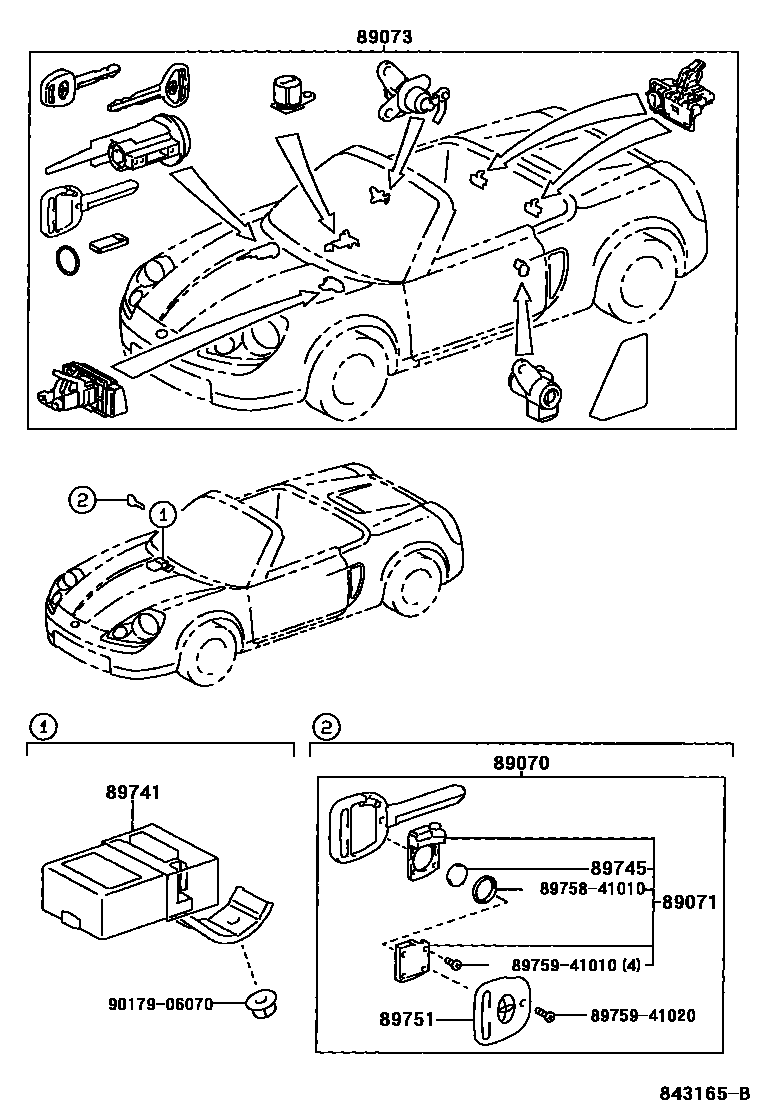

WIRELESS DOOR LOCK

0001 1 0002 1

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-17020iZZW30199910-200208

main89070-17040iZZW30200208

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030iZZW30200208

main89071-52010iZZW30199910-200208

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-17630iZZW30200208

main89073-17050iZZW30199910-200208

89741RECEIVER, DOOR CONTROL

main89741-17040iZZW30199910-200208

main89741-17080iZZW30200208

89745BATTERY, TRANSMITTER

main89745-41010iZZW30199910-200208

89751COVER, TRANSMITTER HOUSING

main89751-17010iZZW30199910-200208

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9017906070

main90179-06070

10 parts on this diagram · 2 diagrams in section
