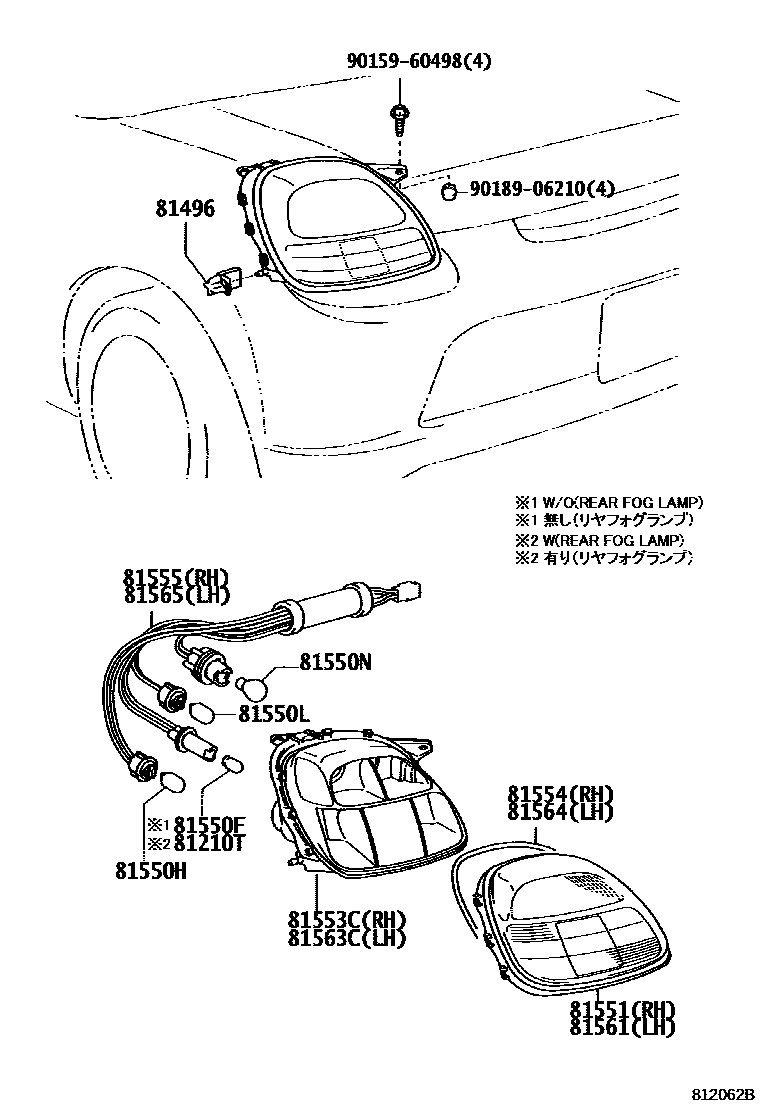

REAR COMBINATION LAMP
81210TBULB, REAR FOG LAMP
81496GUIDE, REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550HBULB, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81551LENS, REAR COMBINATION LAMP, RH
81553CBODY, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561LENS, REAR COMBINATION LAMP, LH
81563CBODY, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9015960498
main90159-60498
9018906210
main90189-06210
17 parts on this diagram · 3 diagrams in section
