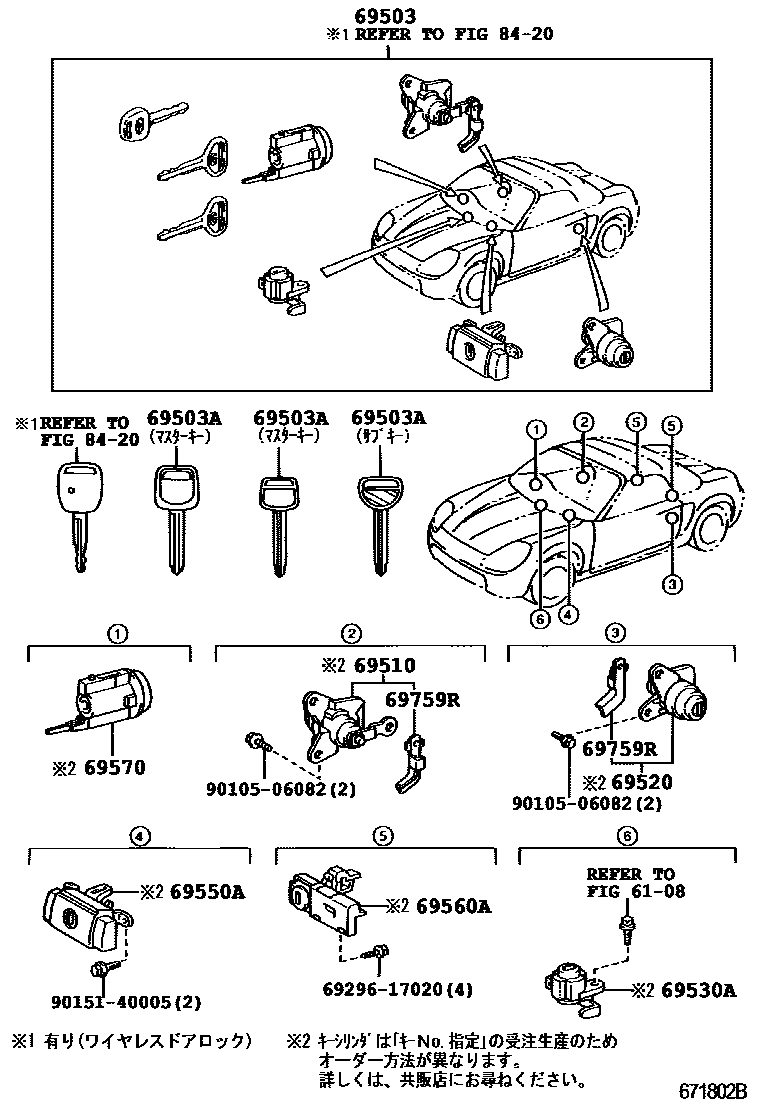

LOCK CYLINDER SET

6108ENGINE HOOD & LOCK

→ Go to FIG 61-08

69503CYLINDER SET, LOCK

main69005-17580iZZW30199910-200208

69503AKEY, BLANK

main90999-00163iZZW30200208

main90999-00164iZZW30200208

main90999-00165iZZW30199910-200208

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-17060iZZW30199910-200208

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-17080iZZW30199910-200208

69530ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL

main69530-17010iZZW30199910-200208

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-17040iZZW30200208

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69550-17050×2iZZW30199910-200208

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-52020iZZW30200208

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-44010iZZW30199910-200208

main69759-44020iZZW30199910-200208

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

6929617020SCREW, DOOR INSIDE HANDLE

main69296-17020

9010506082

main90105-06082

9015140005

main90151-40005

14 parts on this diagram · 1 diagram in section
