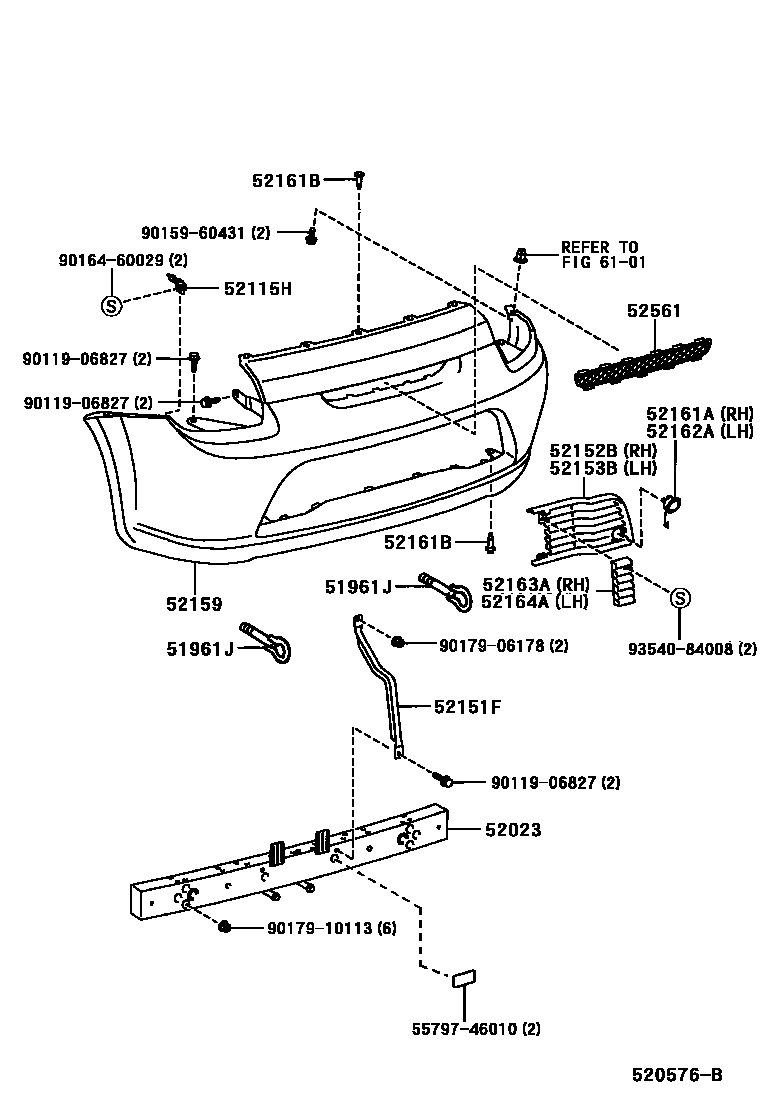

REAR BUMPER & BUMPER STAY
51961JHOOK, REAR
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52115HSUPPORT, REAR BUMPER SIDE
52151FSTAY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
SUPER WHITE 2,040
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK,202
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
DARK GREEN MC.,6R4
BLUE MC.,8M6
LT.BLUE M.M.,8R2
V EDITION FINAL VERSION *(F)
52153BEXTENSION, REAR BUMPER, LH
SUPER WHITE 2,040
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK,202
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
DARK GREEN MC.,6R4
BLUE MC.,8M6
LT.BLUE M.M.,8R2
V EDITION FINAL VERSION *(F)
52159COVER, REAR BUMPER
SUPER WHITE 2,040
SILVER ME.,1D0
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK,202
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
GREEN M.M.,6S1
DARK GREEN MC.,6R4
BLUE MC.,8M6
LT.BLUE M.M.,8R2
52161BPIECE, REAR BUMPER
52561RETAINER, REAR BUMPER, UPPER CENTER
6101SIDE MEMBER
5579746010HOLDER, COWL VENTILATOR LOUVER
main55797-46010
9011906827
main90119-06827
9015960431
main90159-60431
9016460029
main90164-60029
9017906178
main90179-06178
9017910113
main90179-10113
9354084008
main93540-84008
21 parts on this diagram · 2 diagrams in section
