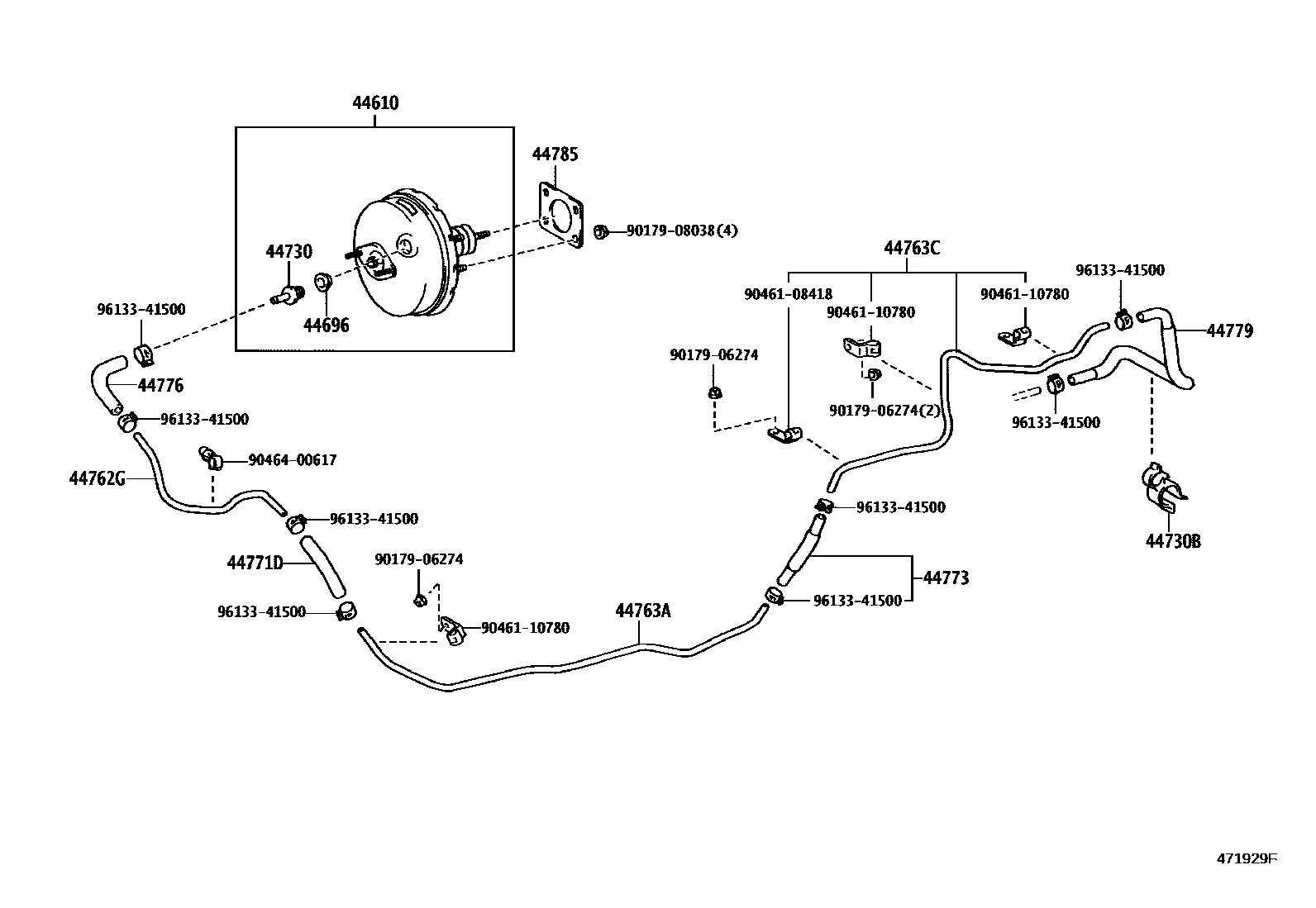

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-17340iZZW30199910-200208

main44610-17341iZZW30200311-200707

44696GROMMET, CHECK VALVE

main90480-24015iZZW30199910-200208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iZZW30200305

main44730-30010iZZW30200208-200305

44730BCLAMP, VACUUM HOSE

main87124-17020iZZW30199910-200208

44762GTUBE, VACUUM CHECK VALVE TO CONNECTOR

main44762-17010iZZW30199910-200208

44763ATUBE, HOSE TO HOSE, NO.1

main44763-17060iZZW30199910-200208

main44763-17061iZZW30200208

44763CTUBE, HOSE TO HOSE, NO.2

main44763-17070iZZW30199910-200208

44771DHOSE, VACUUM TUBE CONNECTOR

main44776-17130iZZW30199910-200208

44773HOSE, VACUUM, NO.2

main44771-17050iZZW30199910-200208

44776HOSE, BRAKE BOOSTER

main44776-17130iZZW30199910-200208

44779HOSE, UNION TO CONNECTOR

main44779-17090iZZW30199910-200208

44785GASKET, BRAKE BOOSTER

main44785-17010iZZW30199910-200208

9017906274

main90179-06274

9017908038

main90179-08038

9046108418

main90461-08418

9046110780

main90461-10780

9046400617

main90464-00617

9613341500

main96133-41500

18 parts on this diagram · 1 diagram in section
