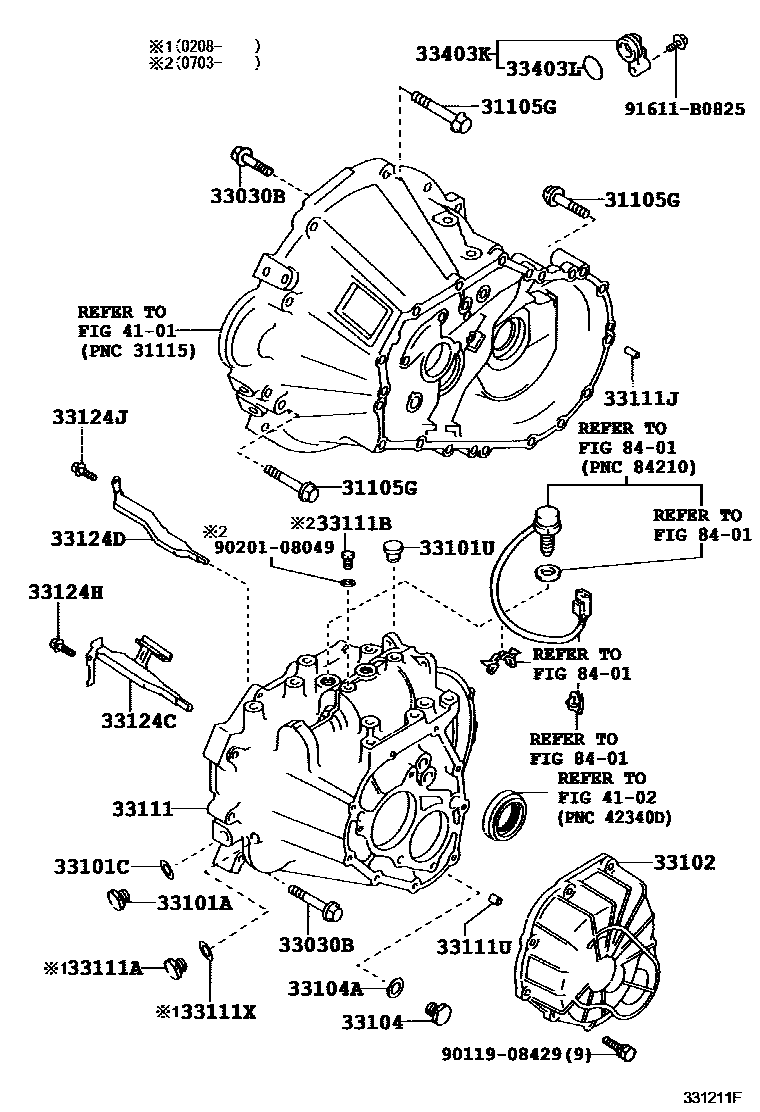

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C56,C65 0002 1C56M,C65M

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91619-61255199910-200208

main91642-81055199910-200208

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064199910-200208

main90105-08086199910-200607

main90105-08353200208

main90105-08430200607

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006199910-200208

main90341-18023200208

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008199910-200208

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133199910-200208

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021199910-200208

main33102-20050200208

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006199910-200505

main90341-18033200505

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008199910-200208

33111CASE, MANUAL TRANSMISSION

main33111-12230200208-200301

main33111-12231200301-200408

main33111-12232200408-200703

main33111-12250200703

main33111-17100199910-200208

main33111-17111200008-200208

main33111-17120200208-200408

main33111-17121200408

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18038200208

33111BBOLT, STUD OR BOLT(FOR TRANSMISSION CASE)

main90101-08166200703

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-05121200008-200208

main90250-08054199910-200208

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001199910-200208

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008200208

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050199910-200208

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021199910-200208

main33124-20060200208

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820199910-200208

33124JBOLT, W/WASHER

main91611-G0820199910-200208

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230199910-200208

33403LRING, O

main96711-24030199910-200208

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908429

main90119-08429

9020108049

main90201-08049

91611B0825

main91611-B0825

26 parts on this diagram · 2 diagrams in section
