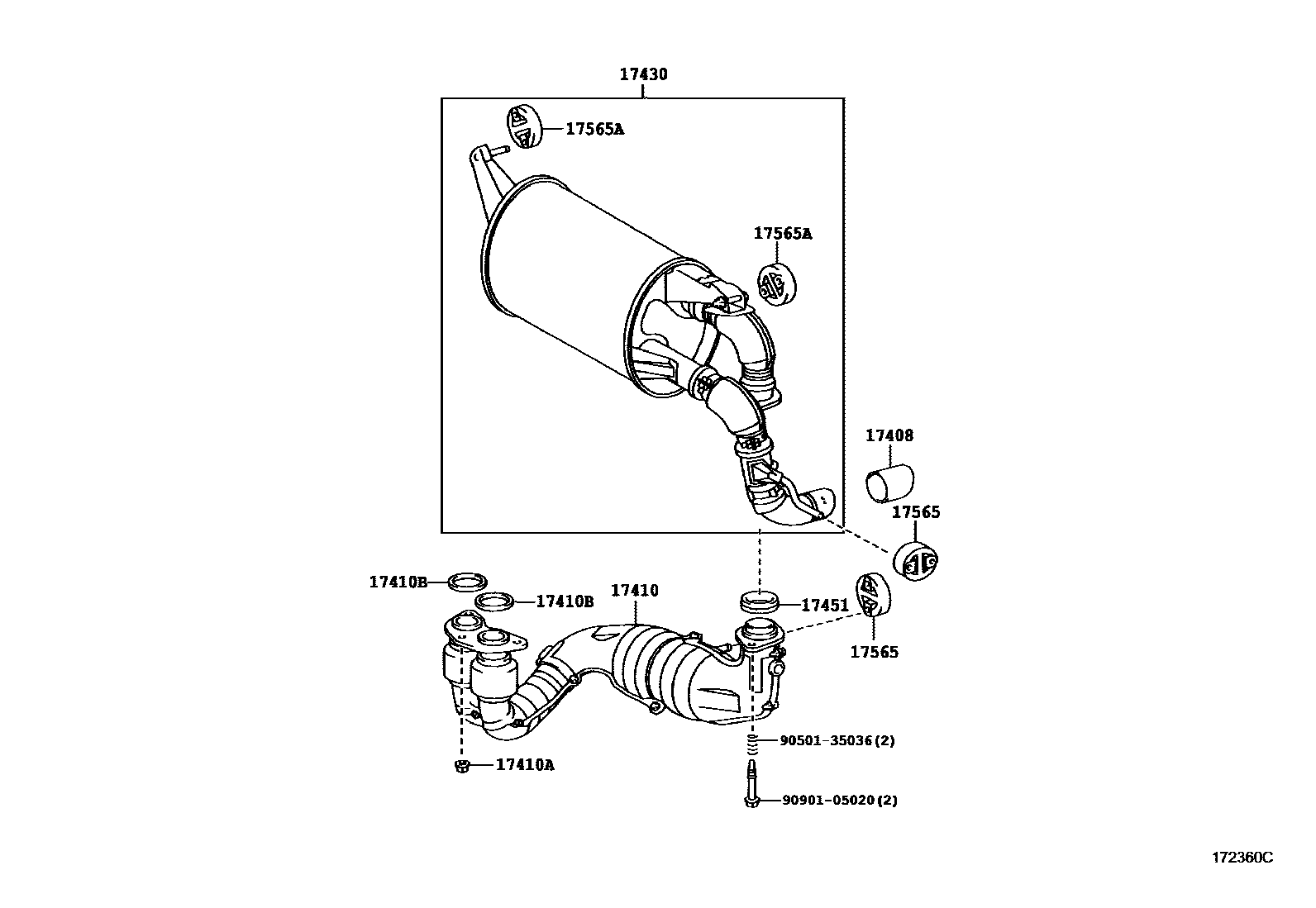

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
V EDITION FINAL VERSION *(F)
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
V EDITION FINAL VERSION *(F)
17451GASKET, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
9050135036
main90501-35036
9090105020
main90901-05020
10 parts on this diagram · 1 diagram in section
