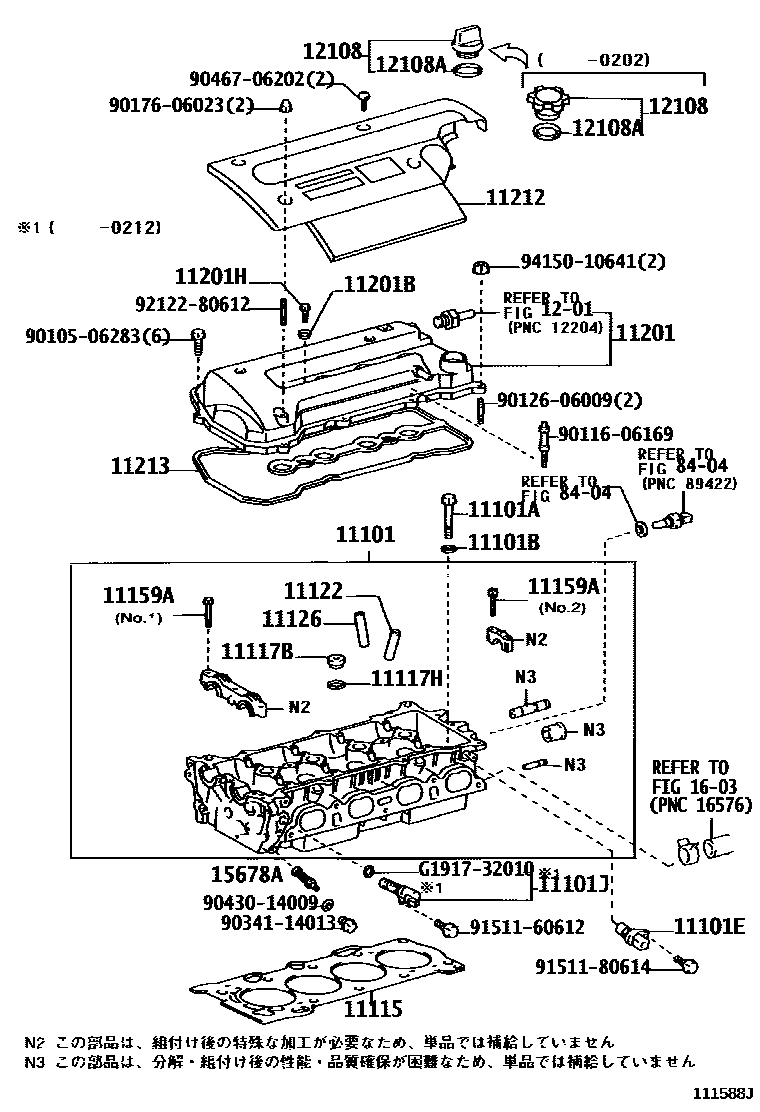

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-22051i1ZZFE..ZZW30199910-200206

sub11101-22052

main11101-22052i1ZZFE..ZZW30200206-200208

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02134i1ZZFE..ZZW30199910-200208

sub90910-02152

main90910-02152i1ZZFE..ZZW30200208

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i1ZZFE..ZZW30199910-200208

11101ESENSOR, CAM POSITION

main90919-05026i1ZZFE..ZZW30199910-200707

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-22010i1ZZFE..ZZW30199910-200103

sub15330-22030

main15330-22030i1ZZFE..ZZW30200103-200208

sub15330-22050

11115GASKET, CYLINDER HEAD

main11115-22040i1ZZFE..ZZW30199910-200207

sub11115-22041

main11115-22041i1ZZFE..ZZW30200207-200302

sub11115-22050

main11115-22050i1ZZFE..ZZW30200302

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-20002i1ZZFE..ZZW30199910-200208

11117HGASKET(FOR WATER HOLE)

main90430-20004i1ZZFE..ZZW30199910-200208

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i1ZZFE..ZZW30200110-200208

sub11122-22040

main11122-22030i1ZZFE..ZZW30199910-200110

main11123-20020i1ZZFE..ZZW30200110-200208

main11123-22030i1ZZFE..ZZW30199910-200110

sub11123-20020

11126BUSH, EXHAUST VALVE GUIDE

main11122-20020i1ZZFE..ZZW30200110-200208

sub11122-22040

main11122-22030i1ZZFE..ZZW30199910-200110

main11123-20020i1ZZFE..ZZW30200110-200208

main11123-22030i1ZZFE..ZZW30199910-200110

sub11123-20020

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1ZZFE..ZZW30199910-200208

main90119-08A29i1ZZFE..ZZW30199910-200208

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-22060i1ZZFE..ZZW30199910-200208

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06012i1ZZFE..ZZW30199910-199912

sub90210-06013

main90210-06013i1ZZFE..ZZW30199912-200208

11201HBOLT(FOR CYLINDER HEAD COVER)

main90105-06202i1ZZFE..ZZW30200202-200208

main90105-06281i1ZZFE..ZZW30199910-200202

sub90105-06202

11212COVER, CYLINDER HEAD, NO.2

main11212-22060i1ZZFE..ZZW30199910-200105

sub11212-22061

main11212-22061i1ZZFE..ZZW30200105-200208

11213GASKET, CYLINDER HEAD COVER

main11213-22050i1ZZFE..ZZW30199910-200208

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1ZZFE..ZZW30200202-200208

main12180-55010i1ZZFE..ZZW30199910-200202

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i1ZZFE..ZZW30199910-200208

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1ZZFE..ZZW30199910-200208

8404

9010506283

main90105-06283

9011606169

main90116-06169

9012606009

main90126-06009

9017606023

main90176-06023

9034114013

main90341-14013

9043014009

main90430-14009

9046706202

main90467-06202

9151160612

main91511-60612

9151180614

main91511-80614

9212280612

main92122-80612

9415010641

main94150-10641

G191732010

mainG1917-32010

33 parts on this diagram · 1 diagram in section
