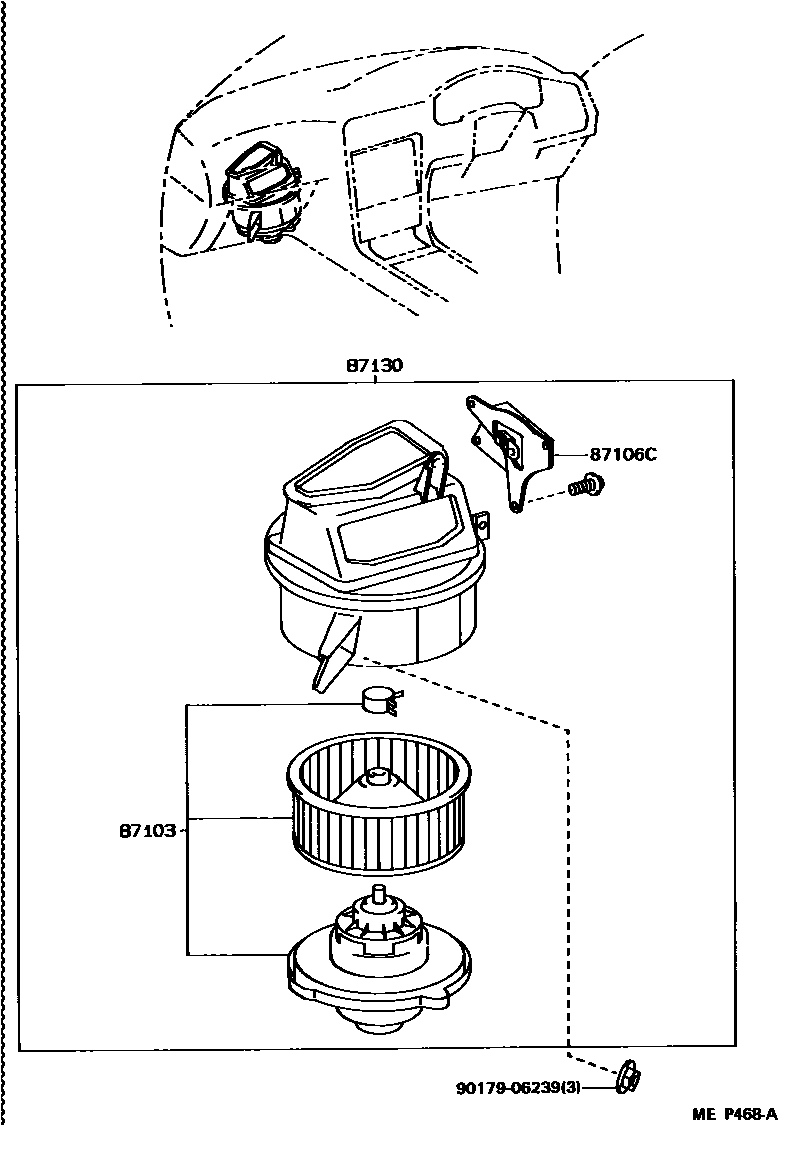

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BLOWER 0002 1RADIATOR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-17010iSW20198912-199701

main87103-42010iSW20199701

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-17110iSW20198912-199112

main87106-17111iSW20199112

87130BLOWER ASSY, HEATER, FRONT

main87130-17070iSW20198912-199112

main87130-17071iSW20199112

9017906239

main90179-06239

4 parts on this diagram · 2 diagrams in section
