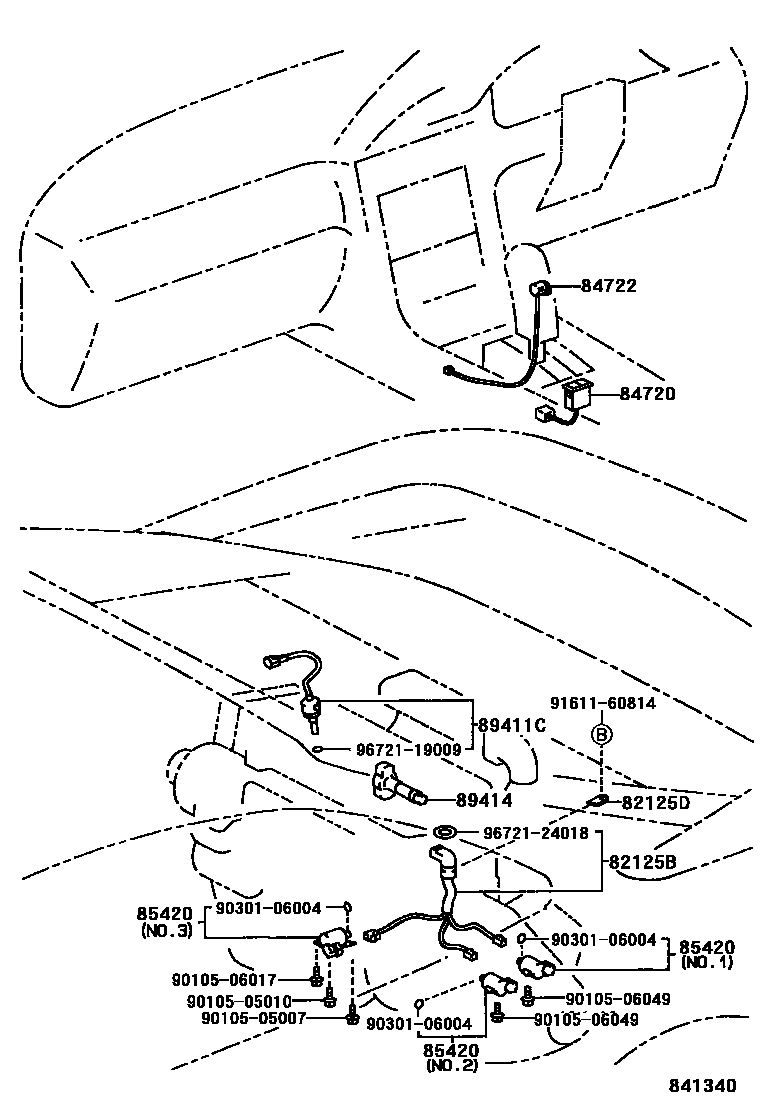

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125BWIRE, TRANSMISSION

main82125-20160iSW20..4FC198912-199502

main82125-20220iSW20..4FC199502

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iSW20..4FC198912

84720SWITCH ASSY, PATTERN SELECT

main84720-17030iSW20..4FC198912

84722SWITCH, TRANSMISSION CONTROL

main84722-17050-01iSW20..4FC198912-199311

BLACK,TRIM2#

main84722-17070-C0iSW20..4FC199311

BLACK,TRIM2#

85420SOLENOID ASSY, TRANSMISSION

main85420-12062iSW20..4FC198912-199502

main85420-20140iSW20..4FC199502-199712

main85420-21070iSW20..4FC199712

main85420-21080iSW20..4FC199712-199810

main85420-21090×2iSW20..4FC199712

main85420-21100×2iSW20..4FC199712

main85420-22080×2iSW20..4FC198912-199502

NO.1 OR NO.2

main85420-30200×2iSW20..4FC199502-199712

NO.1 OR NO.2

89411CSENSOR, SPEED

main89411-20050iSW20..4FC198912-199709

89414ROTOR, SENSOR

main89414-12010iSW20..4FC198912-199709

9010505007

main90105-05007

9010505010

main90105-05010

9010506017

main90105-06017

9010506049

main90105-06049

9030106004

main90301-06004

9161160814

main91611-60814

9672119009

main96721-19009

9672124018

main96721-24018

15 parts on this diagram · 2 diagrams in section
