FRONT SEAT & SEAT TRACK

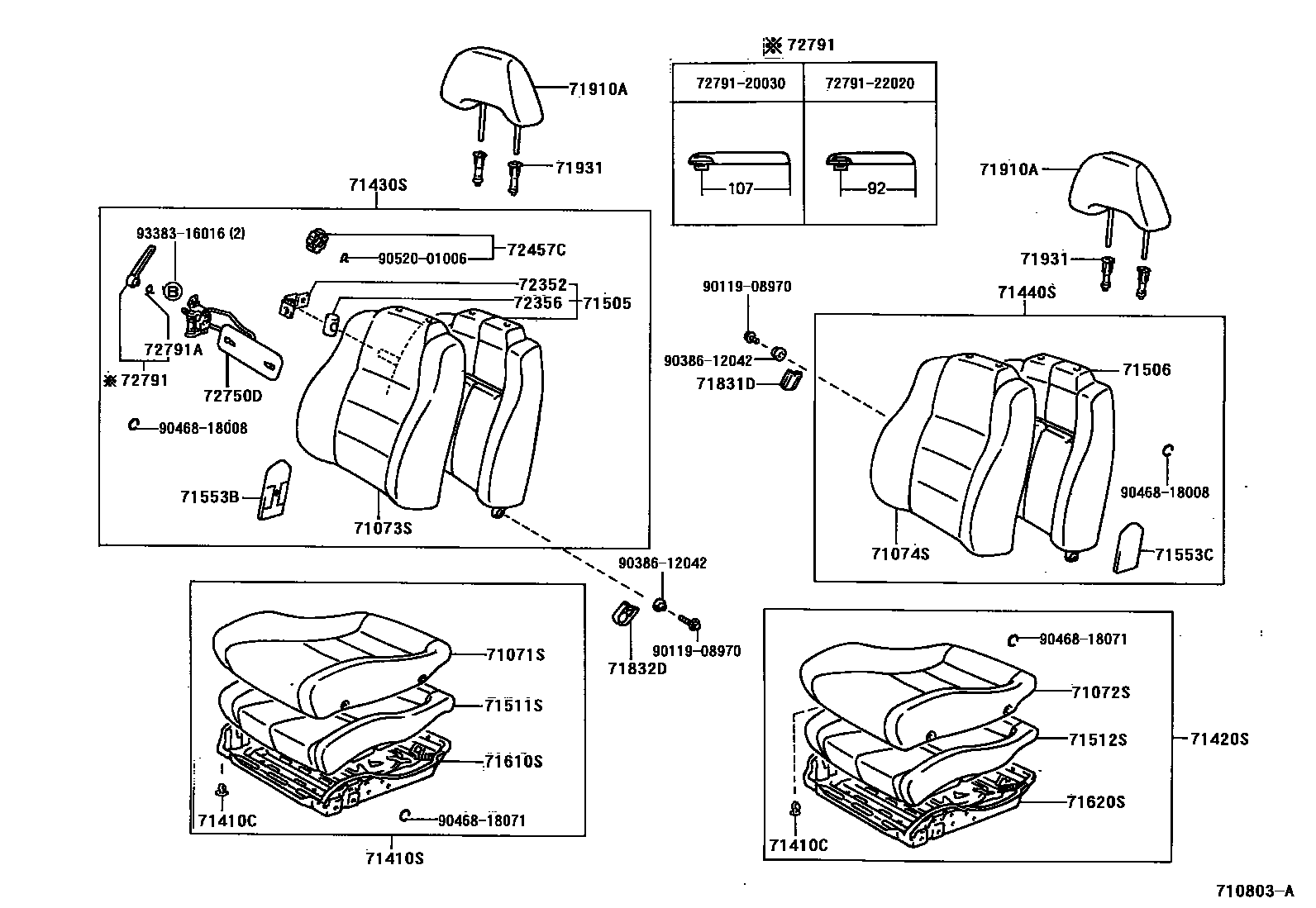

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-17170-01i198912-199112
BLACK,TRIM2#
main71071-17170-04i198912-199112
DARK BLUE,TRIM8#
main71071-17171-C0i199112-199311
BLACK,TRIM2#
main71071-17172-C1i199311-199503
BLACK,TRIM2#
main71071-17172-C2i199503-199712
BLACK,TRIM2#
main71071-17172-J0i199601
main71071-17173-C3i199712
BLACK,TRIM2#
main71071-17190-01i198912-199112
main71071-17190-04i198912-199112
main71071-17191-C0i199112-199311
main71071-17192-C1i199311-199503
main71071-17192-C3i199503-199712
main71071-17193-C4i199712
main71071-17210-01i198912-199112
BLACK,TRIM2#
main71071-17211-C0i199112-199311
BLACK,TRIM2#
main71071-17211-C1i199311-199712
BLACK,TRIM2#
main71071-17212-D0i199712
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-17170-01i198912-199112
BLACK,TRIM2#
main71072-17170-04i198912-199112
DARK BLUE,TRIM8#
main71072-17171-C0i199112-199311
BLACK,TRIM2#
main71072-17172-C1i199311-199503
BLACK,TRIM2#
main71072-17172-C2i199503-199712
BLACK,TRIM2#
main71072-17172-J0i199601
main71072-17173-C3i199712
BLACK,TRIM2#
main71072-17190-01i198912-199112
main71072-17190-04i198912-199112
main71072-17191-C0i199112-199311
main71072-17192-C1i199311-199503
main71072-17192-C3i199503-199712
main71072-17193-C4i199712
main71072-17210-01i198912-199112
BLACK,TRIM2#
main71072-17211-C0i199112-199311
BLACK,TRIM2#
main71072-17211-C1i199311-199712
BLACK,TRIM2#
main71072-17212-D0i199712
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-17230-03i198912-199101
BLACK,TRIM2#
main71073-17230-04i198912-199101
DARK BLUE,TRIM8#
main71073-17240-01i199101-199112
BLACK,TRIM2#
main71073-17240-04i199101-199112
DARK BLUE,TRIM8#
main71073-17241-C0i199112-199311
BLACK,TRIM2#
main71073-17242-C1i199311-199503
BLACK,TRIM2#
main71073-17242-C2i199503-199712
BLACK,TRIM2#
main71073-17242-J1i199601
main71073-17243-C3i199712
BLACK,TRIM2#
main71073-17250-01i198912-199112
main71073-17250-04i198912-199112
main71073-17251-C0i199112-199311
main71073-17252-C1i199311-199503
main71073-17252-C3i199503-199712
main71073-17253-C4i199712
main71073-17270-01i199104-199106
main71073-17271-C0i199112-199311
BLACK,TRIM2#
main71073-17272-C1i199311-199712
BLACK,TRIM2#
main71073-17273-D0i199712
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-17230-01i198912-199001
BLACK,TRIM2#
main71074-17230-04i198912-199001
DARK BLUE,TRIM8#
main71074-17240-01i199101-199112
BLACK,TRIM2#
main71074-17240-04i199101-199112
DARK BLUE,TRIM8#
main71074-17241-C0i199112-199311
BLACK,TRIM2#
main71074-17242-C1i199311-199503
BLACK,TRIM2#
main71074-17242-C2i199503-199712
BLACK,TRIM2#
main71074-17242-J1i199601
main71074-17243-C3i199712
main71074-17250-01i198912-199112
main71074-17250-04i198912-199112
main71074-17251-C0i199112-199311
main71074-17252-C1i199311-199503
main71074-17252-C3i199503-199712
main71074-17253-C4i199712
main71074-17270-01i198912-199112
BLACK,TRIM2#
main71074-17271-C0i199112-199311
BLACK,TRIM2#
main71074-17271-C1i199311-199712
BLACK,TRIM2#
main71074-17272-C4i199712
71410CCLIP(FOR FRONT SEAT CUSHION)
main90467-10016-01×6i199007-199112
BLACK,TRIM2#; BLACK,TRIM2#,8#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-17140-C0i199112-199311
main71410-17140-C1i199311-199606
main71410-17210-01i198912-199112
***,BLACK,TRIM2#
main71410-17210-04i198912-199112
***,DARK BLUE,TRIM8#
main71410-17211-C0i199112-199311
***,BLACK,TRIM2#
main71410-17212-C1i199311-199712
***,BLACK,TRIM2#
main71410-17212-J0i199601
main71410-17213-C1i199712
main71410-17230-01i198912-199112
main71410-17230-04i198912-199112
main71410-17231-C0i199112-199311
main71410-17232-C1i199311-199712
main71410-17233-C1i199712
main71410-17250-01i198912-199112
***,BLACK,TRIM2#
main71410-17251-C0i199112-199311
***,BLACK,TRIM2#
main71410-17251-C1i199311-199712
***,BLACK,TRIM2#
main71410-17252-C1i199712
main71410-17280-C0i199606
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-17140-C0i199112-199311
main71420-17140-C1i199311-199606
main71420-17210-01i198912-199112
***,BLACK,TRIM2#
main71420-17210-04i198912-199112
***,DARK BLUE,TRIM8#
main71420-17211-C0i199112-199311
***,BLACK,TRIM2#
main71420-17212-C1i199311-199712
***,BLACK,TRIM2#
main71420-17212-J0i199601
main71420-17213-C1i199712
main71420-17230-01i198912-199112
main71420-17230-04i198912-199112
main71420-17231-C0i199112-199311
main71420-17232-C1i199311-199712
main71420-17233-C1i199712
main71420-17250-01i198912-199112
***,BLACK,TRIM2#
main71420-17251-C0i199112-199311
***,BLACK,TRIM2#
main71420-17251-C1i199311-199712
***,BLACK,TRIM2#
main71420-17252-C1i199712
main71420-17280-C0i199606
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-17300-01i198912-199101
***,BLACK,TRIM2#
main71430-17300-04i198912-199101
***,DARK BLUE,TRIM8#
main71430-17310-01i199101-199112
***,BLACK,TRIM2#
main71430-17310-04i199101-199112
***,DARK BLUE,TRIM8#
main71430-17311-C0i199112-199311
***,BLACK,TRIM2#
main71430-17312-C2i199311-199712
***,BLACK,TRIM2#
main71430-17312-J0i199601
main71430-17313-C2i199712
main71430-17320-01i198912-199112
main71430-17320-04i198912-199112
main71430-17321-C0i199112-199311
main71430-17322-C2i199311-199712
main71430-17323-C2i199712
main71430-17340-01i198912-199112
***,BLACK,TRIM2#
main71430-17341-C0i199112-199311
***,BLACK,TRIM2#
main71430-17342-C2i199311-199712
***,BLACK,TRIM2#
main71430-17343-C2i199712
main71430-17380-C0i199112-199311
main71430-17380-C1i199311-199606
main71430-1D390-C4i199606
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-17300-01i198912-199101
***,BLACK,TRIM2#
main71440-17300-04i198912-199101
***,DARK BLUE,TRIM8#
main71440-17310-01i199101-199112
***,BLACK,TRIM2#
main71440-17310-04i199101-199112
***,DARK BLUE,TRIM8#
main71440-17311-C0i199112-199311
***,BLACK,TRIM2#
main71440-17312-C2i199311-199712
***,BLACK,TRIM2#
main71440-17312-J0i199601
main71440-17313-C2i199712
main71440-17320-01i198912-199112
main71440-17320-04i198912-199112
main71440-17321-C0i199112-199311
main71440-17322-C1i199311-199712
main71440-17323-C1i199712
main71440-17340-01i198912-199112
***,BLACK,TRIM2#
main71440-17341-C0i199112-199311
***,BLACK,TRIM2#
main71440-17341-C1i199311-199712
***,BLACK,TRIM2#
main71440-17342-C1i199712
main71440-17370-C0i199112-199311
main71440-17370-C1i199311-199606
main71440-1D410-C4i199606
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-17060i198912-199101
main71505-17070i199101-199112
main71505-17071i199112
main71505-17080i198912-199112
main71505-17081i199112-199311
main71505-17082i199311
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-17060i198912-199101
main71506-17070i199101-199112
main71506-17071i199112
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-17080i198912-199112
main71511-17081i199112
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-17090i198912-199112
main71512-17091i199112
71553BPAD, FRONT SEATBACK, B
main71553-17010i198912-199112
main71553-17020i198912
71553CPAD, FRONT SEATBACK, C
main71553-17020i198912
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-17030i199112
main71610-20470i198912-199112
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-17030i199112
main71610-20470i198912-199112
71831DCOVER, FRONT SEAT HINGE, RH
main71831-16010i199212
main71831-17010i198912-199212
71832DCOVER, FRONT SEAT HINGE, LH
main71831-16010i199212
main71831-17010i198912-199212
71910AHEADREST ASSY, FRONT SEAT
main71910-17100-01×2i199112-199311
main71910-17100-C1×2i199311-199606
main71910-17110-01×2i198912-199311
main71910-17110-04×2i198912-199112
main71910-17111-C0×2i199311
main71910-17120-01×2i199104-199106
main71910-17120-C0×2i199311-199712
BLACK,TRIM2#
main71910-17121-C0×2i199712
main71910-17140-01×2i198912-199311
BLACK,TRIM2#
main71910-17140-04×2i198912-199112
DARK BLUE,TRIM8#
main71910-17141-C0×2i199311
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-17020-01×2i198912-199311
main71930-17020-04×2i198912-199112
main71930-17020-C0×2i199311-199712
main71930-17021-C0×2i199712
main71931-17010-01×2i198912-199311
main71931-17010-04×2i198912-199112
main71931-17010-C0×2i199311
72352PLATE, SIDE SUPPORT HANDLE SHAFT SET
main72352-20010i199112
72356NUT, SIDE SUPPORT, RH
main72356-20010i199112
72457KNOB, VERTICAL SEAT ADJUSTER
main72457-22020-01i198912-199311
BLACK,TRIM2#
main72457-22020-14i198912-199112
DARK BLUE,TRIM8#
main72457-22020-C0i199311
BLACK,TRIM2#
72457CKNOB, SIDE SUPPORT ADJUSTER
main72457-22020-01i198912-199311
BLACK,TRIM2#
main72457-22020-14i198912-199112
DARK BLUE,TRIM8#
main72457-22020-C0i199311
BLACK,TRIM2#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-17020i198912
72791LEVER, LUMBAR SUPPORT
main72791-20030-01i198912-199103
main72791-20030-14i198912-199103
main72791-22020-11i199103-199311
main72791-22020-C0i199311
main72791-22020-J0i199103-199112
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01002i199112-199311
main90520-01274i198912-199112
7279120030LEVER, LUMBAR SUPPORT
main72791-20030
7279122020LEVER, LUMBAR SUPPORT
main72791-22020
9011908970
main90119-08970
9038612042
main90386-12042
9046818008
main90468-18008
9046818071
main90468-18071
9052001006
main90520-01006
9338316016
main93383-16016

36 parts on this diagram · 5 diagrams in section
