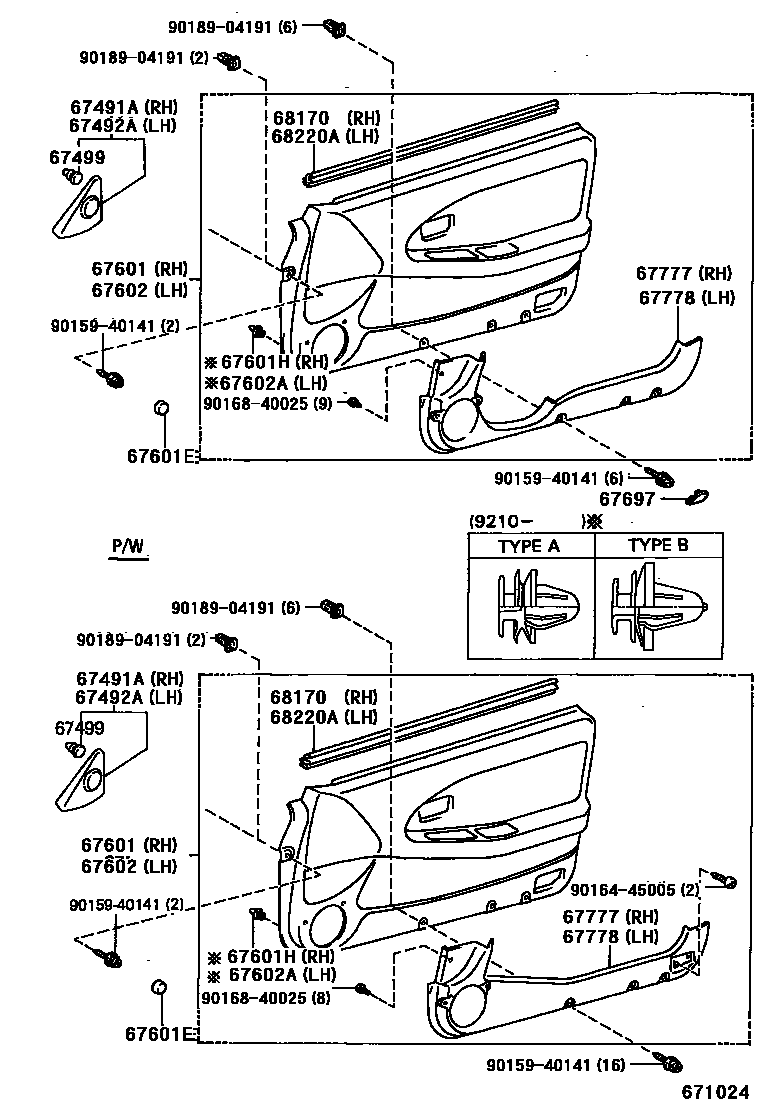

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,TRIM2#
BLACK,TRIM2#
sub67610-17432
sub67610-17432
sub67610-17433
sub67610-17380
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
DARK BLUE,TRIM8#
67601ECAP(FOR FRONT DOOR TRIM BOARD)
67601HRETAINER, DOOR TRIM, RH
FOR BOARD
FOR POCKET
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
DARK BLUE,TRIM8#
sub67620-17350
BLACK,TRIM2#
BLACK,TRIM2#
67602ARETAINER, DOOR TRIM, LH
FOR BOARD
FOR POCKET
67697COVER, FRONT DOOR TRIM POCKET
67777POCKET, FRONT DOOR TRIM, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
67778POCKET, FRONT DOOR TRIM, LH
sub67780-17030
sub67780-17030
sub67780-17030
sub67780-17030
BLACK,TRIM2#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
9015940141
main90159-40141
9016445005
main90164-45005
9016840025
main90168-40025
9018904191
main90189-04191
17 parts on this diagram · 7 diagrams in section
