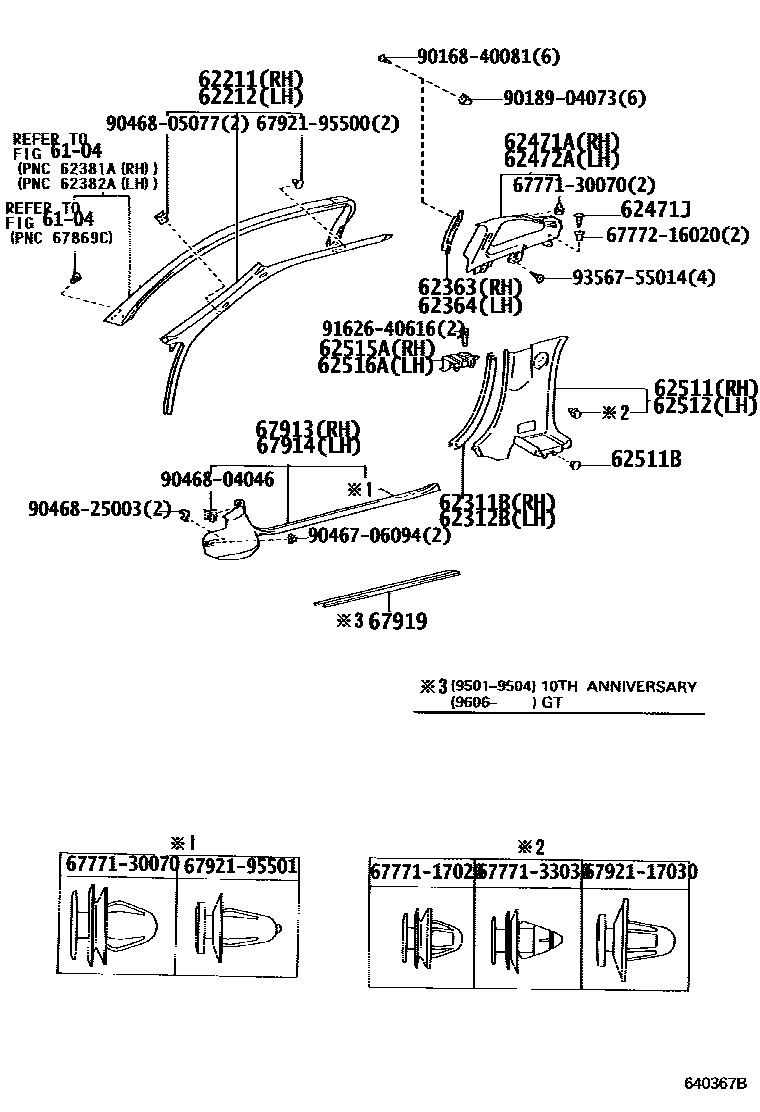

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

62211GARNISH, FRONT PILLAR, RH

main62211-17040-01iSW20..CP198912-199311

BLACK,TRIM2#

main62211-17040-04iSW20..CP..G198912-199112

DARK BLUE,TRIM8#

main62211-17040-22iSW20..CP199311

BLACK,TRIM2#

main62211-17060-01iSW20..TBR198912-199311

BLACK,TRIM2#

main62211-17060-04iSW20..TBR..G198912-199112

DARK BLUE,TRIM8#

main62211-17060-22iSW20..TBR199311

BLACK,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62212-17040-01iSW20..CP198912-199311

BLACK,TRIM2#

main62212-17040-04iSW20..CP..G198912-199112

DARK BLUE,TRIM8#

main62212-17040-22iSW20..CP199311

BLACK,TRIM2#

main62212-17060-01iSW20..TBR198912-199311

BLACK,TRIM2#

main62212-17060-04iSW20..TBR..G198912-199112

DARK BLUE,TRIM8#

main62212-17060-22iSW20..TBR199311

BLACK,TRIM2#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-17010iSW20198912

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62311-17010iSW20198912

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62371-17030iSW20198912

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62372-17030iSW20198912

62471AGARNISH, ROOF SIDE, INNER RH

main62471-17030-01iSW20..CP198912-199211

BLACK,TRIM2#

main62471-17030-04iSW20..CP..G198912-199112

DARK BLUE,TRIM8#

main62471-17031-22iSW20..CP199211-199511

BLACK,TRIM2#

main62471-17040-01iSW20..TBR198912-199211

BLACK,TRIM2#

main62471-17040-04iSW20..TBR..G198912-199112

DARK BLUE,TRIM8#

main62471-17041-22iSW20..TBR199211-199511

BLACK,TRIM2#

main62471-17050-C0iSW20..CP199511

BLACK,TRIM2#

main62471-17060-C0iSW20..TBR199511

BLACK,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-07041-11×2iSW20..G; SW20..GT198912-199112

BLACK,TRIM2#; BLACK,TRIM2#,8#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-17030-01iSW20..CP198912-199211

BLACK,TRIM2#

main62472-17030-04iSW20..CP..G198912-199112

DARK BLUE,TRIM8#

main62472-17031-22iSW20..CP199211-199511

BLACK,TRIM2#

main62472-17040-01iSW20..TBR198912-199211

BLACK,TRIM2#

main62472-17040-04iSW20..TBR..G198912-199112

DARK BLUE,TRIM8#

main62472-17041-22iSW20..TBR199211-199511

BLACK,TRIM2#

main62472-17050-C0iSW20..CP199511

BLACK,TRIM2#

main62472-17060-C0iSW20..TBR199511

BLACK,TRIM2#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-17010-C0iSW20199311

BLACK,TRIM2#

main62511-17070-01iSW20198912-199311

BLACK,TRIM2#

main62511-17070-04iSW20..G198912-199112

DARK BLUE,TRIM8#

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-07041-11×4iSW20..G; SW20..GT198912-199112

BLACK,TRIM2#; BLACK,TRIM2#,8#

main90467-07041-C0×4iSW20199202

BLACK,TRIM2#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-17030-01iSW20198912-199311

BLACK,TRIM2#

main62512-17030-04iSW20..G198912-199112

DARK BLUE,TRIM8#

main62512-17060-C0iSW20199311

BLACK,TRIM2#

62515ABASE, QUARTER TRIM, RH

main62515-17010iSW20198912

62516ABASE, QUARTER TRIM, LH

main62516-17010iSW20198912

67913PLATE, FRONT DOOR SCUFF, RH

main67913-17020-C0iSW20..GT199606

BLACK,TRIM2#

main67913-17030-01iSW20198912-199311

BLACK,TRIM2#

main67913-17030-04iSW20..G198912-199112

DARK BLUE,TRIM8#

main67913-17030-22iSW20..G199606

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-17030-01iSW20198912-199311

BLACK,TRIM2#

main67914-17030-04iSW20..G198912-199112

DARK BLUE,TRIM8#

main67914-17030-22iSW20..G199606

BLACK,TRIM2#

main67914-17050-C0iSW20..CP..G199501-199504

10TH ANNIVERSARY,BLACK,TRIM2#

67919ORNAMENT, DOOR SCUFF

main67919-17010×2iSW20..CP..G199501-199504

10TH ANNIVERSARY,TRIM2#

6777117020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-17020

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

6777216020WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-16020

6792117030RETAINER, FRONT DOOR SCUFF PLATE

main67921-17030

6792195500RETAINER, FRONT DOOR SCUFF PLATE

main67921-95500

6792195501RETAINER, FRONT DOOR SCUFF PLATE

main67921-95501

9016840081

main90168-40081

9018904073

main90189-04073

9046706094

main90467-06094

9046804046

main90468-04046

9046805077

main90468-05077

9046825003

main90468-25003

9162640616

main91626-40616

9356755014

main93567-55014

33 parts on this diagram · 2 diagrams in section
