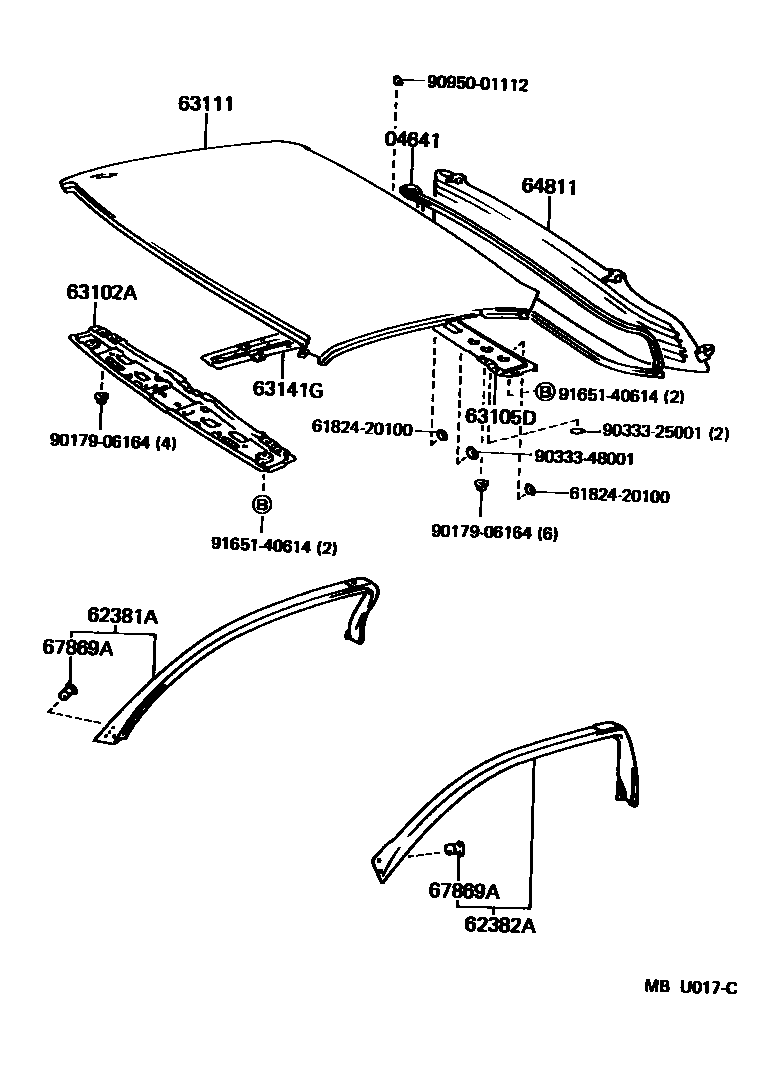

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iSW20198912

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-17040iSW20..CP198912-199106

main62381-17041iSW20..CP199106-199309

main62381-17042iSW20..CP199309

main62381-17050iSW20..TBR198912-199106

main62381-17051iSW20..TBR199106

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-17040iSW20..CP198912-199106

main62382-17041iSW20..CP199106-199309

main62382-17042iSW20..CP199309

main62382-17050iSW20..TBR198912-199106

main62382-17051iSW20..TBR199106

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-17020iSW20..CP198912

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-17010iSW20198912

63111PANEL, ROOF

main63111-17080iSW20..CP198912

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-17030iSW20..CP198912

64811GLASS, BACK WINDOW

main64811-17040iSW20..G198912-199112

main64811-17040iSW20..G198912-199112

main64811-17100iSW20..GT198912-199311

main64811-17100iSW20..GT198912-199112

main64811-17101iSW20199311-199606

main64811-17120iSW20..G198912-199112

main64811-17120iSW20..G198912-199112

main64811-17130iSW20198912-199311

main64811-17131iSW20199311-199606

main64811-17160iSW20199606

main64811-17180iSW20199606

67869ACLIP(FOR REMOVABLE ROOF WEATHERSTRIP)

main67869-20030iSW20198912

6182420100PLATE, NOISE CONTROL, NO.1

main61824-20100

9017906164

main90179-06164

9033325001

main90333-25001

9033348001

main90333-48001

9095001112

main90950-01112

9165140614

main91651-40614

15 parts on this diagram · 3 diagrams in section
