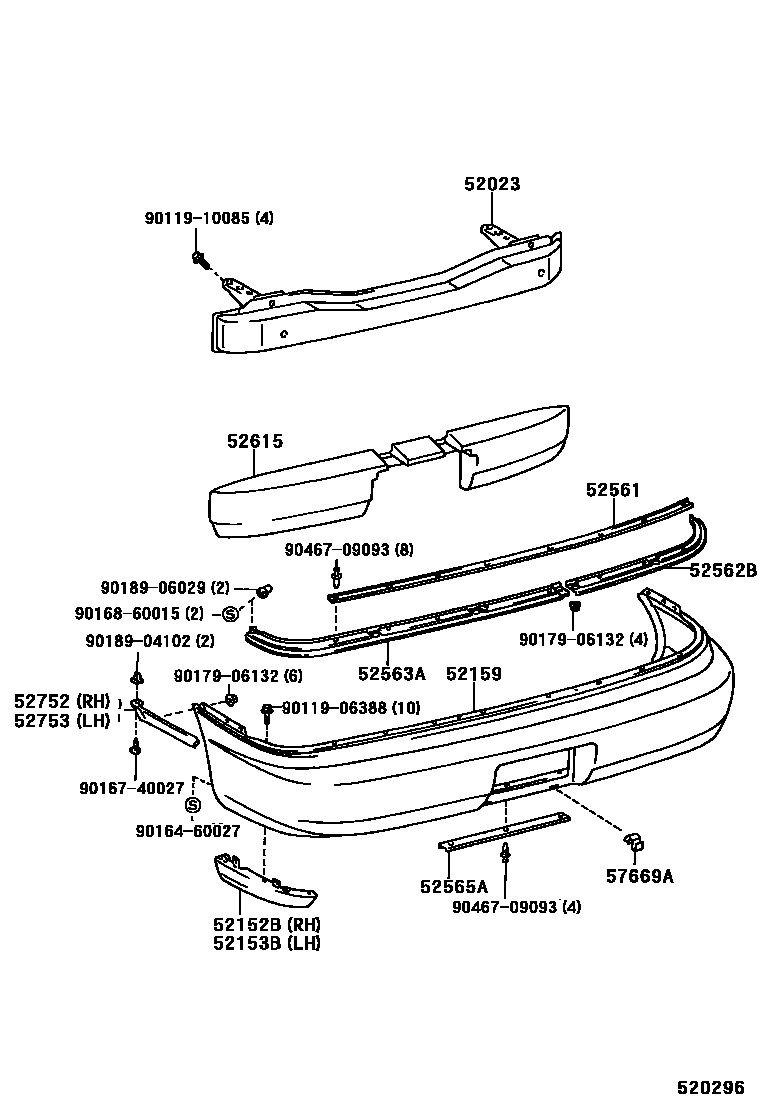

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
SUPER WHITE 2,040
BL.GRAY AMC,187
BLACK,202
SUPER RED 2,3E5
ORANGE M.M.,3L1
BEIGE M.M.,4N3
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
DK.PURPLE MC.,943
52153BEXTENSION, REAR BUMPER, LH
SUPER WHITE 2,040
BL.GRAY AMC,187
SILVER ME,2CE
BLACK,202
SUPER RED 2,3E5
ORANGE M.M.,3L1
BEIGE M.M.,4N3
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
DK.PURPLE MC.,943
52159COVER, REAR BUMPER
BLACK,202
SUPER RED 3,3J6
BLUEISH GRY ARGENTUM,187
DARK TURQUOISE MICA,742
SUPER WHITE 3,043
SUPER BRIGHT YELLOW,567
CRYSTAL PEARL MICA 2,047
SUPER WHITE 2,040
BL.GRAY AMC,187
10TH ANNIVERSARY,SILVER ME,199
BLACK,202
SUPER RED 2,3E5
ORANGE M.M.,3L1
BEIGE M.M.,4N3
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
TURQUOISE M.M.,746
MEDIUM BLUE M.M.,8J2
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
DK.PURPLE MC.,943
52561RETAINER, REAR BUMPER, UPPER CENTER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52565ARETAINER, REAR BUMPER, LOWER
52615ABSORBER, REAR BUMPER ENERGY
52752MOULDING, REAR BUMPER SIDE, RH
LIGHT SILVER M.,040
DARK GRAY M,187 ,202
SUPER WHITE 2,040
BL.GRAY AMC,187
BLACK,2CE ,202
MAROON M.,3E5
SUPER RED 2,3E5
ORANGE M.M.,3L1
GOLD MICA M.,567
BEIGE M.M.,4N3
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
TURQUOISE MICA M.,746
BLUE M,8J2
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
DK.PURPLE MC.,943
52753MOULDING, REAR BUMPER SIDE, LH
LIGHT SILVER M.,040
DARK GRAY M,187 ,202
SUPER WHITE 2,040
BL.GRAY AMC,187
BLACK,2CE ,202
MAROON M.,3E5
SUPER RED 2,3E5
ORANGE M.M.,3L1
GOLD MICA M.,567
BEIGE M.M.,4N3
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
TURQUOISE MICA M.,746
BLUE M.,8J2
SPIDER,STRONG BLUE M,199
PURPLISH BLUE M.M.,8K9
DK.PURPLE MC.,943
57669ABRACKET, REAR LICENSE PLATE SUPPORT
9011906388
main90119-06388
9011910085
main90119-10085
9016460027
main90164-60027
9016740027
main90167-40027
9016860015
main90168-60015
9017906132
main90179-06132
9018904102
main90189-04102
9018906029
main90189-06029
9046709093
main90467-09093
21 parts on this diagram · 1 diagram in section
