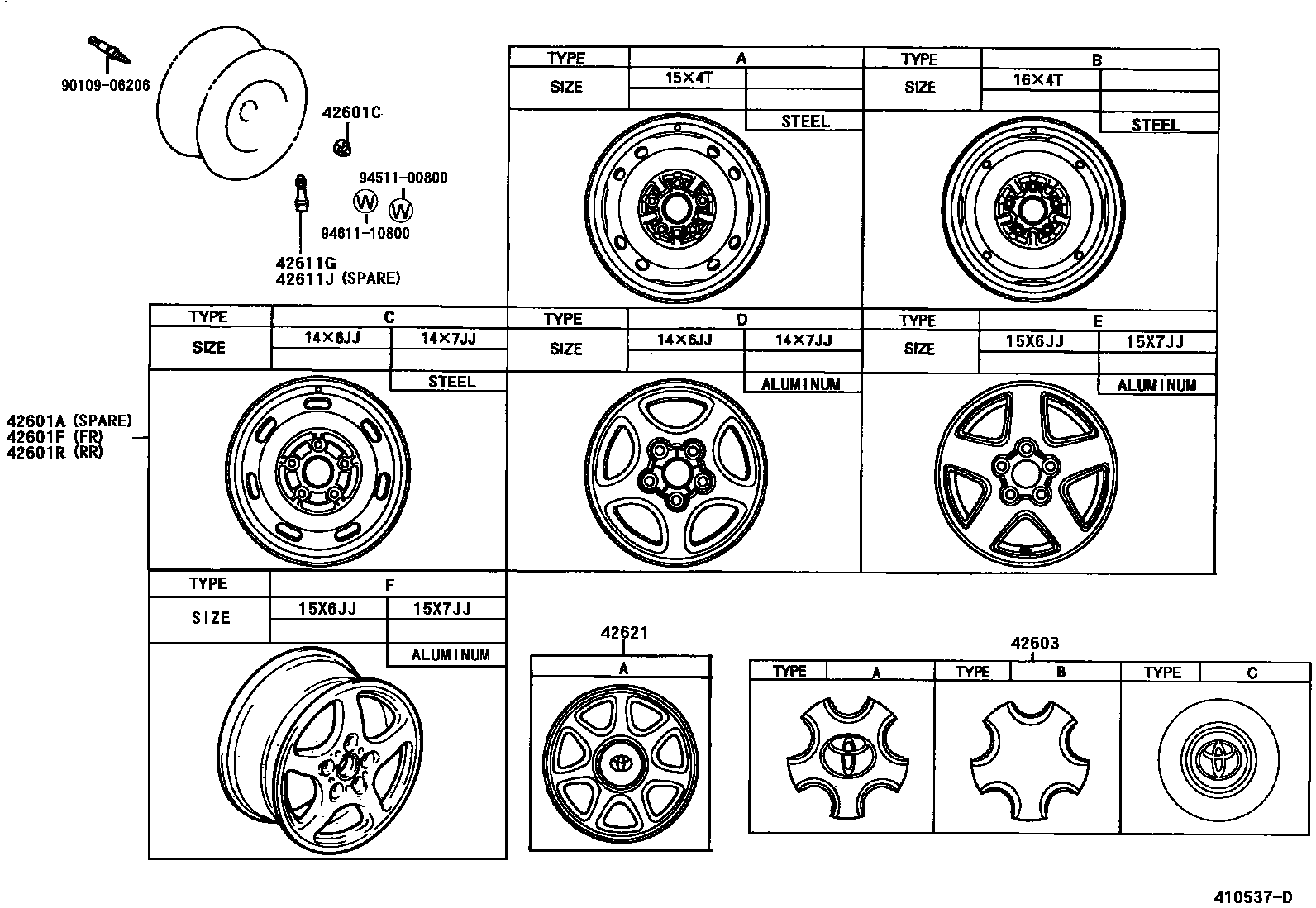

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42611-17130iSW20198912-199112

main42611-28210iSW20199112

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iSW20..G198912-199112

main90942-01033×10iSW20199712

main90942-01050×10iSW20..G; SW20..GT198912-199112

main90942-01058×10iSW20..G; SW20..GT198912-199112

main90942-01084×10iSW20199112-199712

main90942-01088×10iSW20199112-199712

42601FWHEEL, DISC (FOR FRONT)

main42611-17090-01×2iSW20..G198912-199008

main42611-17110×2iSW20..G; SW20..GT198912-199112

main42611-17160×2iSW20199112-199606

main42611-17180×2iSW20..CP..G199501-199504

main42611-17200×2iSW20199606-199712

main42611-17240×2iSW20199712

42601RWHEEL, DISC (FOR REAR)

main42611-17120×2iSW20..G; SW20..GT198912-199112

main42611-17150-01×2iSW20..G198912-199112

main42611-17170×2iSW20199112-199606

main42611-17190×2iSW20..CP..G199501-199504

main42611-17210×2iSW20199606-199712

main42611-17250×2iSW20199712

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-17040×4iSW20198912-199112

main42603-17050×4iSW20199112-199606

main42603-17060×4iSW20..CP..G199501-199504

main42603-17070×4iSW20199606-199712

main42603-17090×4iSW20199712

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iSW20..G; SW20..GT198912-199112

main90942-05009×4iSW20..G198912-199112

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iSW20198912

42621CAP, WHEEL

main42621-17010×4iSW20..G198912-199112

9010906206

main90109-06206

9451100800

main94511-00800

9461110800

main94611-10800

11 parts on this diagram · 2 diagrams in section
