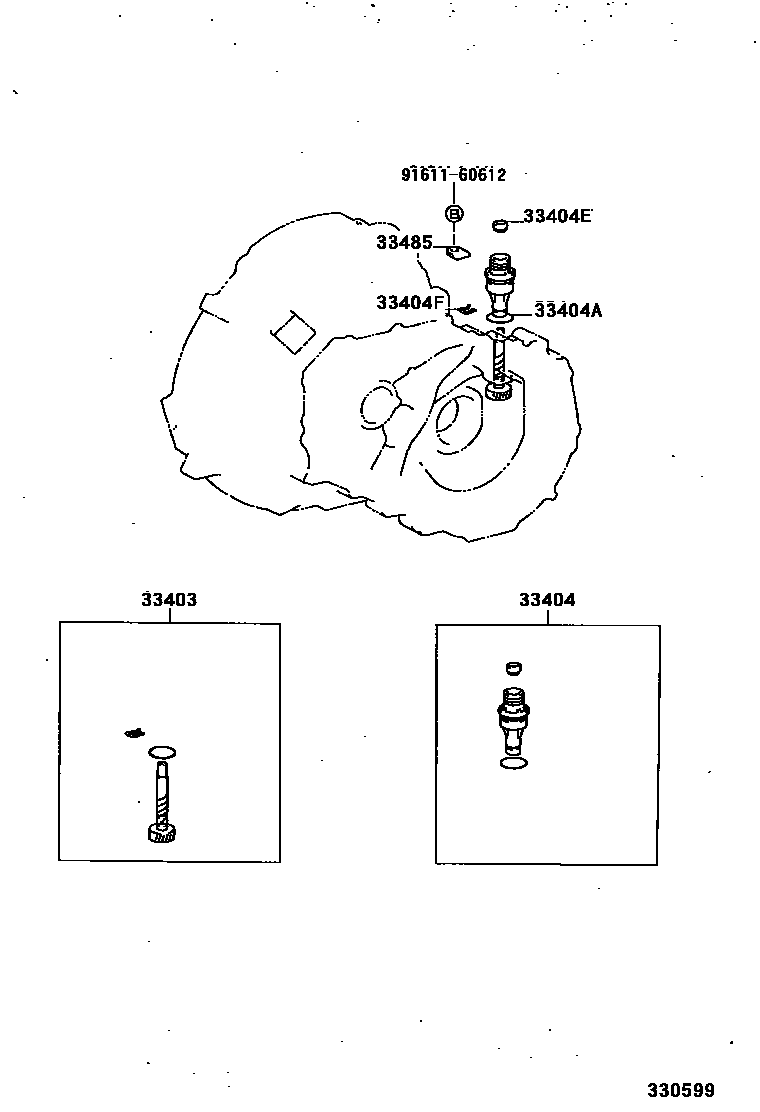

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1S54 0002 1S54 0003 1E153 0004 1E153

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19405iSW20..GT198912-199102

main33403-19406iSW20..GT199102-199112

main33403-19475iSW20..GT199112-199204

main33403-19476iSW20..GT199204-199908

main33403-19495iSW20..5F..G199112-199908

main33403-39085iSW20..5F..G198912-199112

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iSW20..5F..G198912-199112

main33404-17010iSW20..GT198912-199112

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iSW20..5F..G198912-199112

main96721-24030iSW20..GT198912-199112

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iSW20..5F..G198912-199112

main90310-09003iSW20..GT198912-199112

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iSW20..5F198912

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iSW20..5F..G198912-199112

9161160612

main91611-60612

7 parts on this diagram · 4 diagrams in section
