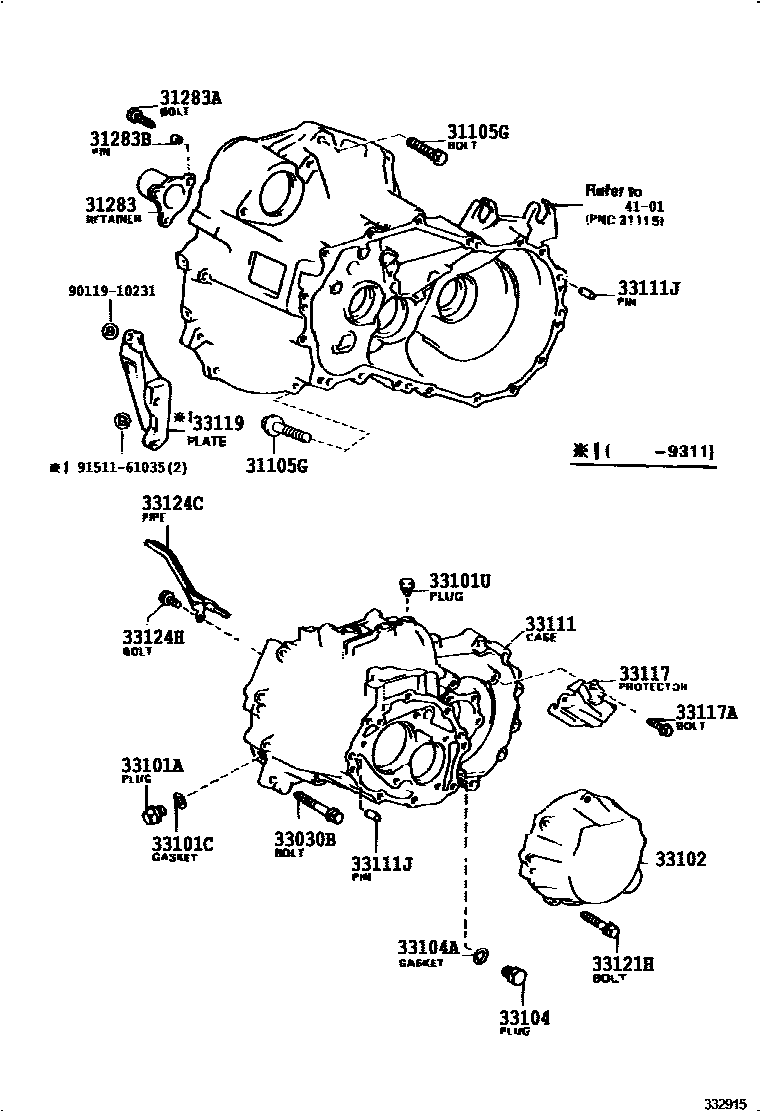

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1S54 0002 1E153

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iSW20..5F198912-199311

main90105-10077iSW20..5F198912

main90119-10231iSW20..5F..G199302-199311

main90119-12168×3iSW20..5F198912

main91651-41022iSW20..5F..G; SW20..GT198912-199311

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iSW20..5F..G198912

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023×3iSW20..5F..G198912

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002×2iSW20..5F..G198912

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042×17iSW20..5F..G198912

main90105-08126×17iSW20..GT198912

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iSW20..5F..G198912-199003

main90341-18006iSW20..5F..G199306

main90341-18033iSW20..5F199003-199306

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iSW20..5F198912

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iSW20..5F..G198912-199106

main90930-03111iSW20..GT198912-199608

main90930-03133iSW20..5F..G199106-199603

main90930-03145iSW20..5F..G199603

main90930-03148iSW20..GT199608

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-20040iSW20..GT198912-199106

main33102-32011iSW20..5F..G198912-199004

main33102-32012iSW20..5F..G199004-199205

main33102-33010iSW20..GT199106

main33102-33020iSW20..5F..G199205

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iSW20..5F198912

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iSW20..5F198912

33111CASE, MANUAL TRANSMISSION

main33101-17030iSW20..GT198912-199106

main33101-17031iSW20..GT199106-199112

main33101-17040iSW20..GT199112

main33111-17030iSW20..5F..G198912-199102

main33111-17050iSW20..5F..G199102-199205

main33111-17070iSW20..5F..G199205-199411

main33111-17071iSW20..5F..G199411-199704

main33111-17080iSW20..5F..G199704

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iSW20..5F198912

main90250-12005×2iSW20..GT198912

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iSW20..GT198912

main33117-32011iSW20..5F..G198912

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iSW20..5F198912

33119PLATE, STIFFENER, LH(MTM)

main33119-17021iSW20..GT198912-199311

main33119-20110iSW20..5F..G198912-199311

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089×8iSW20..5F..G; SW20..GT198912-199011

main90105-08273×10iSW20..5F..G; SW20..GT199011

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20020iSW20..GT198912

main33124-32011iSW20..5F..G198912-199005

main33124-32012iSW20..5F..G199005-199205

main33124-33010iSW20..5F..G199205

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iSW20..GT198912

main91651-60618iSW20..5F..G198912
