TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

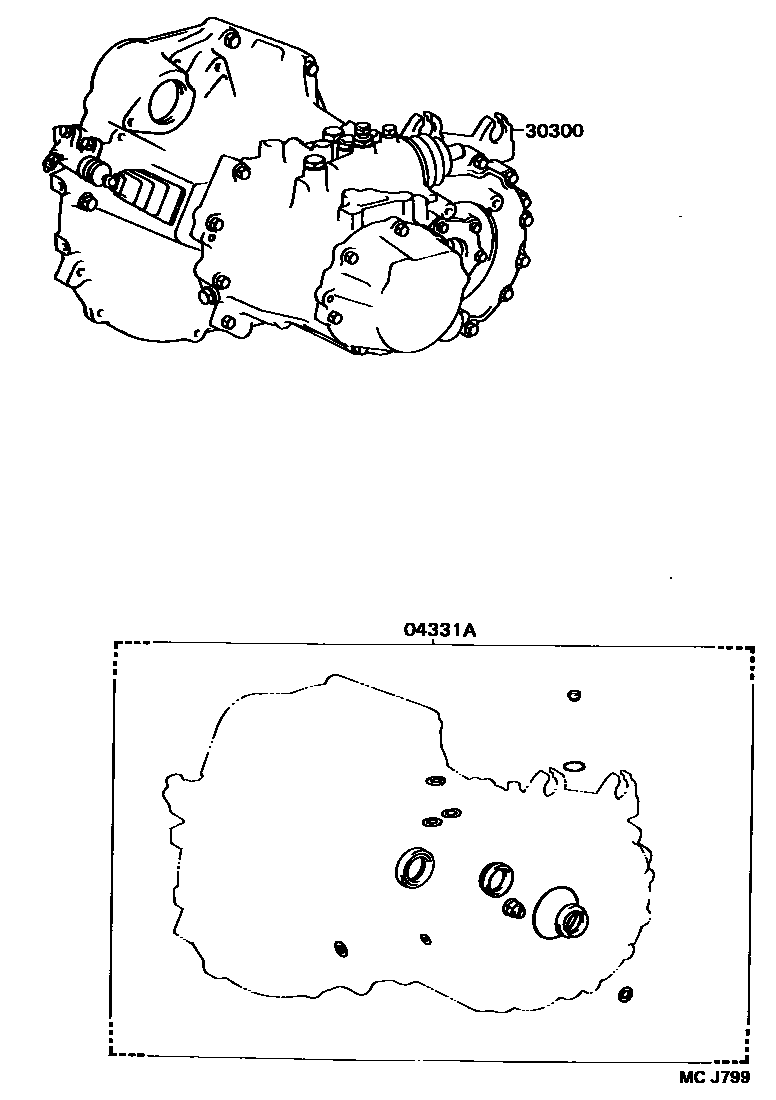

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-17011i198912-199908

main04331-17020i198912-199908

30300TRANSAXLE ASSY, MANUAL

main30300-17060i198912-199005

main30300-17080i198912-199112

main30300-17090i199005-199102

main30300-17091i199102-199201

main30300-17092i199201-199208

main30300-17120i199112-199712

main30300-17121i199712

main30300-17130i199208-199712

main30300-17131i199712

main30300-17150i199606-199712

main30300-17151i199712

2 parts on this diagram · 2 diagrams in section
