Toyota 211110 — CAMSHAFT & VALVE

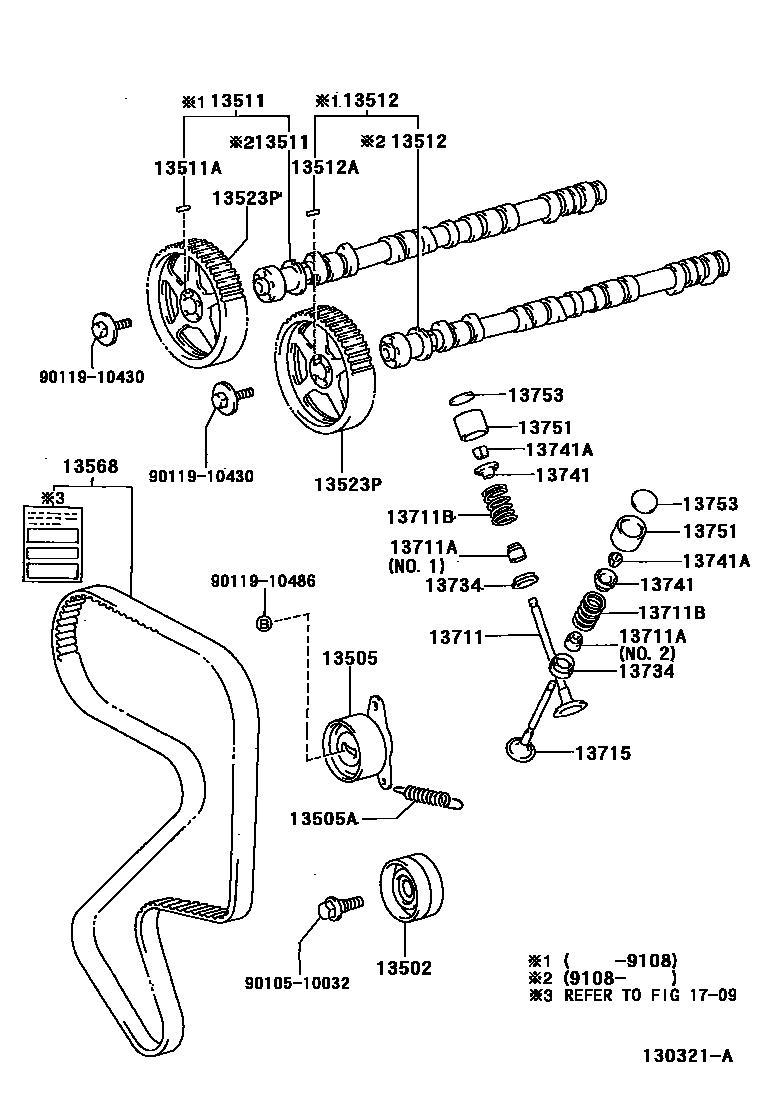

Parts diagram

13502IDLER SUB-ASSY, TIMING BELT, NO.2

13505IDLER SUB-ASSY, TIMING BELT, NO.1

13505ASPRING, TENSION(FOR IDLER)

13511CAMSHAFT

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

13512CAMSHAFT, NO.2

13512APIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK)

13523PPULLEY, CAMSHAFT TIMING

13568BELT, TIMING

13711VALVE, INTAKE

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

13711BSPRING, COMPRESSION(FOR INNER)

13715VALVE, EXHAUST

13734SEAT, VALVE SPRING

13741RETAINER, VALVE SPRING

13741ALOCK, VALVE SPRING RETAINER

13751LIFTER, VALVE

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9010510032

9011910430

9011910486

22 parts on this diagram · 4 diagrams in section

CAMSHAFT & VALVE for Toyota 211110

This section contains 33 genuine Toyota parts for the CAMSHAFT & VALVE system of the Toyota 211110. Key components include: GEAR ASSY, CAMSHAFT TIMING, IDLER SUB-ASSY, TIMING BELT, NO.2, IDLER SUB-ASSY, TIMING BELT, NO.1, SPRING, TENSION(FOR IDLER), CAMSHAFT.
