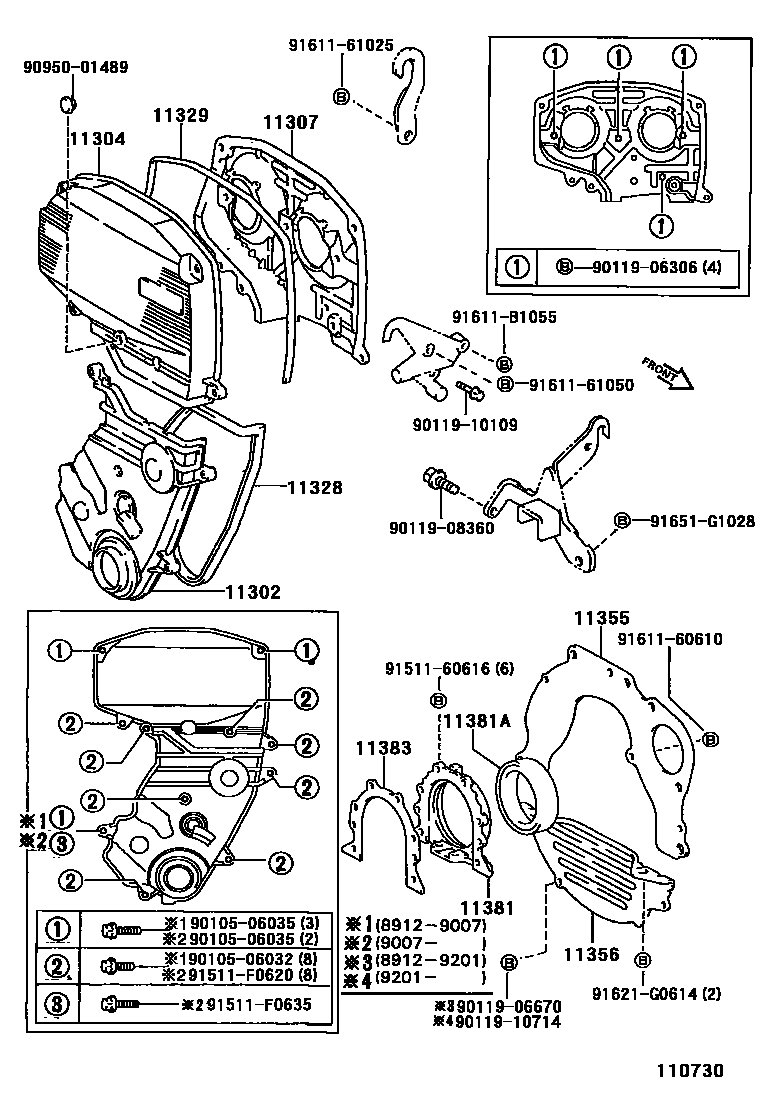

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11304COVER, TIMING CHAIN OR BELT, NO.2
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11328GASKET, TIMING GEAR OR CHAIN COVER
11329GASKET, TIMING GEAR REAR COVER
11356PLATE, REAR END, NO.2
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11383GASKET, ENGINE REAR OIL SEAL RETAINER
9010506032
main90105-06032
9010506035
main90105-06035
9011906306
main90119-06306
9011906670
main90119-06670
9011908360
main90119-08360
9011910109
main90119-10109
9011910714
main90119-10714
9095001489
main90950-01489
9151160616
main91511-60616
91511F0620
main91511-F0620
91511F0635
main91511-F0635
9161160610
main91611-60610
9161161025
main91611-61025
9161161050
main91611-61050
91611B1055
main91611-B1055
91621G0614
main91621-G0614
91651G1028
main91651-G1028
27 parts on this diagram · 5 diagrams in section
