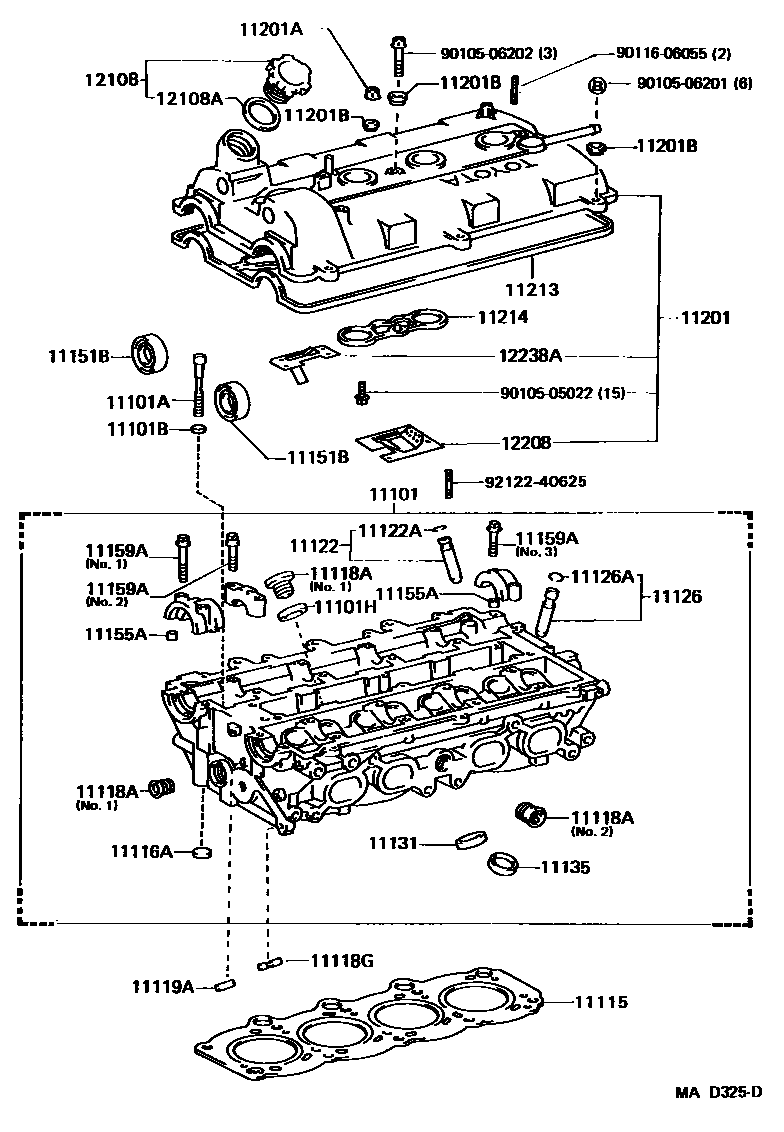

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11118APLUG, STRAIGHT, NO.1
OD=30,NO.1
11118GPIN, SLOTTED SPRING, NO.1
11122BUSH, INTAKE VALVE GUIDE
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12208PLATE SUB-ASSY, VENTILATION BAFFLE
12238APLATE, VENTILATION BAFFLE
9010505022
main90105-05022
9010506201
main90105-06201
9010506202
main90105-06202
9011606055
main90116-06055
9212240625
main92122-40625
32 parts on this diagram · 5 diagrams in section
