ENGINE OVERHAUL GASKET KIT

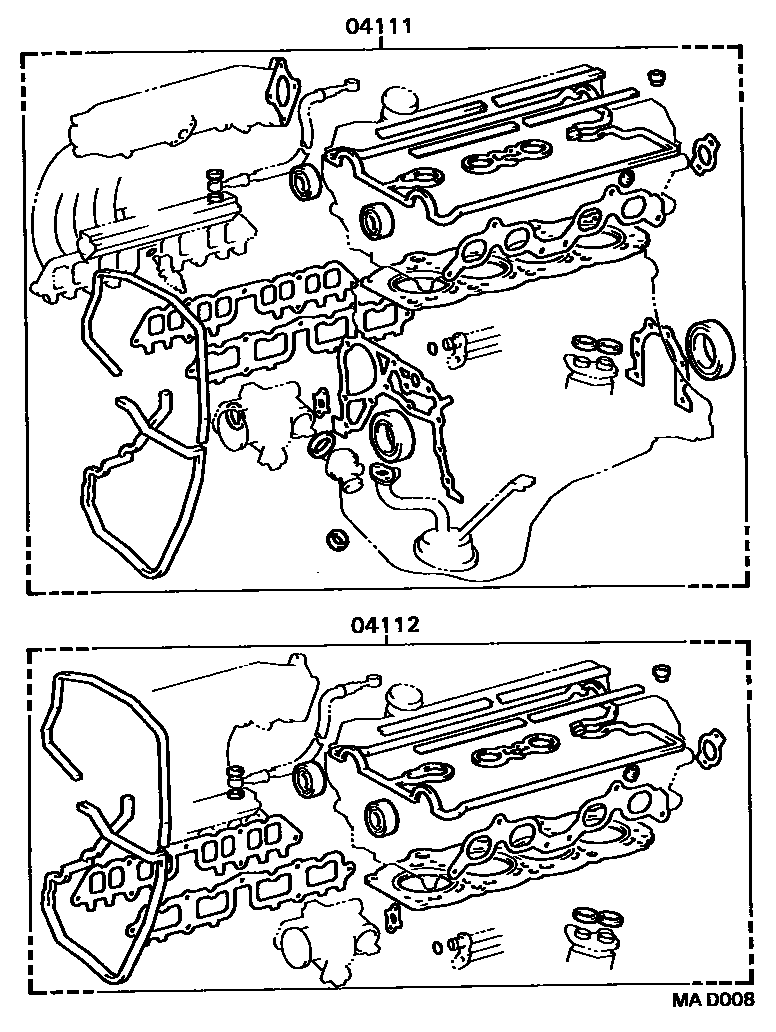

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-74230i198912-199311
main04111-74240i198912-199112
main04111-74400i199112-199311
sub04111-74401
main04111-74550i199311-199702
sub04111-74551
main04111-74551i199702-199712
main04111-74570i199311-199702
sub04111-74571
main04111-74571i199702
main04111-74710i199712
04112GASKET KIT, ENGINE VALVE GRIND
main04112-74230i198912-199311
main04112-74240i198912-199112
main04112-74400i199112-199311
sub04112-74401
main04112-74530i199311-199606
sub04112-74531
main04112-74531i199606-199702
sub04112-74532
main04112-74532i199702-199712
main04112-74540i199311-199702
sub04112-74541
main04112-74541i199702
main04112-74710i199712

2 parts on this diagram · 5 diagrams in section
