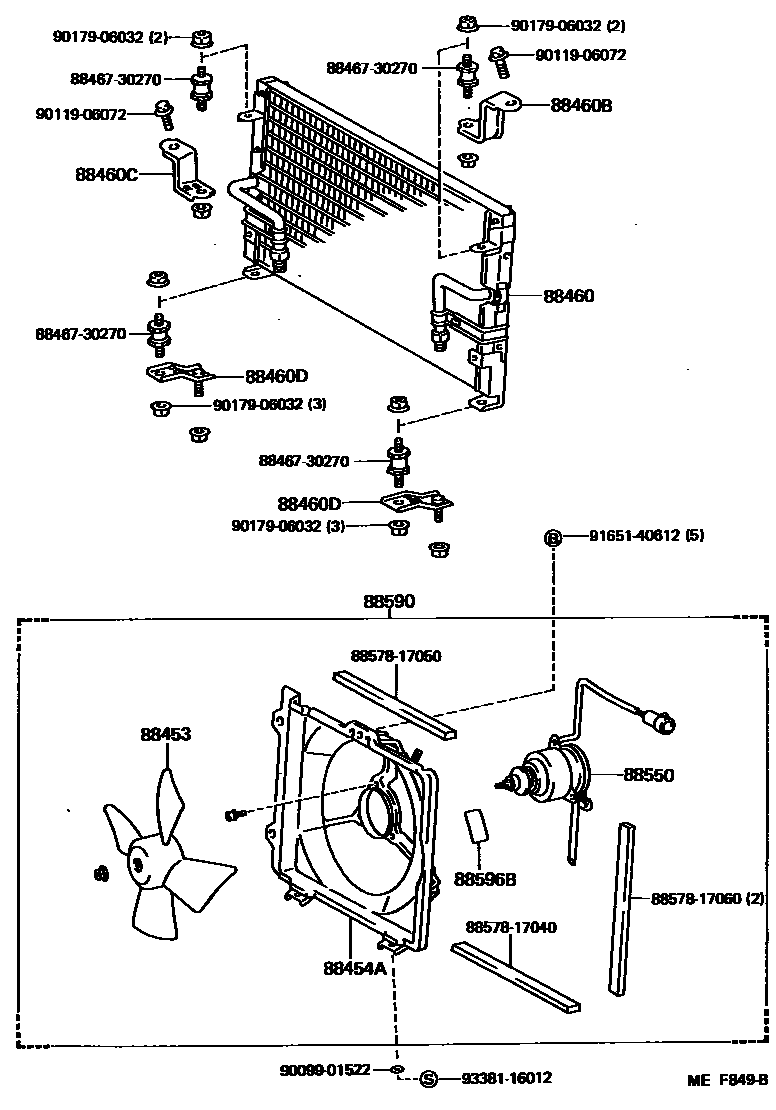

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88453FAN, COOLING (FOR CONDENSER)

main16361-16020iAW10..5F; AW11..5F198803-198912

main16361-16030iAW10..4FC; AW11..4FC198803-198912

88454ASHROUD, FAN

main88590-17030iAW1#..5F198406-198608

main88590-17040iAW1#..4FC198406-198608

main88590-17090iAW10..5F; AW11..5F198803-198912

main88590-17100iAW10..4FC; AW11..4FC198803-198912

88460CONDENSER ASSY, COOLER

main88460-17020iAW1#198406-198608

main88460-17040iAW1#198608-198803

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-17020iAW1#198406-198608

main88688-17190iAW1#198608-198803

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-17010iAW1#198406-198608

main88688-17180iAW1#198608-198803

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-17030×2iAW1#198406-198608

main88688-17200iAW1#198608-198803

RH

main88688-17210iAW10; AW11198803-198912

LH

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-16010iAW10..5F; AW11..5F198803-198912

main16363-16020iAW10..4FC; AW11..4FC198803-198912

88590BLOWER ASSY, W/SHROUD

main88590-17010iAW1#..5F198406-198608

main88590-17020iAW1#..4FC198406-198608

main88590-17070iAW10..5F; AW11..5F198803-198912

main88590-17080iAW10..4FC; AW11..4FC198803-198912

88596BPLATE, CAUTION, NO.1

main88596-14010iAW1#198406-198608

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8857817040PAKING, COOLER AIR DUCT

main88578-17040

8857817050PAKING, COOLER AIR DUCT

main88578-17050

8857817060PAKING, COOLER AIR DUCT

main88578-17060

9009901522

main90099-01522

9011906072

main90119-06072

9017906032

main90179-06032

9165140612

main91651-40612

9338116012

main93381-16012

18 parts on this diagram · 3 diagrams in section
